Sale!
Features & Details
| ⚡ RCD TRIP TIME & CURRENT | Tests trip time up to 1000ms and trip current thresholds across 10mA, 20mA, 30mA, 100mA, 300mA, and 500mA ratings. |
| 🔄 0° & 180° PHASE SELECT | Selectable positive and negative half-cycle start angles ensure comprehensive residual current device response verification. |
| 🛡️ LOOP IMPEDANCE TEST | Measures line loop impedance (RL) and contact voltage (Uc) to verify grounding integrity without tripping standard 30mA breakers. |
| 💾 USB DATA LOGGING | Stores 1000 sets of test records internally with USB connection to PC software for professional electrical safety audit reports. |
About this item
| Feature | Description |
|---|---|
| AC Phase Voltage Measurement | 0V ~ 440V |
| Frequency Measurement | DC, 45Hz ~ 65Hz |
| Test Current Magnification | 0.5, 1, and 5 |
| Current Test Gears (Fast/Slow) | 10mA, 30mA, 100mA, 300mA, 500mA |

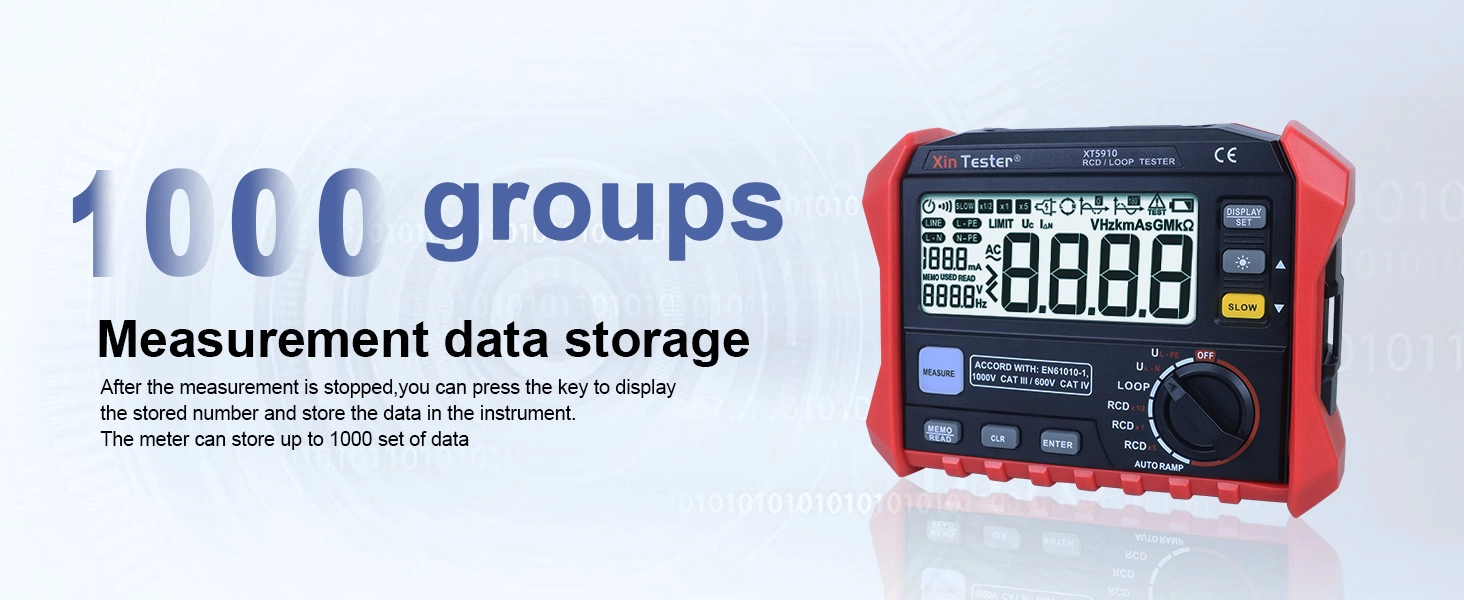

| Data Storage Capacity | Up to 1000 Sets of Data |
| Data Interface | USB 2.0 Interface |
| Display Feature | Extra-Large HD Digital Display with Backlight |
| Protective Material | Industrial Grade Anti-Fall Rubber Sleeve |
| Power Supply | 8 x 1.5V AA Batteries (Stable Performance) |
Commercial & Industrial Electrical Safety Auditing

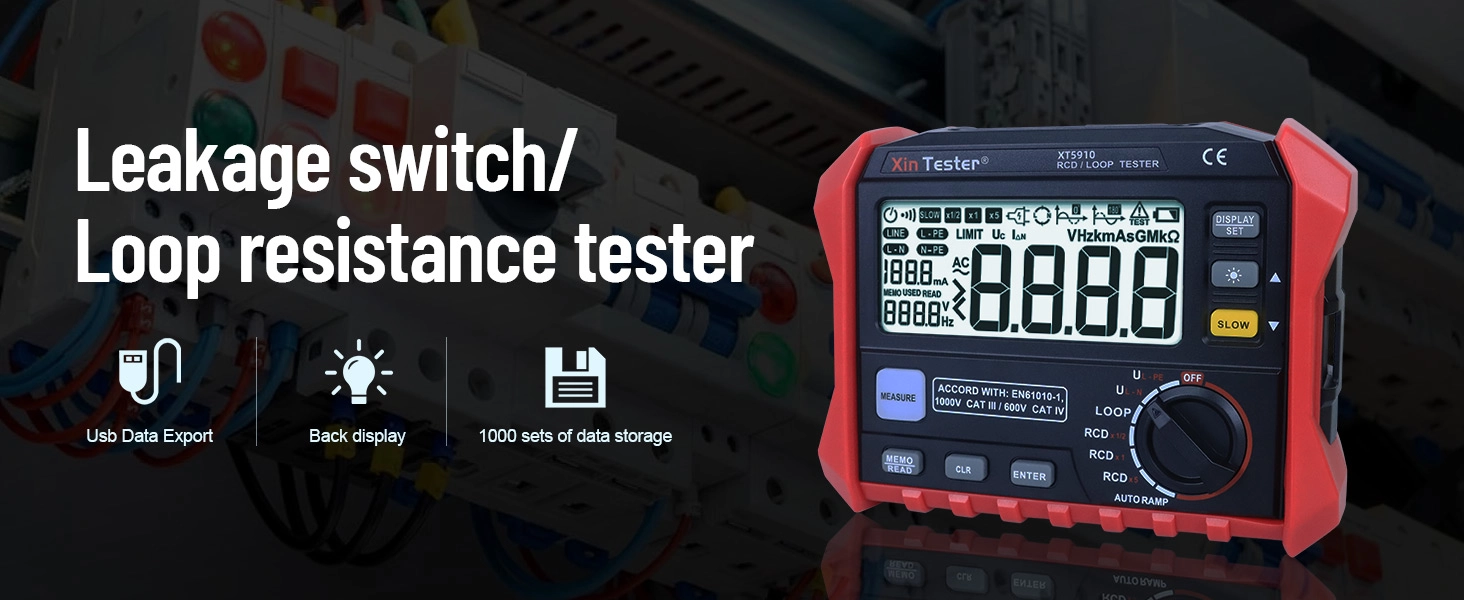

XinTester XT5910 RCD & Loop Resistance Tester
A faulty Residual Current Device (RCD/GFCI) can lead to catastrophic electrical shocks and electrical fire hazards in industrial installations. The XinTester XT5910 provides accredited testing of trip currents, trip response times, loop impedance, and fault touch voltages. Learn more about our grounding and impedance instruments in the Resistance Meter section.
Multi-Gear RCD Verification
Supports selectable multipliers (×1/2, ×1, ×5) alongside ramping test modes. Operators can verify whether a 30mA breaker trips within the mandatory 300ms limit at ×1, or under 40ms during severe ×5 surge events.
Contact Voltage & Phase Angle Control
Pre-checks dangerous contact voltage (Uc up to 50V) prior to energizing. Selectable 0° and 180° test phases ensure that asymmetrical waveform tripping characteristics comply strictly with IEC 61557 requirements.
Safety Compliance & In-Box Equipment

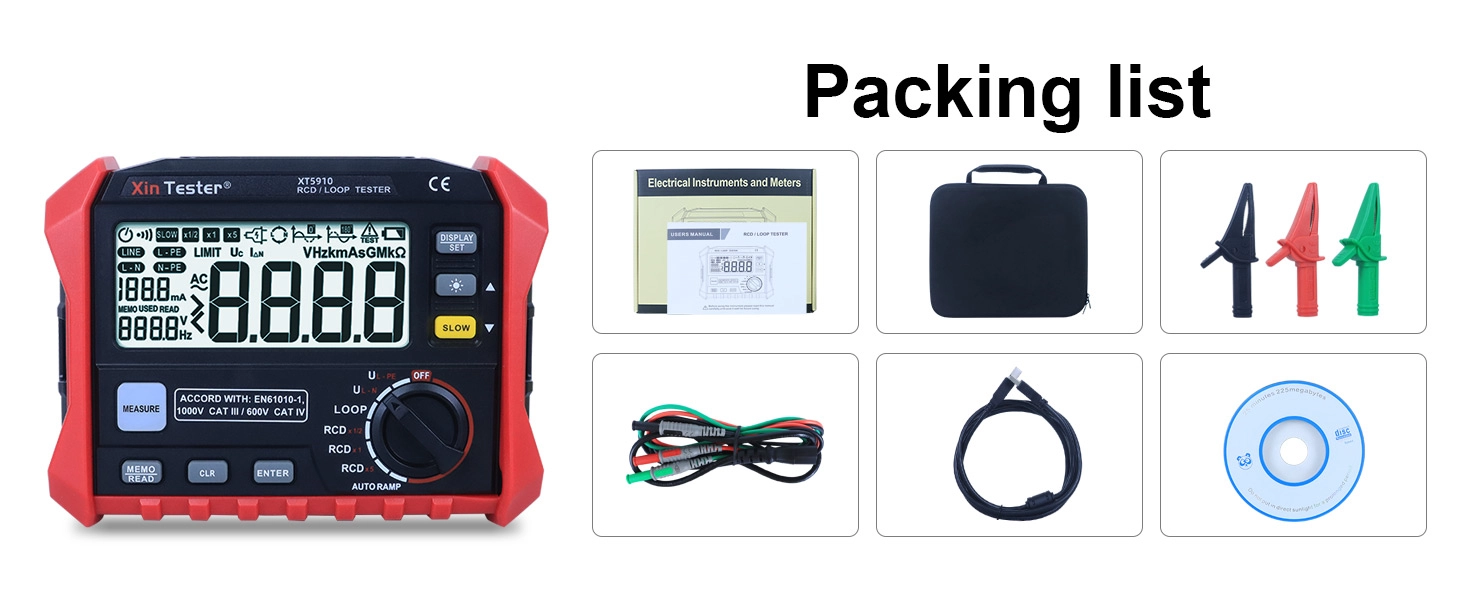

Compliant with CAT III 600V electrical isolation. Comes complete with a 3-wire test lead set, standard wall socket testing lead, crocodile clips, USB data cable, PC software, and hard carrying case.
Looking for complementary electrical testers?
Digital Multimeter |
Digital Clamp Meter
FAQs

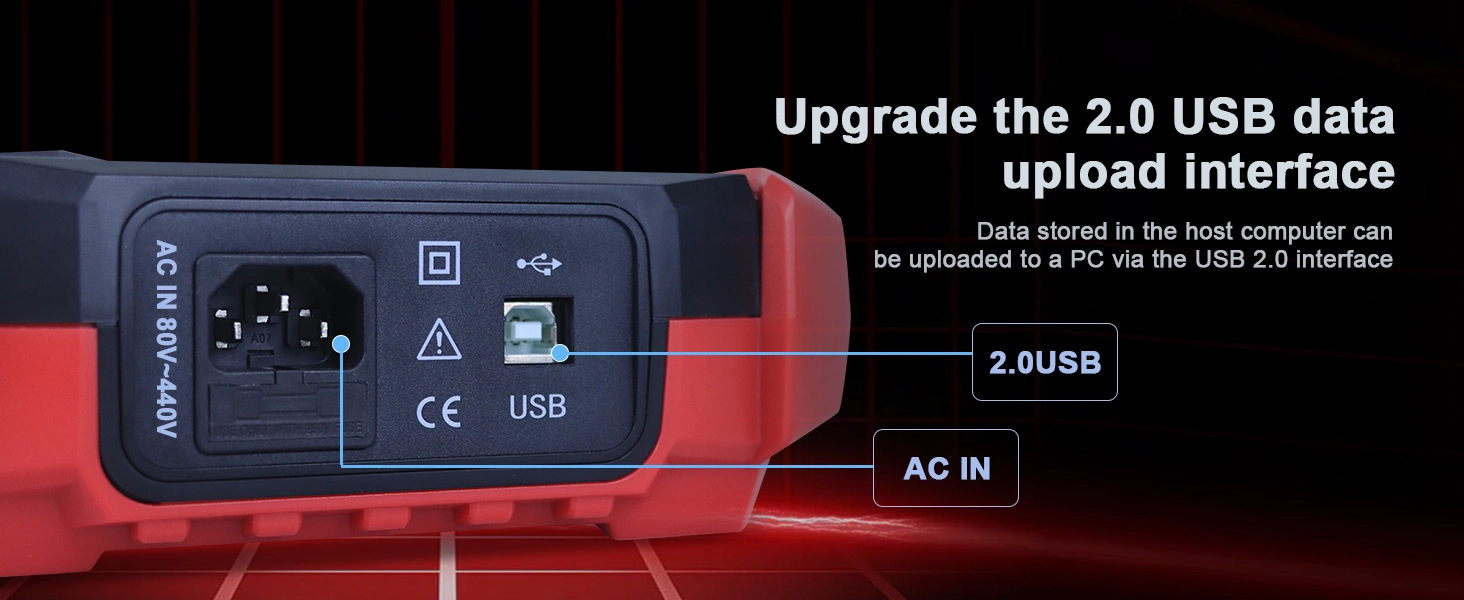

Q1: Can I export my test results to a computer?
Answer: Yes, you absolutely can. The device includes a reliable USB 2.0 interface. Specifically, you can easily upload up to 1000 stored datasets directly to your PC.
Q2: What current test gears are available on this model?
Answer: It provides multiple fast and slow current gears. Specifically, these include 10mA, 30mA, 100mA, 300mA, and 500mA. Therefore, it handles diverse electrical diagnostic scenarios efficiently.

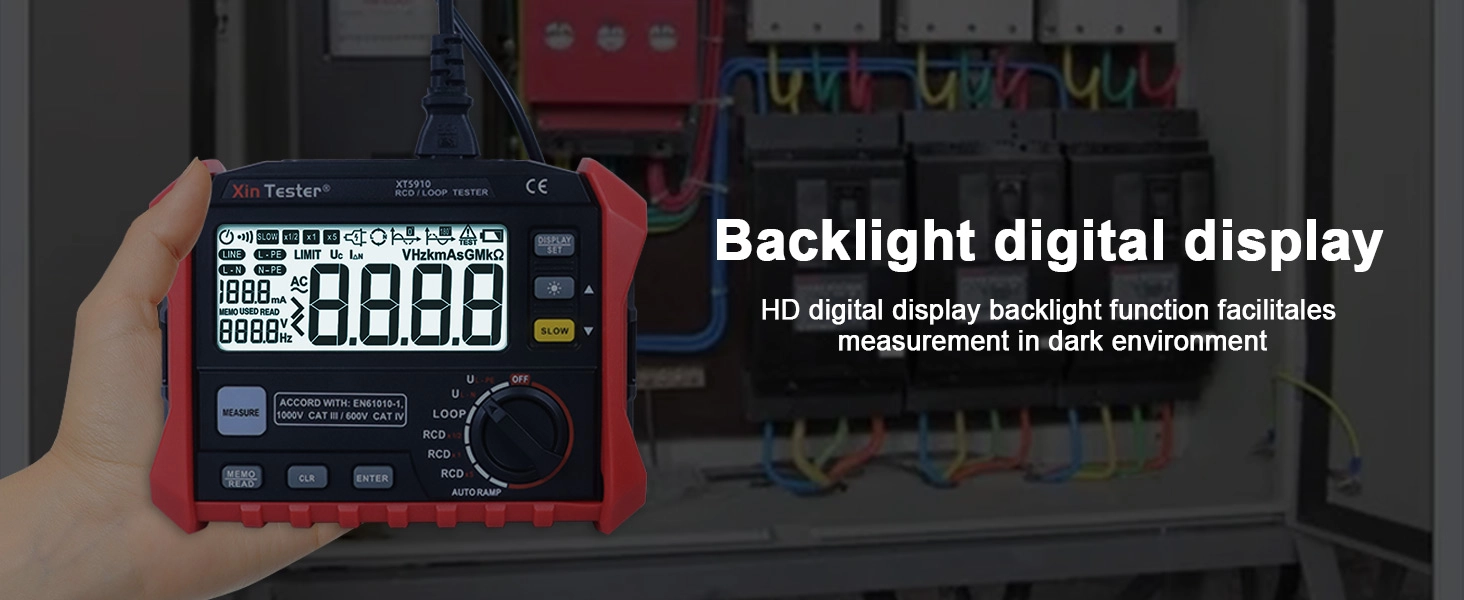

Q3: Does the screen work well in poorly lit environments?
Answer: It works exceptionally well in the dark. The extra-large HD display features a bright backlight. Consequently, you can read measurements clearly inside dark basements or electrical cabinets.

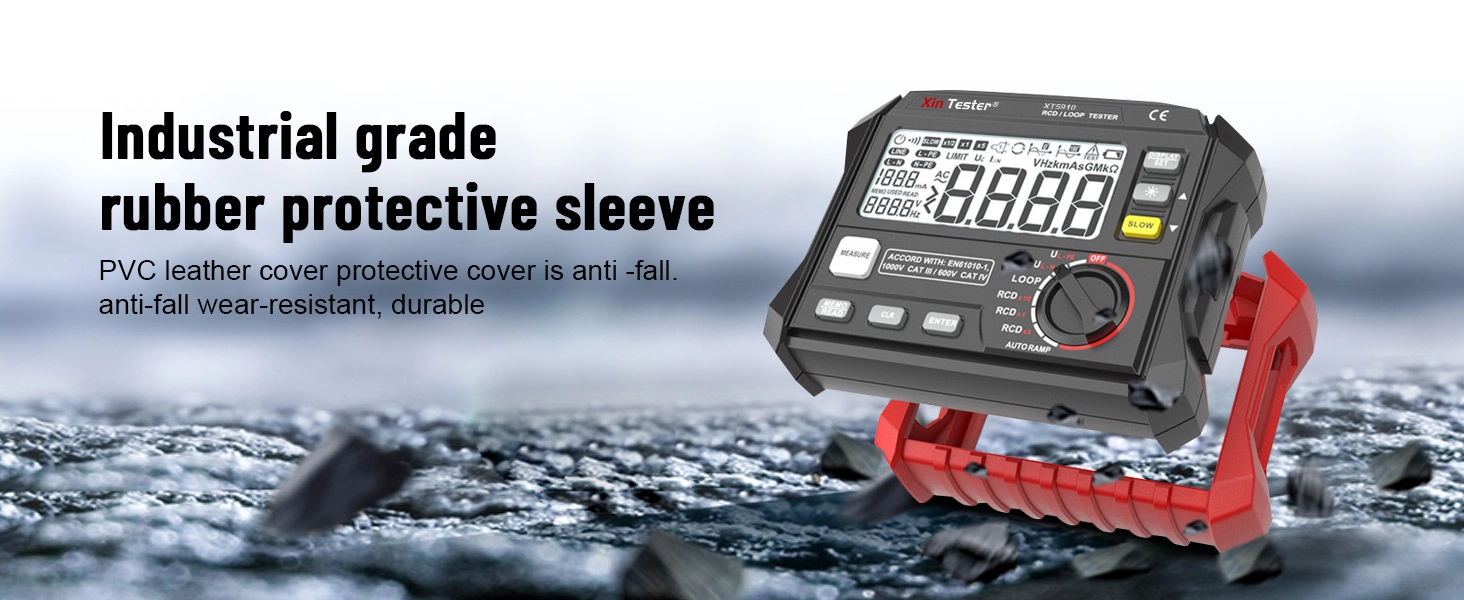

Q4: Is the exterior durable enough for industrial fieldwork?
Answer: Yes, it is incredibly durable. The protective sleeve utilizes industrial-grade rubber. As a result, it provides excellent anti-fall protection and resists daily mechanical wear completely.
XinTester XT5910 RCD Tester & Loop Resistance Meter
Original price was: $168.99.$135.99Current price is: $135.99.
6–12 Month Warranty
Repair & Refund support available for most products.
Free Worldwide Shipping
Ships within 3 business days.
Taxes & Duties
Buyer responsible for local import fees.
24/7 After-Sales Support
Technical assistance & video guidance within 24h.
