Sale!

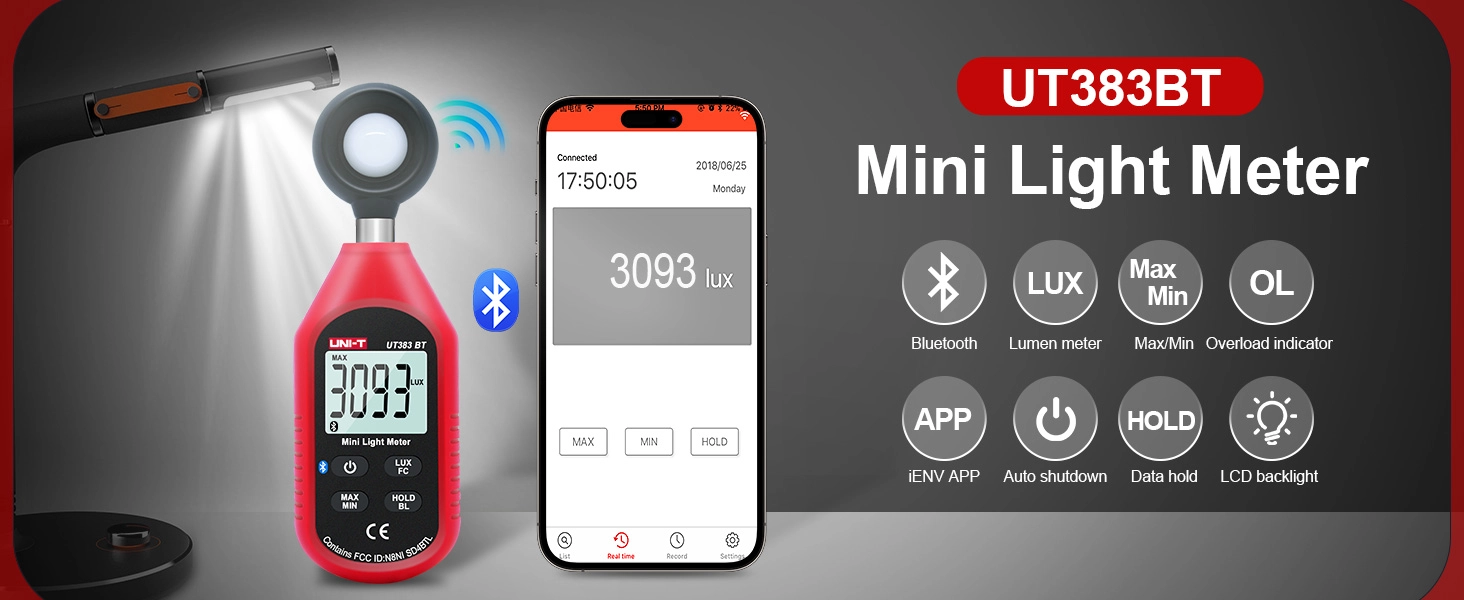

UNI-T UT383BT mini Bluetooth digital light meter for measuring illuminance in LUX and FC, with photoelectric sensor, LCD display, and iENV app wireless connectivity

XinTester branded UNI-T Handheld Digital Lux Meter with Bluetooth connectivity for professional light measurement.

XinTester digital photometer being used on a cinematography video production set to adjust studio lighting for photography.

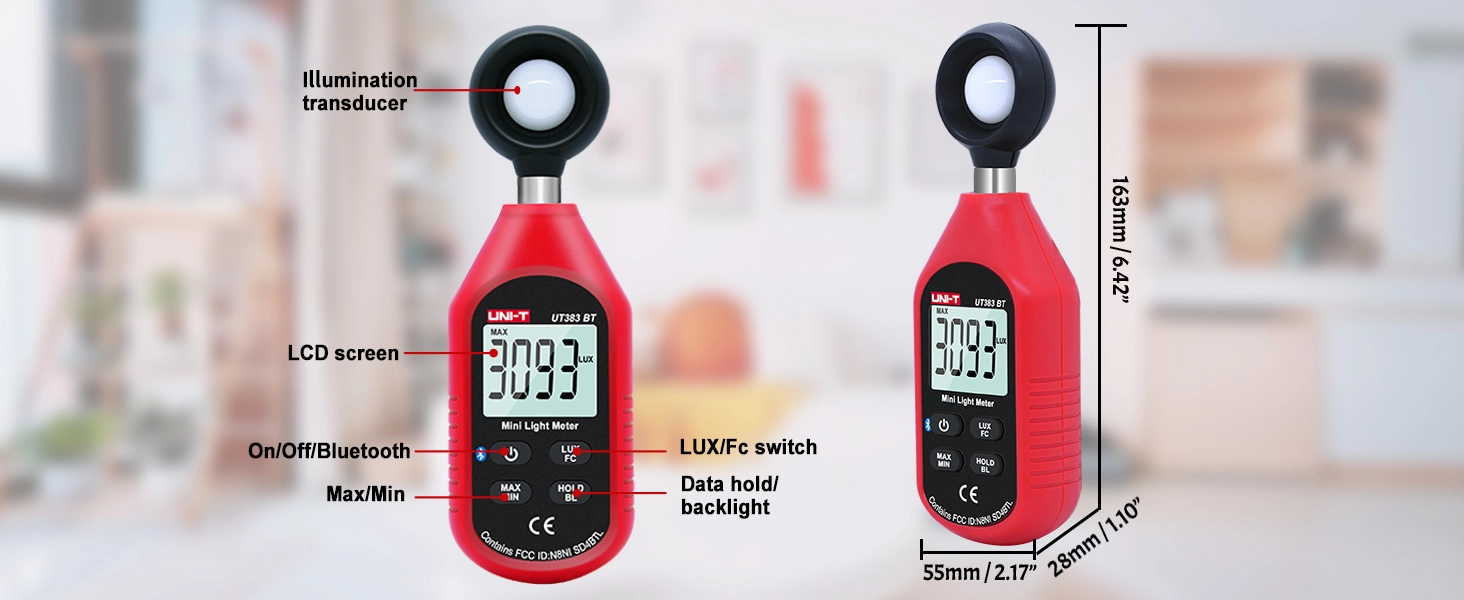

Annotated diagram showing dimensions of XinTester bluetooth light meter and labels for sensor, LCD screen, and control buttons.

Smartphone connected via Bluetooth to XinTester UNI-T illuminance meter displaying real-time light intensity data logging app.

Conceptual internal view of XinTester illuminance meter showing the high-precision silicon photocell sensor and operational amplifier chip.

Infographic detailing features of XinTester UNI-T bluetooth lux meter including range, max min hold, and auto range.

Screenshot of the iENV smartphone app connected to XinTester light meter showing real-time data graph and logged statistics.

Side View of UNI-T UT383S Illuminance Tester, Showing Main Unit and Detached Sensor

Rear View of UNI-T UT383S Light Meter and Back of Detached Sensor, Showing Battery Compartment and Tripod Mount

Features & Details

💡 0-199,900 LUX RANGE	Wide dynamic illumination range from 0 to 199,900 Lux (0 to 18,500 Foot-Candles) with 1 Lux resolution.
📱 BLUETOOTH APP CONNECT	Wirelessly streams real-time lux readings to iOS/Android iENV app, generating continuous illumination logs.
☀️ PRECISION SILICON SENSOR	Cosine-corrected filtered silicon photodiode matches human eye CIE photopic spectral curve accurately.
📊 MAX/MIN & DATA HOLD	Fast 0.5s sampling rate captures peak ambient lux variations with convenient data hold and backlit display.

About this item

Product specification

Key specifications / UT383BT Lux Meter

Feature	Description
Brand	UNI-T®
Measurement range (Lux / Fc)	0~199,900Lux / 0~18,500 Fc. (FC=Lux/10.76)
Accuracy	0~9999Lux/0~999Fc: ±(4%+8). ≥10000Lux/≥1000Fc: ±(5%+10). ≥100000Lux/≥9999Fc: ±(5%+10)
Resolution	1Lux (0~9999Lux). 10Lux (≥10,000Lux). 100Lux (≥100,000Lux) / 1Fc (0~9999Fc). 10Fc (≥10,000Fc)
Sampling time	0.5s
iENV APP	√
Bluetooth	√
Overload indication	OL
MAX/MIN	√
Data hold	√
LCD backlight	√
Auto shutdown	√
Low battery indicator	√
Tripod mount	√
Power	AAA 1.5V battery x 3
Color	Red & Black
Display	32mm x 26mm

Environmental Auditing & Facility Diagnostics

UT383BT Digital Bluetooth Lux Meter Professional Series

Ensuring dependable accuracy during daily operations requires professional equipment engineered to withstand demanding laboratory and industrial environments. The UNI-T UT383BT Digital Bluetooth Lux Meter (199,900 Lux) provides verified stability, user-friendly operation, and certified safety compliance across standard maintenance protocols. Discover our complete line of diagnostic and testing instruments in the Environmental Tester catalog.

Real-Time Peak & Average Hold

Instantly locks minimum, maximum, and average values over time, simplifying noise, lighting, and air velocity surveys.

Fast Sampling Response

High-speed internal ADC samples fluctuations multiple times per second, ensuring transient surges and draft changes are captured.

💡

Environmental Insight: Calibration & Spectral Standards

Accurate acoustic and optical meters incorporate specialized weighting curves (such as A-weighting for human ears and photopic filters for human vision) to mirror standard compliance metrics.

Ordering & Model Verification

Please check measuring range and probe accessories before adding this environmental meter to your cart in the right-side box.

Related technical collections:
Environmental Tester |
Electrical Measuring Instruments

Use Cases

Environmental Monitoring Home DIY & Repair Pocket Size Portable Smart App & Bluetooth

FAQs

Q1: Which smartphones are compatible with the Bluetooth function?

A: The UT383BT connects via Bluetooth (version 4.0 or higher) using the custom UNI-T “iENV” mobile app. It is fully compatible with Apple devices running iOS 8.4 or higher, and Android devices running version 4.3 or higher.

Q2: What is the maximum illuminance this meter can measure?

A: This digital photometer features a wide measurement range up to 199,900 Lux (approximately 18,500 Fc). If the environmental illumination exceeds this maximum limit, the LCD screen will automatically display “OL” to indicate an overload.

Q3: Can I switch the measurement units between Lux and Foot-candles (Fc)?

A: Yes, absolutely. The device features a dedicated “LUX/FC” button on the front panel. You can easily toggle between Lux (the standard international metric unit) and Foot-candles (widely used in the US) depending on your specific project requirements.

Q4: Will the lux meter store data if I am not connected to the smartphone app?

A: The device itself features a “Data Hold” function and tracks MAX/MIN values directly on its LCD screen for quick field readings. However, to record, store, and export continuous real-time data logs, you must keep the device connected to the iENV app via Bluetooth.

Q5: Is this light meter suitable for measuring LED grow lights for indoor plants?

A: Yes, it is highly recommended for indoor agriculture. You can use this photometer to accurately map the light intensity under your LED grow lights, ensuring your indoor plants are receiving the optimal luminosity for healthy photosynthesis and growth.
