Features & Details
| 🔍 AUTO SCANNING | Automatically identifies resistors, capacitors, and diodes upon contact, displaying values rapidly without manual knob adjustments. |
| ✨ GOLD-PLATED TIPS | Specially hardened gold-plated tweezer tips provide ultra-low contact resistance, gripping tiny 0402 and 0201 SMD chips securely. |

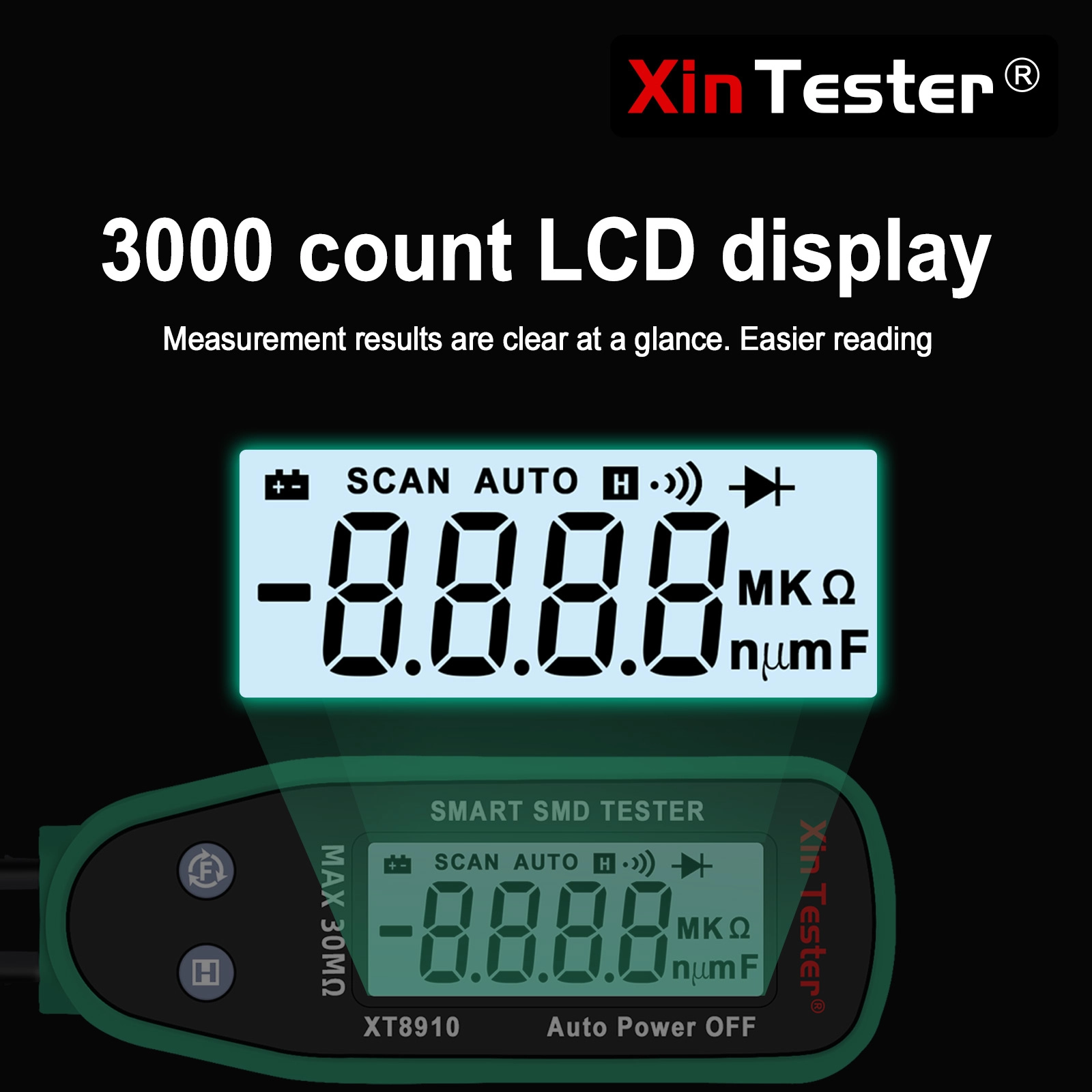

| 📟 3000-COUNT DISPLAY | High-contrast LCD screen with data hold, continuity beeper (<30Ω), and over-range indication for rapid benchtop sorting. |
| ⚡ COMPACT PEN-TYPE | Ergonomic one-handed tweezer form factor powered by a 3V CR2032 cell with automatic power-off battery saving. |
About this item

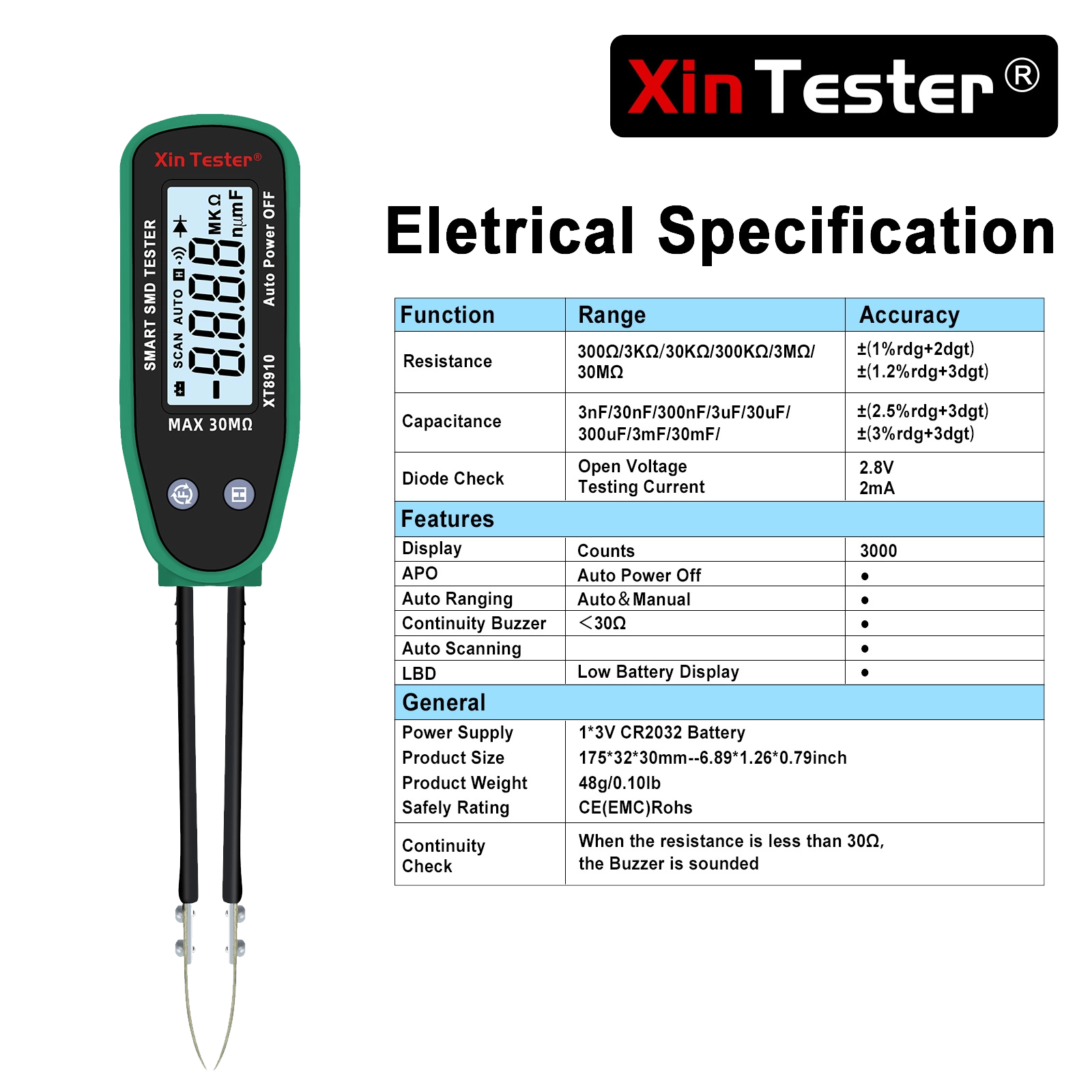

XT8910 Technical Specifications
| Feature | Description |
|---|---|
| Display | 3000 Count LCD Display |
| Operating Temperature | 0 – 40℃ |
| Operating Humidity | < 80% RH |
| Storage Temperature | -10 – 50℃ |
| Storage Humidity | < 70% RH |
| Auto Scanning Range (Resistance) | 300.0Ω – 3.000MΩ |
| Manual Measuring Range (Resistance) | 300.0Ω – 30.00MΩ |
| Auto Scanning Range (Capacitance) | 3.000nF – 300.0μF |
| Manual Measuring Range (Capacitance) | 3.000nF – 30.00mF |
| Power Supply | 3V Lithium Battery (CR2023) |
| Packing List | • 1 x Smart SMD Tester XT8910 • 1 x Test pin • 1 x Color box • 1 x English user manual |
Surface Mount Technology (SMD) Rapid Testing
Xin Tester XT8910 Smart SMD Tester Tweezers

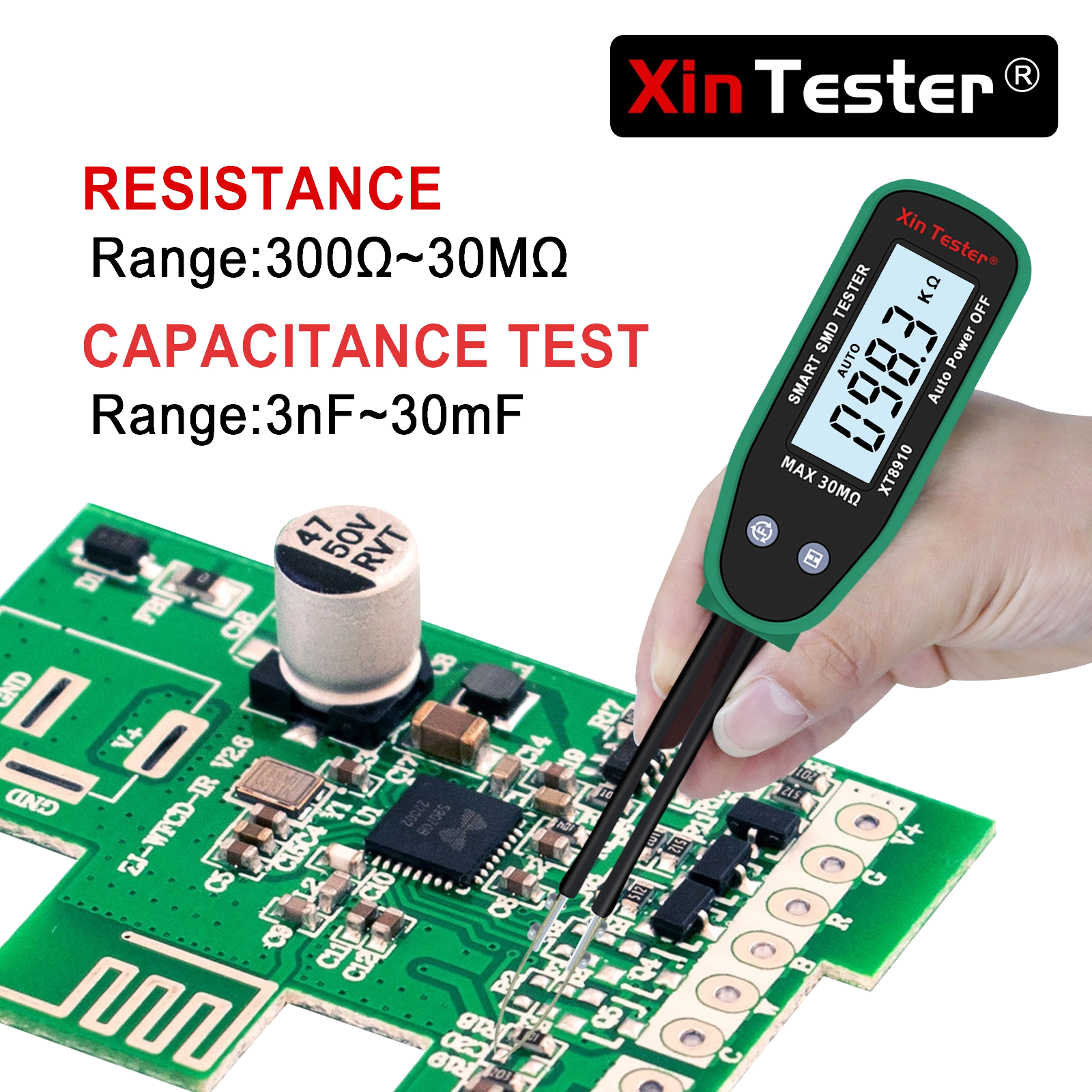

Troubleshooting dense printed circuit boards (PCBs) with traditional multimeter probes is cumbersome, frequently causing slipping and accidental short circuits between tight SMD pins. The Xin Tester XT8910 smart SMD tester combines ultra-fine gold-plated tweezers with a digital measurement engine. It enables one-handed identification and testing of surface mount resistors, multilayer ceramic capacitors (MLCC), and diodes. Check our full testing suite in the Digital Multimeter catalog.
Intelligent Auto-Scan Engine
In Auto Scan mode, the microprocessor immediately recognizes component type. Resistance is measured from 300Ω up to 30MΩ, and capacitance is measured from 3nF to 30mF with high resolution, speeding up production line sorting.

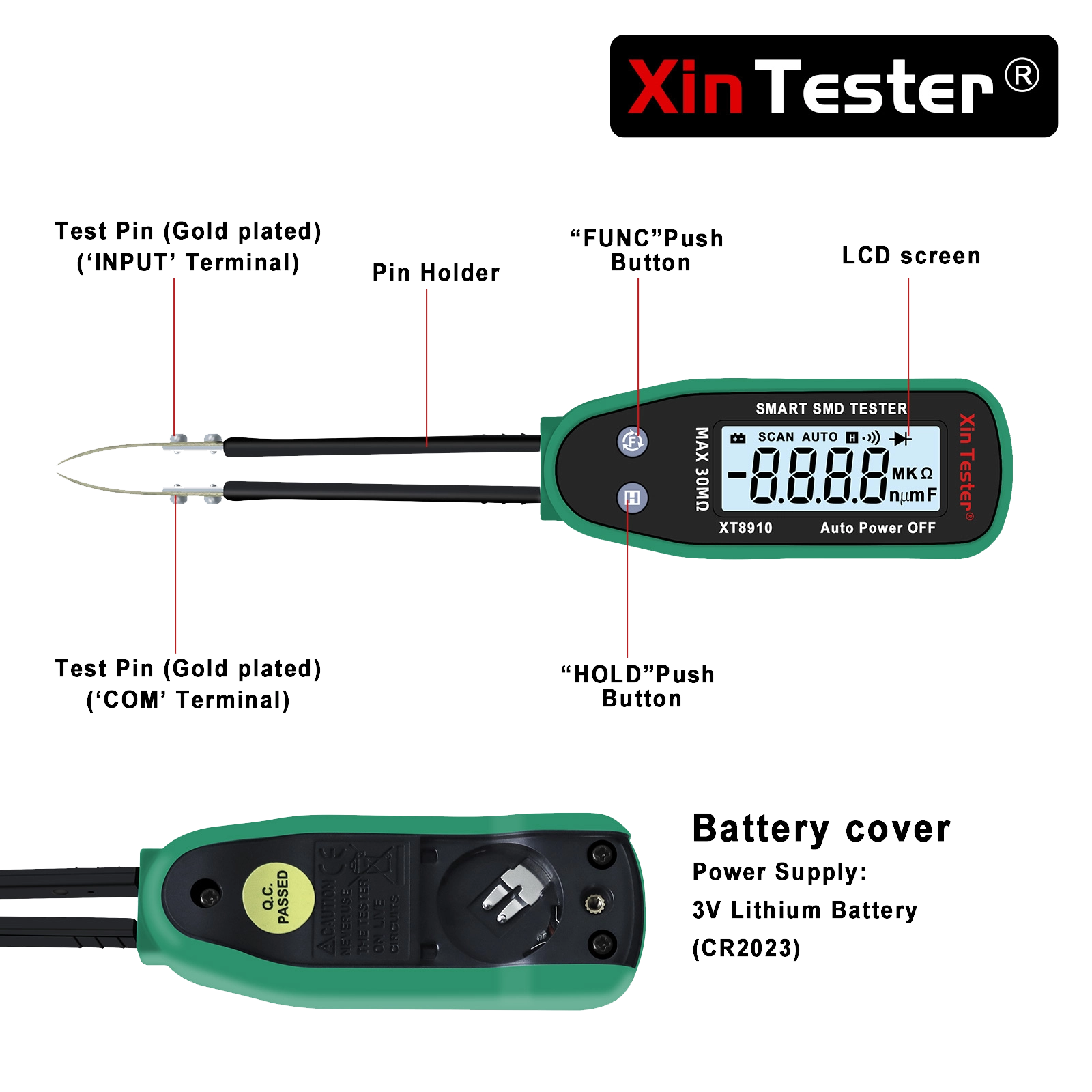

Precision Gold-Plated Tweezer Arm
Engineered with hardened gold plating to prevent surface oxidation. The needle-like tips fit 0402, 0603, 0805, and 1206 packages effortlessly, while shielded wiring minimizes parasitic lead capacitance.
Essential Benchtop SMT Diagnostic Gear
Includes protective storage case, spare replacement tweezer test tips, and pre-installed CR2032 battery. Ideal for electronics laboratories, mobile phone repairs, and automated pick-and-place quality control.
Looking for component testing tools?
Resistance Meter |
Oscilloscope Instrument
FAQs
Q1: What happens if the tweezer tips get damaged or worn out?
A: We have you covered. The package includes 2 backup gold-plated test pins. The gold-plating ensures rust prevention and reduces contact resistance to maintain high-precision readings over time.
Q2: Does the tester have a feature to prevent battery drain?
A: Yes, it is equipped with an automatic shutdown function that turns the device off after a period of inactivity. It also features a low battery indicator on the screen so you know exactly when to replace it.
Q3: Do I need to manually switch ranges when testing different components?
A: No! This smart tester features an intelligent auto-scanning mode. It will automatically identify the component type and select the appropriate measurement range, allowing for seamless, one-handed operation.
Q4: What components can the XT8910 Smart SMD Tester measure?
A: It is designed to accurately measure surface-mount (SMD) sheet resistors, sheet capacitors, and sheet diodes. It also includes a highly responsive continuity (on/off) testing function, making it perfect for PCB troubleshooting.
Xin Tester XT8910 Smart SMD Tester Tweezers, Digital Resistance & Capacitance Meter (3000 Counts)
Original price was: $32.99.$25.99Current price is: $25.99.
6–12 Month Warranty
Repair & Refund support available for most products.
Free Worldwide Shipping
Ships within 3 business days.
Taxes & Duties
Buyer responsible for local import fees.
24/7 After-Sales Support
Technical assistance & video guidance within 24h.
Xin Tester XT8910 Smart SMD Tester Tweezers, Digital Resistance & Capacitance Meter (3000 Counts)
Sale!
Original price was: $32.99.$25.99Current price is: $25.99.
Features & Details
| 🔍 AUTO SCANNING | Automatically identifies resistors, capacitors, and diodes upon contact, displaying values rapidly without manual knob adjustments. |
| ✨ GOLD-PLATED TIPS | Specially hardened gold-plated tweezer tips provide ultra-low contact resistance, gripping tiny 0402 and 0201 SMD chips securely. |
| 📟 3000-COUNT DISPLAY | High-contrast LCD screen with data hold, continuity beeper (<30Ω), and over-range indication for rapid benchtop sorting. |
| ⚡ COMPACT PEN-TYPE | Ergonomic one-handed tweezer form factor powered by a 3V CR2032 cell with automatic power-off battery saving. |
XT8910 Technical Specifications
| Feature | Description |
|---|---|
| Display | 3000 Count LCD Display |
| Operating Temperature | 0 – 40℃ |
| Operating Humidity | < 80% RH |
| Storage Temperature | -10 – 50℃ |
| Storage Humidity | < 70% RH |
| Auto Scanning Range (Resistance) | 300.0Ω – 3.000MΩ |
| Manual Measuring Range (Resistance) | 300.0Ω – 30.00MΩ |
| Auto Scanning Range (Capacitance) | 3.000nF – 300.0μF |
| Manual Measuring Range (Capacitance) | 3.000nF – 30.00mF |
| Power Supply | 3V Lithium Battery (CR2023) |
| Packing List | • 1 x Smart SMD Tester XT8910 • 1 x Test pin • 1 x Color box • 1 x English user manual |
Surface Mount Technology (SMD) Rapid Testing
Xin Tester XT8910 Smart SMD Tester Tweezers
Troubleshooting dense printed circuit boards (PCBs) with traditional multimeter probes is cumbersome, frequently causing slipping and accidental short circuits between tight SMD pins. The Xin Tester XT8910 smart SMD tester combines ultra-fine gold-plated tweezers with a digital measurement engine. It enables one-handed identification and testing of surface mount resistors, multilayer ceramic capacitors (MLCC), and diodes. Check our full testing suite in the Digital Multimeter catalog.
Intelligent Auto-Scan Engine
In Auto Scan mode, the microprocessor immediately recognizes component type. Resistance is measured from 300Ω up to 30MΩ, and capacitance is measured from 3nF to 30mF with high resolution, speeding up production line sorting.
Precision Gold-Plated Tweezer Arm
Engineered with hardened gold plating to prevent surface oxidation. The needle-like tips fit 0402, 0603, 0805, and 1206 packages effortlessly, while shielded wiring minimizes parasitic lead capacitance.
Essential Benchtop SMT Diagnostic Gear
Includes protective storage case, spare replacement tweezer test tips, and pre-installed CR2032 battery. Ideal for electronics laboratories, mobile phone repairs, and automated pick-and-place quality control.
Looking for component testing tools? Resistance Meter | Oscilloscope Instrument
