Full 9-piece near field probe kit with 9kHz-3GHz 30dB RF preamplifier for EMC EMI electromagnetic interference pre-compliance testing and PCB troubleshooting.

Detailed view of 4 high-frequency magnetic near field probe tips with 25mm, 10mm, 5mm, and 2mm spatial resolution for precise magnetic field testing.

XinTester near-field probe kit for EMC compliance testing, magnetic and electric field probes with optional 30dB RF amplifier.

2-piece electric field near field probe kit with HNFPA-1 RF preamplifier for high-sensitivity EMC remediation and diagnostic testing.

30MHz-3GHz high-frequency electric E-field near field probe kit with 2 probe shapes and SMA RF cable for locating electric field noise sources.

4-piece high frequency magnetic near field probe kit bundled with HNFPA-1 30dB RF amplifier for high-sensitivity weak signal EMI detection.

30MHz-3GHz high-frequency magnetic H-field near field probe kit with 4 probe shapes, SMA cable, and N-type adapter for circuit board EMI locating.

9kHz to 50MHz low-frequency magnetic H-field near field probe kit with 3 loop probe sizes and connection cables for low-frequency EMI troubleshooting.

3-piece low-frequency magnetic near field probe kit paired with 30dB RF preamplifier for weak magnetic field signal amplification and EMC pre-compliance.

Features & Details

📡 9KHz TO 3GHz BANDWIDTH	Broad frequency coverage pinpoints RF interference, harmonic radiation, and switching noise on high-speed digital and power circuits.
🧲 4-PIECE PROBE SET	Includes large, medium, and small magnetic field (H-field) loops for regional isolation, plus a fine-tip electric field (E-field) probe.
🔌 50Ω SMA INTERFACE	Standard gold-plated 50-ohm SMA connectors connect to spectrum analyzers, RF receivers, or oscilloscopes via included coax cables.
🛡️ INSULATED PCB LAYOUT	Multi-layer PCB trace construction with conformal insulation coating prevents short-circuiting live solder pads during probing.

About this item

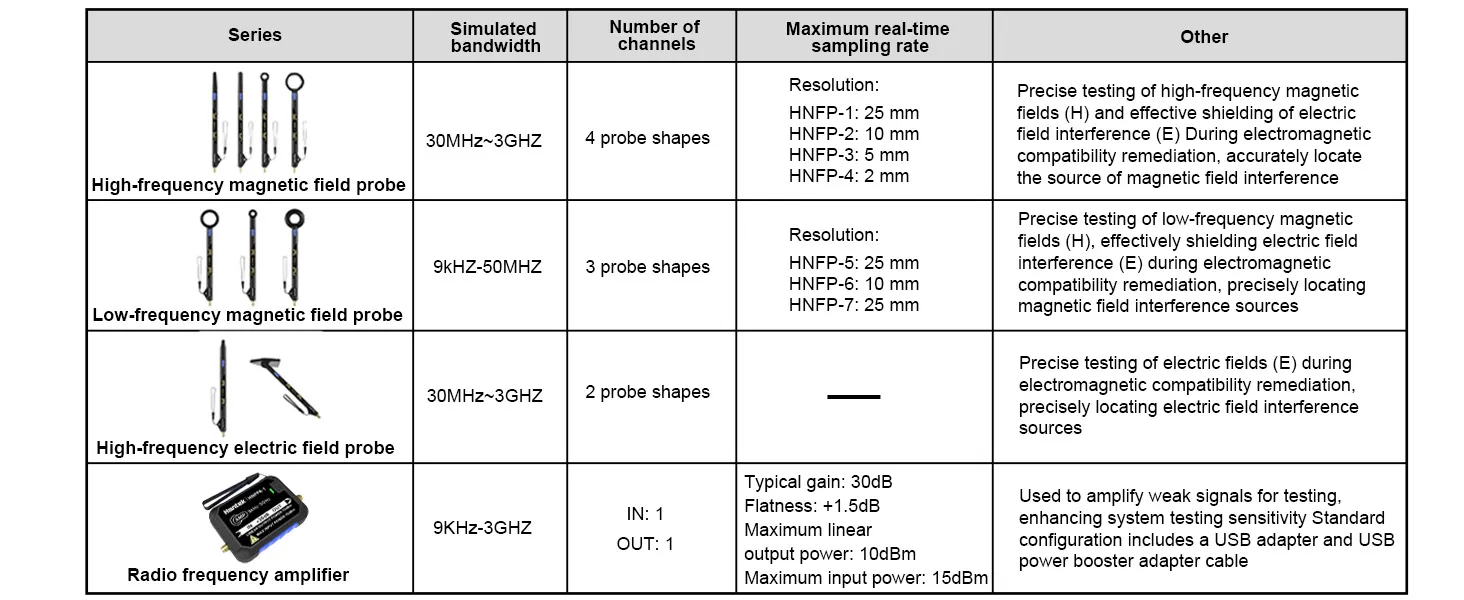

Product specification

Probe Model

Technical Specifications

High-Frequency Magnetic Probes

HNFP-1

30MHz-3GHz / 25mm (1.0 in) loop / 10cm range / Detects radiation leakage

HNFP-2

30MHz-3GHz / 10mm (0.4 in) loop / 3cm range

HNFP-3

30MHz-2GHz / 5mm (0.2 in) loop / Detects cable crosstalk

HNFP-4

30MHz-3GHz / 2mm (0.08 in) loop / Vertical / Ideal for PCB trace

Low-Frequency Magnetic Probes

HNFP-5

1MHz-50MHz / 25mm (1.0 in) loop / 10cm range / LF conducted

HNFP-6

1MHz-50MHz / 10mm (0.4 in) loop / 3cm range / LF conducted

HNFP-7

9KHz-1.5MHz / 25mm (1.0 in) loop / 10cm range / LF conducted

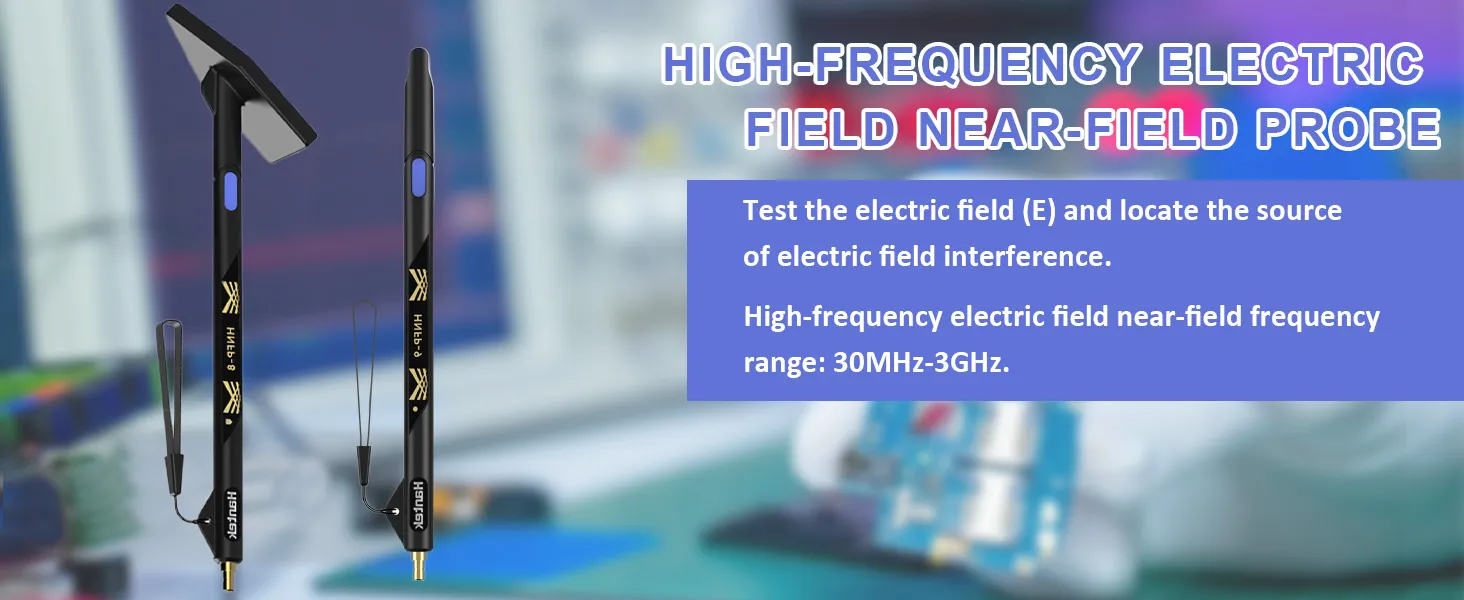

High-Frequency Electric Probes

HNFP-8

30MHz-1.5GHz / Measures Surface E-field / Used for Bus structures

HNFP-9

30MHz-3GHz / Measures Single wire E-field

Optional Pre-Amplifier

HNFPA-1

9KHz-3GHz Frequency / +30dB Gain (Boosts weak signals)

Electromagnetic Compatibility (EMC/EMI) Pre-Compliance Testing

Xin Tester Near Field Probe Kit (9KHz – 3GHz EMC Diagnostic Set)

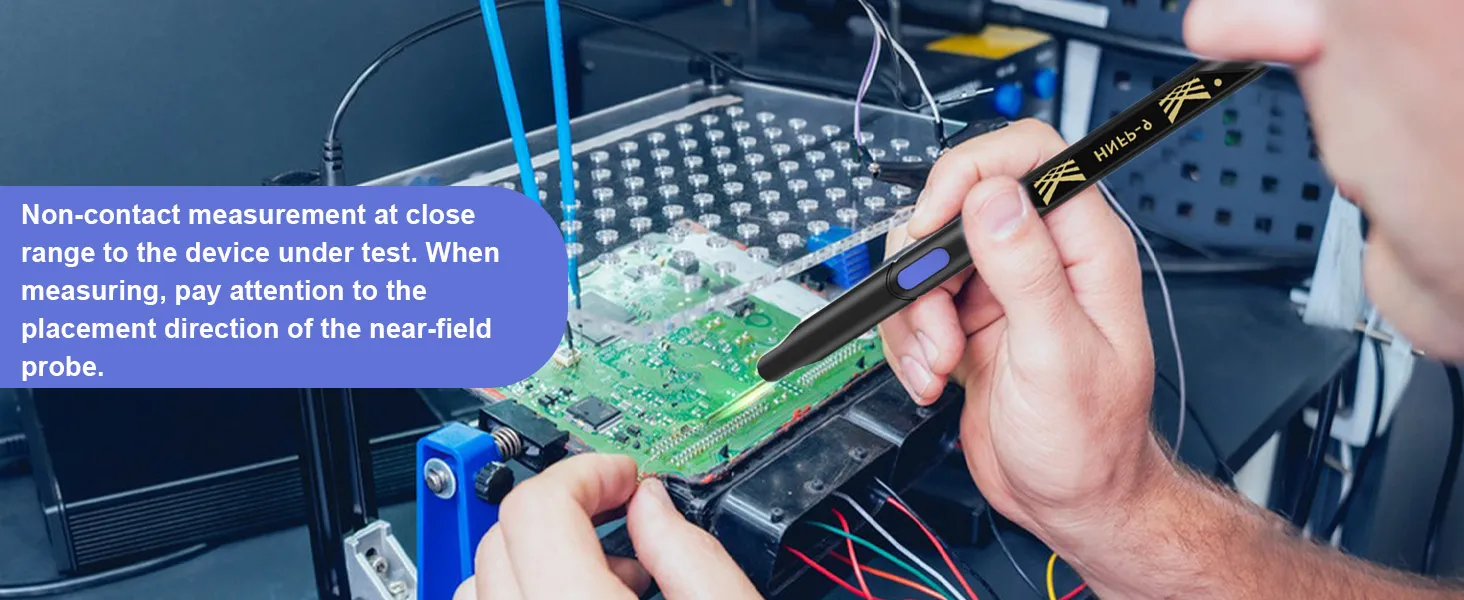

Failing official EMC radiation compliance chamber tests causes costly product launch delays and redesign cycles. The Xin Tester 4-piece near field probe kit enables engineers to isolate electromagnetic radiation hot-spots directly on circuit boards before heading to compliance labs. By detecting magnetic field loops and electric field traces across 9kHz to 3GHz, it pinpoints offending clock lines, switching inductors, and IC packages. Explore our complete selections in the Accessories catalog.

H-Field vs E-Field Isolation

Large loop probes provide high sensitivity for sweeping broad PCB areas; smaller loop probes narrow down specific traces; the vertical E-field tip isolates high-voltage RF potentials on floating heat sinks and transformer shields.

Shielded Multi-Layer Design

Constructed with multi-layer FR4 boards where outer ground planes suppress common-mode electric field pick-up, ensuring that magnetic loop probes respond primarily to true circulating RF currents.

Package Inclusions

Kit contains 3× H-Field probes (large, medium, small), 1× E-Field probe, 1× SMA-male to SMA-male coaxial cable, 1× SMA to BNC adapter, and a protective EVA hard carry case.

Related testing & equipment:
Oscilloscope Instrument |
Digital Multimeter

Use Cases

Data Logging High Precision Non-Contact Testing Safety & Protection

FAQs

Q1: What is the difference between magnetic and electric field probes?

A1: Magnetic (H-field) probes detect the magnetic component of electromagnetic emissions, ideal for low-frequency and conducted EMI. Electric (E-field) probes detect the electric component, useful for surface and wire-level high-frequency field measurements.

Q2: Why would I need the 30dB amplifier?

A2: The optional 30dB pre-amplifier boosts weak probe signals above the noise floor of your spectrum analyzer, dramatically improving measurement sensitivity for low-emission DUTs and allowing accurate readings in low-signal environments.

Q3: Which probe size should I use for PCB testing?

A3: For PCB trace-level emissions, the HNFP-4 with 2mm loop diameter is ideal. For larger components or bus structures, the HNFP-3 (5mm) or HNFP-2 (10mm) work better. The HNFP-1 (25mm) is best for general bulk radiation testing.

Q4: Can I buy individual probes separately?

A4: This product is sold as pre-configured bundles to provide complete testing coverage at a value price. For individual probe purchases, please contact us directly.
