Features & Details

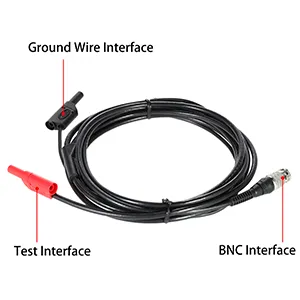

| 🔌 3-METER SHIELDED LEAD | 3-meter heavy-gauge coaxial test cable reaches vehicle engine sensors and under-dash harnesses easily. |

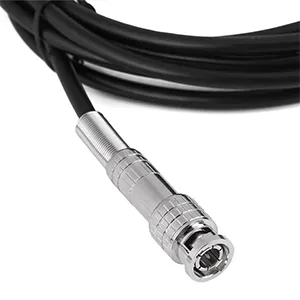

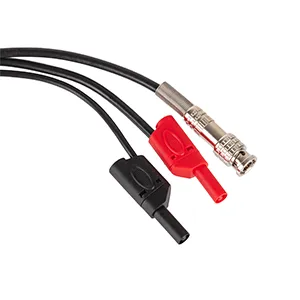

| ⚡ BNC TO DUAL 4MM BANANA | Standard male BNC connector splits into ground and signal 4mm banana plugs with strain relief. |
| 📶 NOISE REJECTION SHIELD | Dense braided copper outer shielding suppresses secondary ignition RF interference during scope runs. |
| 🚗 AUTOMOTIVE OSCILLOSCOPE | Engineered specifically for automotive lab scopes, sensor testing, and primary ignition waveforms. |
About this item
Electronic Prototyping, Waveform Analysis & Signal Debugging
Auto Test Cable, HT30A 3M BNC to Banana Oscilloscope Adapter by Professional Series
Ensuring dependable accuracy during daily operations requires professional equipment engineered to withstand demanding laboratory and industrial environments. The Auto Test Cable, Hantek HT30A 3M BNC to Banana Oscilloscope Adapter by Xin Tester provides verified stability, user-friendly operation, and certified safety compliance across standard maintenance protocols. Discover our complete line of diagnostic and testing instruments in the Oscilloscope Instrument catalog.
Trigger Flexibility
Advanced edge, pulse width, video, and slope trigger modes isolate intermittent glitches and timing jitter across digital communication buses.
Bright High-Res Display
Multi-color TFT LCD screen with grid graticule displays multiple channel traces, trigger levels, and automatic parameter measurements clearly.
💡
Engineering Insight: Bandwidth Rules & Sampling Ratios
To capture signal rise times accurately without amplitude attenuation, oscilloscope bandwidth should be at least 3 to 5 times higher than the fundamental clock frequency under test.
Ordering & Model Verification
Confirm bandwidth (MHz), channel count, and built-in function generator options before configuring your unit in the right-side panel.
Related technical collections:
Oscilloscope Instrument |
Accessories
Related products:
Hantek HT311 BNC-to-banana adapter |
HT18A dolphin alligator-clip test leads |
HT301 ignition coil test cable |
HT201 20:1 passive attenuator
FAQs
Q1: Can the HT30A be used with any oscilloscope brand?
A1: Yes, the HT30A features a standard BNC male connector compatible with all oscilloscopes from Hantek, Tektronix, Keysight, Rigol, Siglent, and other brands. The 4mm banana sockets accept standard test leads.
Q2: Is the 3-meter length suitable for automotive diagnostics?
A2: Absolutely. The 3-meter cable is specifically designed for automotive use — you can keep your oscilloscope inside the vehicle while probing engine sensors, ABS modules, and other under-hood components with ease.
Q3: Does the shielding effectively reduce interference?
A3: Yes, the RG-58 coaxial cable with dense braided shielding provides excellent EMI rejection, ensuring clean waveforms even near ignition systems, motors, and switching power supplies.
Q4: What is the maximum voltage rating of the HT30A?
A4: The HT30A is rated for 30V AC / 60V DC maximum. For higher voltage measurements, use appropriate attenuation probes connected to the banana sockets or a dedicated high-voltage probe on the BNC input.
Auto Test Cable, Hantek HT30A 3M BNC to Banana Oscilloscope Adapter by Xin Tester
$19.99
6–12 Month Warranty
Repair & Refund support available for most products.
Free Worldwide Shipping
Ships within 3 business days.
Taxes & Duties
Buyer responsible for local import fees.
24/7 After-Sales Support
Technical assistance & video guidance within 24h.
Auto Test Cable, Hantek HT30A 3M BNC to Banana Oscilloscope Adapter by Xin Tester
$19.99
