Features & Details
📉 20:1 ATTENUATION
Reduces incoming signal amplitude by a strict factor of 20 natively. Therefore, a 20V input signal is safely outputted as a 1V signal to the oscilloscope.
🚗 AUTO DIAGNOSTICS
Specifically engineered for assisting advanced automobile measurement securely. Consequently, it safely measures fuel injector and primary ignition waveforms.
⚡ 10MHZ BANDWIDTH
Supports a broad system bandwidth of up to 10MHz flawlessly. Specifically, it guarantees distortion-free signal capturing during rapid automotive voltage spikes.
🔌 UNIVERSAL BNC
Features universally compatible BNC connectors seamlessly. Ultimately, it integrates perfectly with standard digital and analog oscilloscopes worldwide.
About this item
Safe Automotive Diagnostics with the 20:1 Passive Attenuator
Capturing rapid electrical signals in modern automotive engines is a highly sensitive process. Specifically, primary ignition coils and fuel injectors generate extreme voltage spikes that can instantly destroy standard oscilloscope input channels. Therefore, a reliable 20:1 passive attenuator is absolutely essential for dedicated automotive technicians and diagnostic engineers. Consequently, the Hantek HT201 safely shrinks massive electrical pulses down to readable levels, completely protecting your expensive diagnostic hardware from catastrophic overloads.
Furthermore, rigorous automotive electrical testing requires strict adherence to industry safety protocols. Professional mechanics explicitly follow the global SAE (Society of Automotive Engineers) guidelines to ensure absolute testing accuracy and equipment safety. Thus, we engineered this 20:1 passive attenuator with a massive 1.053MΩ input resistance natively. Ultimately, it guarantees your engine diagnostics meet demanding industrial quality requirements safely without signal distortion. Explore our complete Accessories collection to secure the most reliable oscilloscope attachments immediately.
Signal Protection
Precision 20:1 Signal Reduction
Injecting unattenuated inductive kickback voltages into your diagnostic tools ruins delicate oscilloscopes permanently. Fortunately, this robust adapter utilizes a highly stable internal resistor network natively. It reduces the incoming signal amplitude by an exact ratio of 20 to 1. For instance, if you measure a dangerous 20V spike from a fuel injector, it safely outputs a harmless 1V signal. This specific attenuation guarantees your hardware remains perfectly intact during aggressive automotive tests.
Universal Connectivity
Standardized BNC Interfaces
Mismatched adapters cause severe signal loss and frustrating operational delays. Thus, we equipped both ends of this accessory with universally standardized BNC connectors. It plugs flawlessly into any standard automotive test cable on one side, and securely locks into your digital or analog oscilloscope on the other. Consequently, it creates a robust, interference-free connection that prevents signal noise from contaminating your precise automotive waveform readings.
Core Capabilities of the Attenuator
⚡ 10MHz Bandwidth
Supports a broad operational frequency bandwidth of 10MHz, ensuring sharp and highly accurate captures of rapid engine ignition spikes.
🔋 Zero Power Needed
Operates as a completely passive device, requiring absolutely no external batteries or separate power supplies to function perfectly.
🛡️ Specific Application
Strictly engineered for automotive fuel injectors and primary ignition. Never use this device for testing high voltage AC mains or house wiring.
Essential Equipment for Automotive Diagnostics
Investing in a reliable 20:1 passive attenuator is absolutely essential for maintaining strict diagnostic accuracy and hardware safety. Our specialized Hantek HT201 adapters combine immense input resistance with a flawless BNC connection, making them the perfect solution for mechanics evaluating complex engine starter currents and ignition waveforms.
Related products:
Hantek HT311 BNC-to-banana adapter |
Hantek HT30A 3 m BNC-to-banana test cable
FAQs
Q1: When should I use a 20x attenuator like the HT201?
A1: Use the HT201 when measuring signals that exceed your oscilloscope maximum input voltage. For example, a 200V signal becomes a safe 10V at the scope input after 20x attenuation, protecting the sensitive front-end circuitry.
Q2: Does the HT201 require any calibration or compensation?
A2: No, the HT201 is a passive resistive attenuator with no adjustable components. Unlike oscilloscope probes, there is no compensation capacitor to adjust — simply connect and measure with consistent accuracy.
Q3: Will the HT201 affect my measurement accuracy?
A3: The HT201 maintains ±2% attenuation accuracy across its operating range. Simply multiply the oscilloscope reading by 20 to obtain the actual signal value. The minimal phase shift ensures faithful waveform reproduction.
Q4: Is the HT201 compatible with 50Ω and 1MΩ oscilloscope inputs?
A4: The HT201 is designed for 50Ω systems. When used with a 1MΩ input, set your oscilloscope to 50Ω termination mode if available, or use an external 50Ω feed-through terminator for best accuracy.

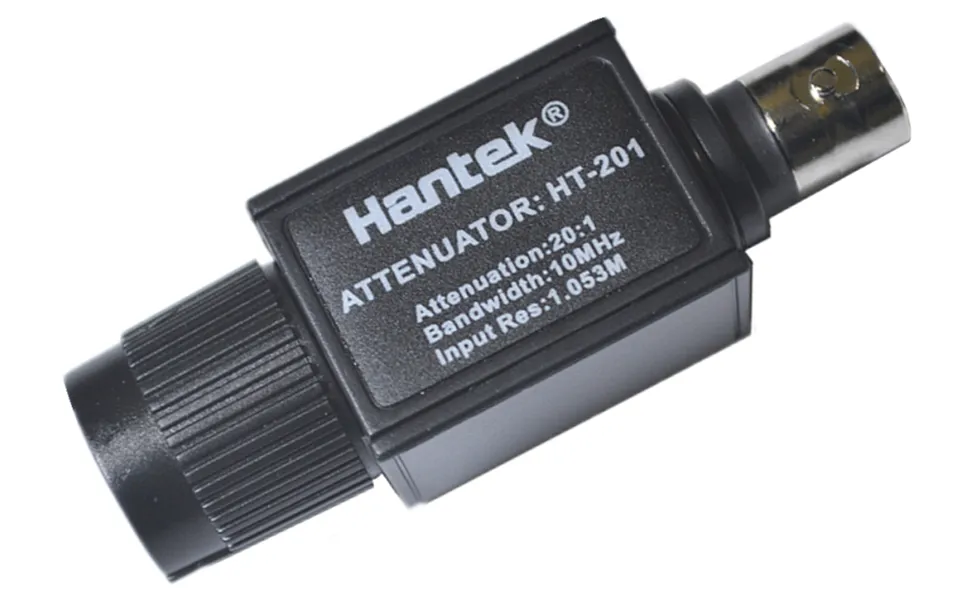

20:1 Passive Attenuator, Hantek HT201 10MHz Oscilloscope Accessory
$14.99
6–12 Month Warranty
Repair & Refund support available for most products.
Free Worldwide Shipping
Ships within 3 business days.
Taxes & Duties
Buyer responsible for local import fees.
24/7 After-Sales Support
Technical assistance & video guidance within 24h.
20:1 Passive Attenuator, Hantek HT201 10MHz Oscilloscope Accessory
$14.99
