Clean shot of Xin Tester XT-R2 multimeter with its dedicated accessories including carrying case and probes.

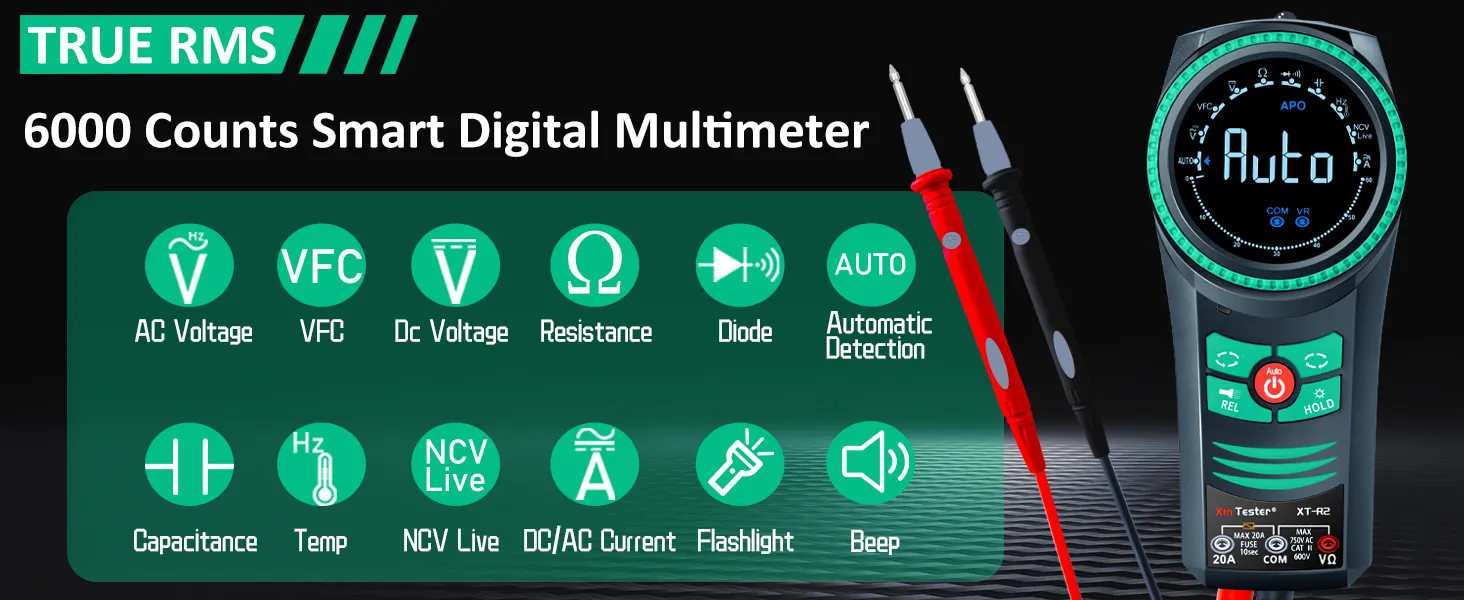

Key features icon grid for Xin Tester XT-R2 6000 Counts Smart Digital Multimeter.

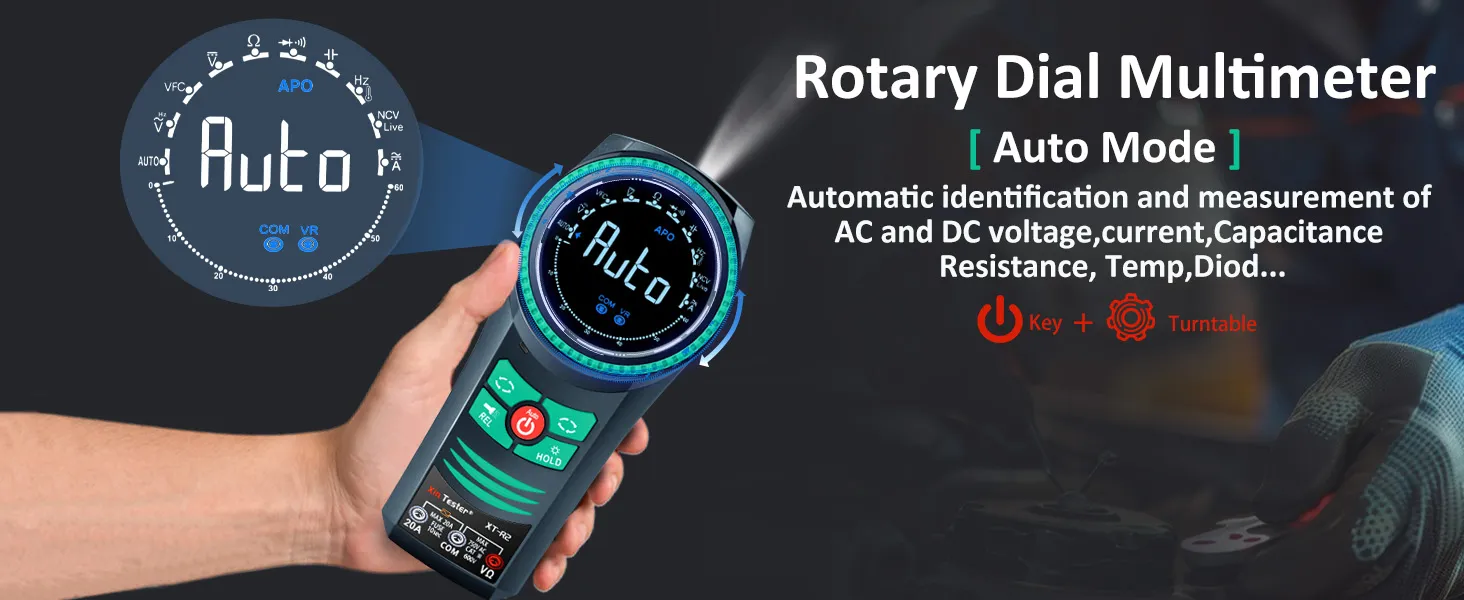

Professional rotary dial multimeter XT-R2 highlighting the smart Auto Mode for intelligent identification.

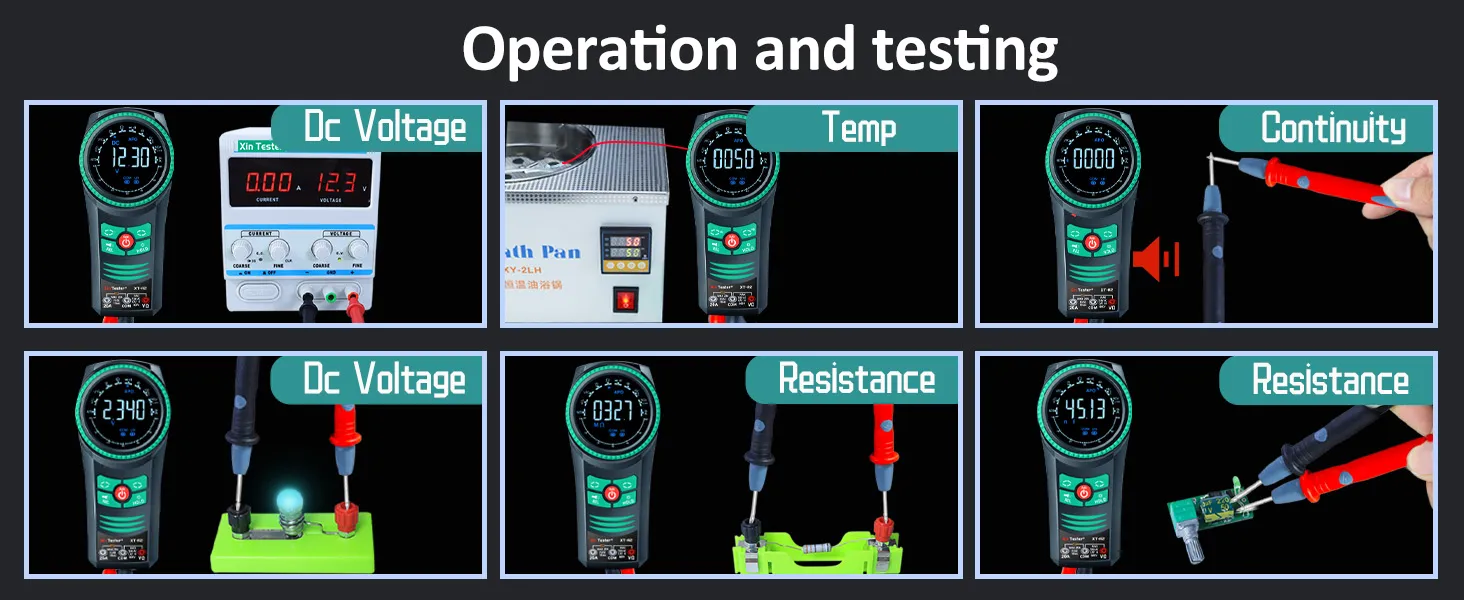

Grid showing Xin Tester XT-R2 measuring DC voltage, temperature, continuity, diode, resistance, and capacitance.

Using Xin Tester XT-R2 NCV function to detect live wires in a wall socket without contact.

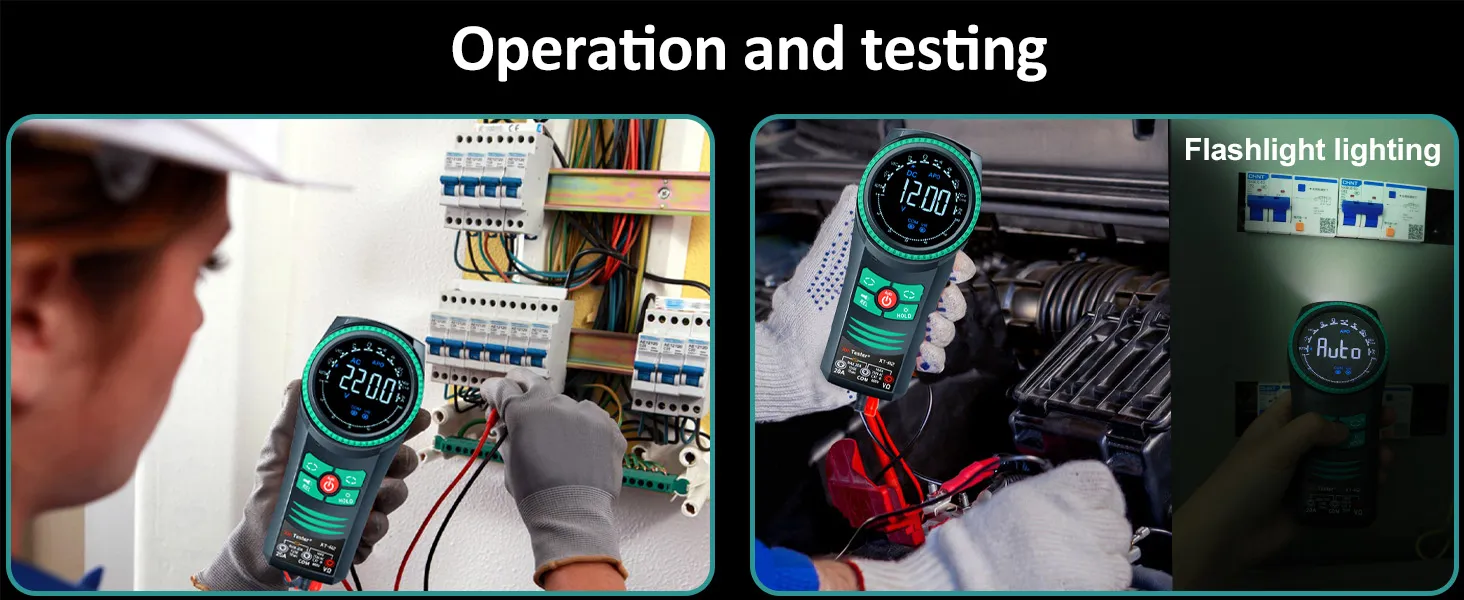

Using Xin Tester XT-R2 in an electrical panel, automotive engine bay, and dark environments with its flashlight.

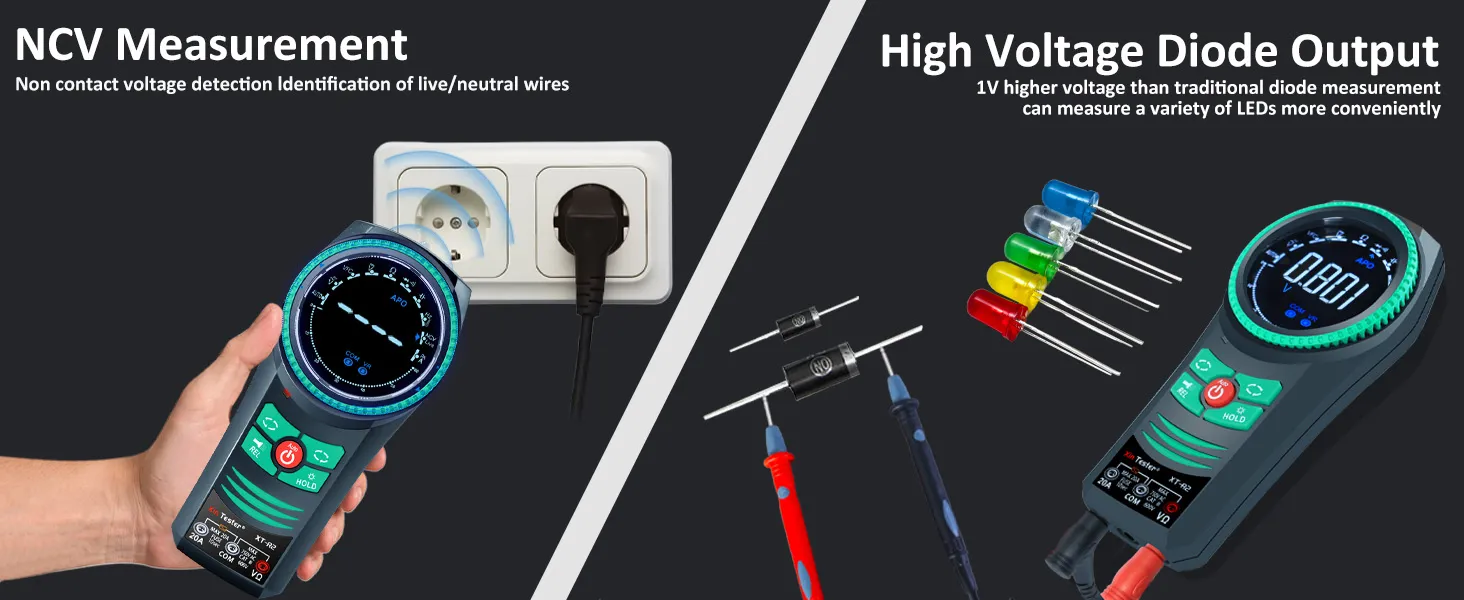

Xin Tester XT-R2 multimeter performing high voltage diode output measurement on various colored LEDs.

Dimensions and interface guide for Xin Tester XT-R2 showing buttons and screen layout.

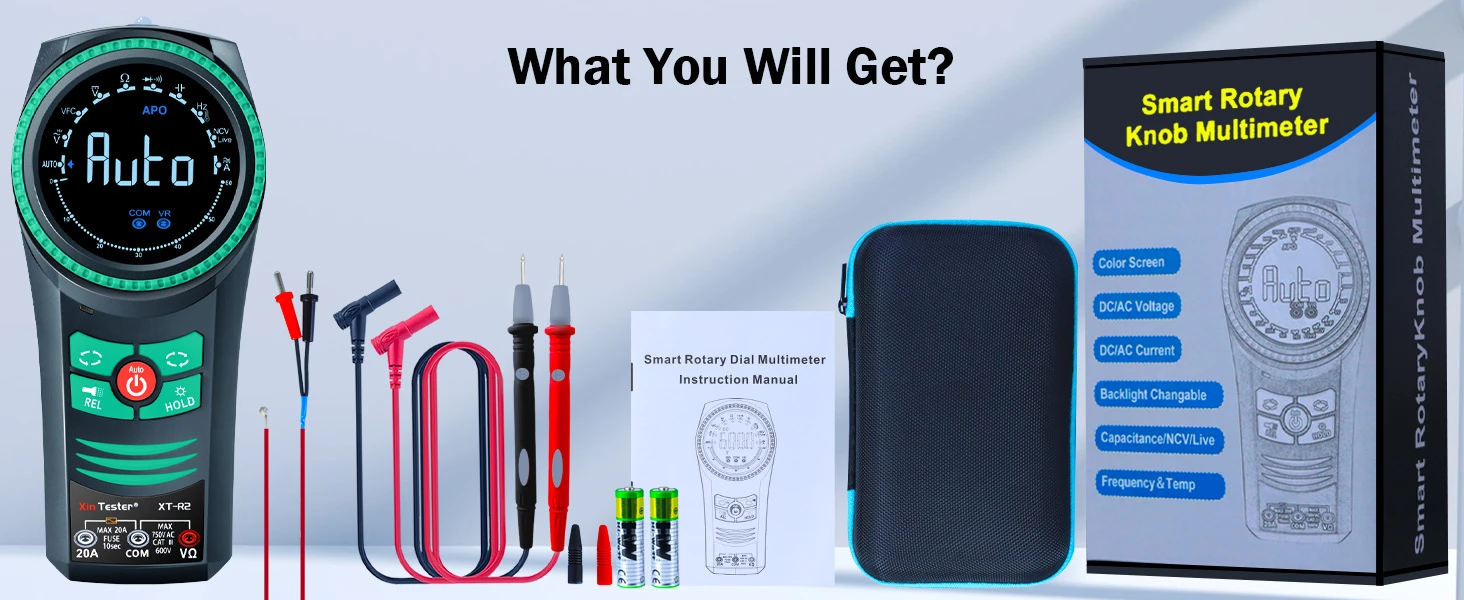

What you will get: Xin Tester XT-R2 multimeter, box, test leads, batteries, manual, and carrying case.

Features & Details

📟 6000-COUNT TRUE RMS	Measures AC/DC voltage, current, resistance, and capacitance with 6000-count auto-ranging.
🚨 NCV NON-CONTACT DETECT	Built-in non-contact voltage sensor alerts with acoustic buzzer and LED when near live cables.
🔦 REAR LED FLASHLIGHT	Integrated high-brightness flashlight illuminates dark circuit panels and domestic breaker boxes.
🛡️ DROP-PROOF HOLSTER	Impact-resistant rubber protective casing with rear test lead storage and tilt stand.

About this item

Product specification

Feature	Description
Brand	Xin Tester®
DC Voltage (DCV)	600mV ~ 1000V
AC Voltage (ACV)	6V ~ 750V
AC/DC Current	6A ~ 20A
Resistance	600Ω ~ 60MΩ
Capacitance	60nF ~ 60mF
Temperature Range	-20~1000℃ / 0~1832℉
Frequency	6Hz ~ 10MHz
Display Type	High light color display (Backlight display: √)
Maximum Display	5999 (3 5/6) bits
NCV / LIVE Measurement	√
Diode and Continuity Test	√
Data Keep / Auto Shutdown	√
Measurement / Sampling Rate	Double integral A/D conversion / About 3 times/S
Overrange Display	“OL” Displayed
Working Environment	0~40℃ / 32~104℉ (Relative humidity: <80%)
Power Supply	2 x 1.5V AAA batteries (Low voltage display: √)
Accessories	Test Leads, Thermometer Probe, English Manual, Batteries, Storage case

Professional Electrical Diagnostics & Circuit Verification

XinTester XT-R2 Professional Digital Multimeter Professional Series

Ensuring dependable accuracy during daily operations requires professional equipment engineered to withstand demanding laboratory and industrial environments. The XinTester XT-R2 Professional Digital Multimeter (TRMS 6000 Counts, Auto-Ranging, NCV) provides verified stability, user-friendly operation, and certified safety compliance across standard maintenance protocols. Discover our complete line of diagnostic and testing instruments in the Digital Multimeter catalog.

Comprehensive Testing Functions

Measures AC/DC voltage, current, resistance, capacitance, frequency, and rapid continuity with loud acoustic beeper feedback.

Smart User Features

Data hold freezes fluctuating values on screen, backed by automatic power-off and clear LED display backlighting in dark spaces.

💡

Testing Insight: CAT Rating Isolation in Electrical Multimeters

CAT III and CAT IV rated meters incorporate internal high-energy ceramic fuses and wide PCB creepage spacing to protect operators against explosive transient arc flashes.

Ordering & Model Verification

Verify voltage range, display counts, and included accessories before selecting your model in the right-side order box.

Related technical collections:
Digital Multimeter |
Digital Clamp Meter

xt-r2 multimeter with built in led flashlight illumination

xt-r2 multimeter displaying dc voltage resistance temperature

complete package contents of xin tester xt-r2 digital multimeter

Related products:
UNI-T UT890D+ manual-range multimeter

Product guides and documents

XT-R2 User Manual (PDF)

Use Cases

Home DIY & Repair Pocket Size Portable Safety & Protection True RMS Measurement

FAQs

Q1: How does the auto mode work on the XT-R2 multimeter?

A1: First, simply power on the device and turn the dial to the AUTO gear. The meter will then automatically recognize what you are testing. Specifically, it instantly detects AC/DC voltage, current, resistance, and capacitance. Ultimately, this eliminates the need for manual switching and speeds up your workflow.

Q2: Can I test high-temperature equipment with this tool?

A2: Yes, the multimeter comes with a dedicated thermometer probe. Specifically, you can measure extreme object temperatures ranging from -20℃ to 1000℃. Moreover, if you unplug the probe, the digital display will automatically show the ambient room temperature.

Q3: What does the NCV function do?

A3: NCV stands for Non-Contact Voltage measurement. First, it allows you to determine if a wire is energized without physically touching it. Additionally, it detects the electric field strength behind walls or panels. Consequently, it protects you from unexpected electrical shocks during diagnostic work.

Q4: Does the package include everything I need to start testing?

A4: Yes, the XT-R2 arrives as a complete testing kit. Specifically, the package includes the digital multimeter, test leads, and a thermometer probe. Furthermore, it provides two 1.5V AAA batteries, an English manual, and a durable storage case for transport.
