Features & Details
Achieve unparalleled precision in tight spaces. The UNI-T UT211B 60A Mini Digital Clamp Meter is an essential tool for electronics repair and automotive parasitic draw testing, offering a remarkable 0.1mA current resolution.
- 🎯 Ultra-High Precision: 6000 counts display with 0.1mA resolution for detecting the smallest DC/AC currents.
- ⚡ True RMS & VFC: Accurately measures distorted waveforms and features Variable Frequency Control for VFD motors.
- 🛡️ Safety First: Built-in NCV (Non-Contact Voltage) sensor protects you from hidden live wires.
- 🧰 Multifunctional: Measures AC/DC Voltage up to 600V, Resistance, Capacitance (up to 62mF), and Diode/Continuity.
About this item
| Basic Functions | Range | Accuracy |
|---|---|---|
| Brand | UNI-T® | |
| AC Current (A) | 600mA/6000mA/60A | ±(1.5%+10) |
| DC Current (A) | 6000mA/60A | ±(2%+3) |
| AC Voltage (V) | 6V/60V/600.0V/600V | ±(0.8%+3) |
| DC Voltage (V) | 600mV | ±(0.7%+5) |
| 6V/60V/600.0V/600V | ±(0.7%+3) | |
| Resistance (Ω) | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+2) |
| Capacitance (F) | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±(4%+5) |
| Max Display | 6000 | |
| Auto Range | √ | |
| True RMS | √ | |
| Diode Test | Approx. 3.0V | √ |
| VFC | √ | |
| NCV | √ | |
| Auto Power Off | Approx. 15 Minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤2.5V | √ |
| Data Hold | √ | |
| Zero Mode | √ | |
| LCD Backlight | √ | |
| Input Protection | √ | |
| Input Impedance | ≥10MΩ | √ |

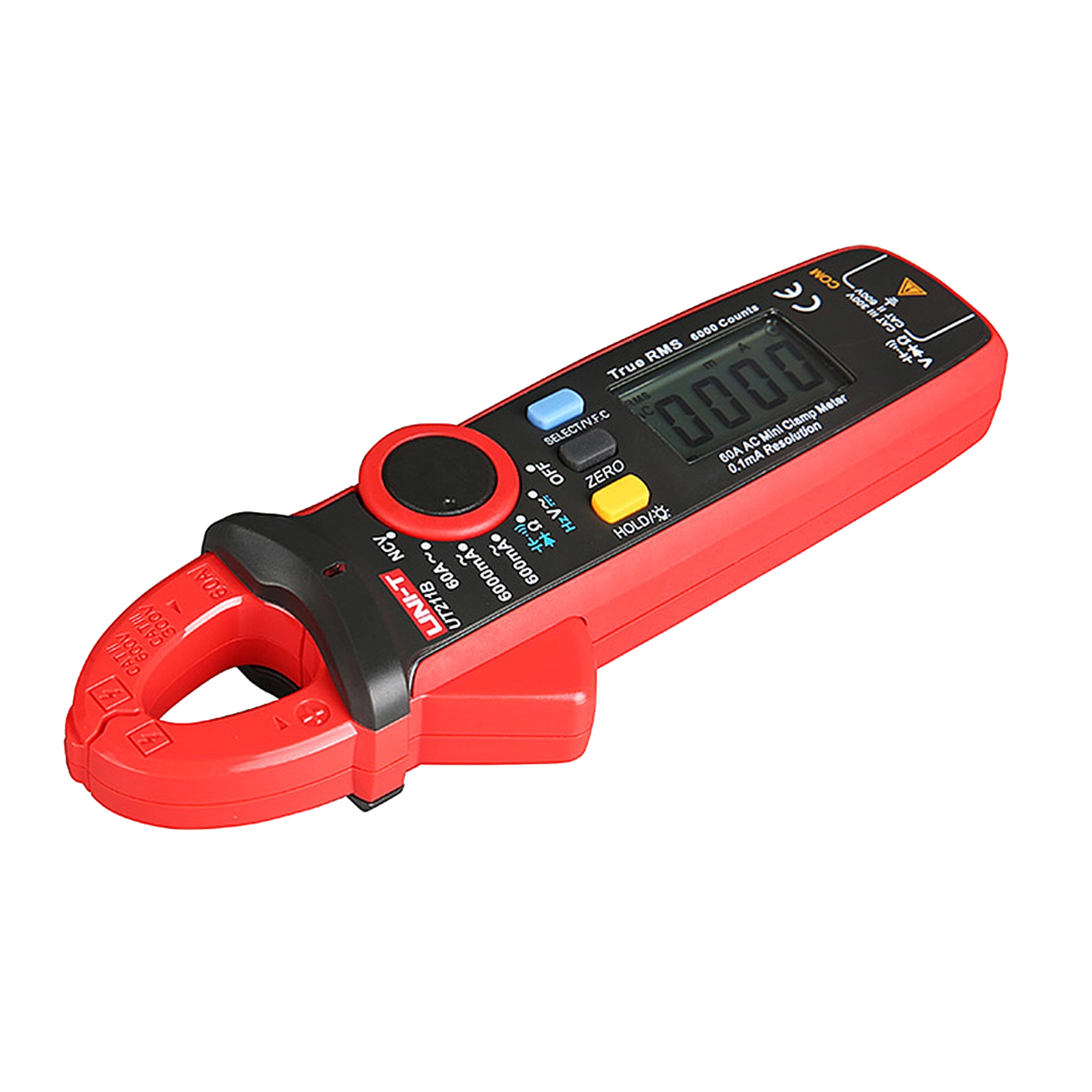

The High-Precision 60A Mini Digital Clamp Meter
Diagnosing modern electronics requires instruments with exceptional sensitivity. Therefore, Xin Tester proudly introduces the UNI-T UT211B 60A Mini Digital Clamp Meter. We engineered this ultra-compact device specifically for technicians who need to measure tiny currents. Furthermore, its lightweight design makes it the perfect companion for crowded electrical panels and automotive engine bays.
🎯

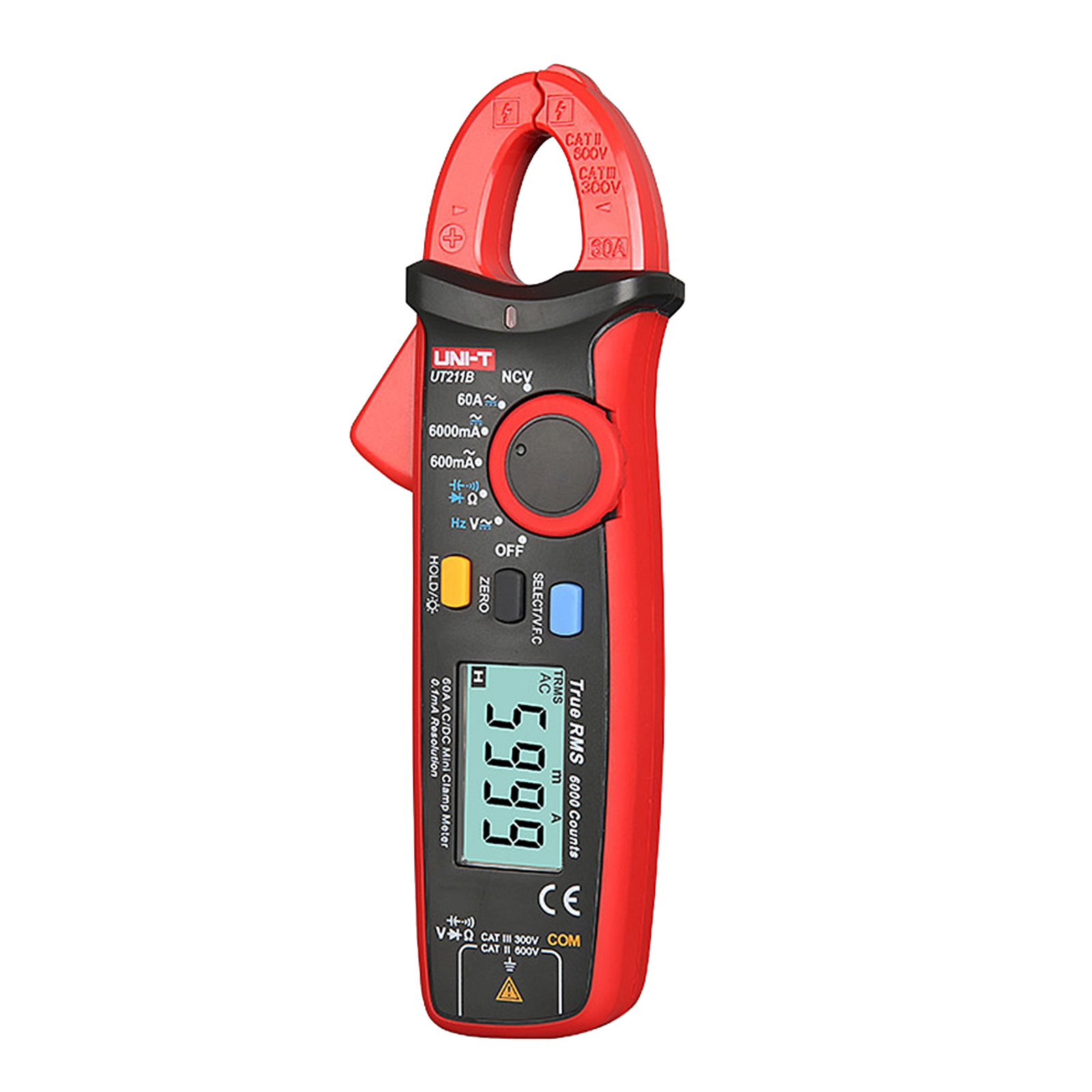

0.1mA Ultra-High Resolution
Most standard clamp meters cannot detect small milliamp loads. Conversely, the UT211B features a 6000-count display and a highly sensitive jaw. This allows you to accurately measure currents down to 0.1mA, making it ideal for automotive parasitic draw testing.
⚡
VFC & True RMS Technology
Electrical noise can easily skew your readings. Consequently, we integrated a VFC (Variable Frequency Control) mode to filter out high-frequency interference. The True RMS capability ensures accurate voltage and current readings on non-linear loads.
🛡️
NCV & DC Zero Mode
Stay safe with the built-in Non-Contact Voltage (NCV) sensor that alerts you to live wires. Additionally, the dedicated ZERO button quickly clears magnetic interference before taking DC current measurements.
🧰
Comprehensive Multimeter Functions
This is a complete diagnostic station in your hand. Beyond current, it measures AC/DC voltage up to 600V, resistance up to 60MΩ, large capacitance up to 62mF, and performs quick diode and continuity checks.
💡
Tech Insight: What is the VFC Function?
Modern industrial equipment relies heavily on variable-frequency drives to control motor speeds. Unfortunately, these drives generate high-frequency electrical noise that causes standard multimeters to display wild, inaccurate numbers.
Activating the VFC mode on this 60A Mini Digital Clamp Meter engages a built-in low-pass filter. This filter actively blocks high-frequency noise, giving you a stable and true reading of the fundamental voltage and current. For a deeper technical understanding of how this signal cleaning works, we recommend the highly respected Electronics Tutorials guide on Passive Low Pass Filters.
Upgrade Your Diagnostic Toolkit

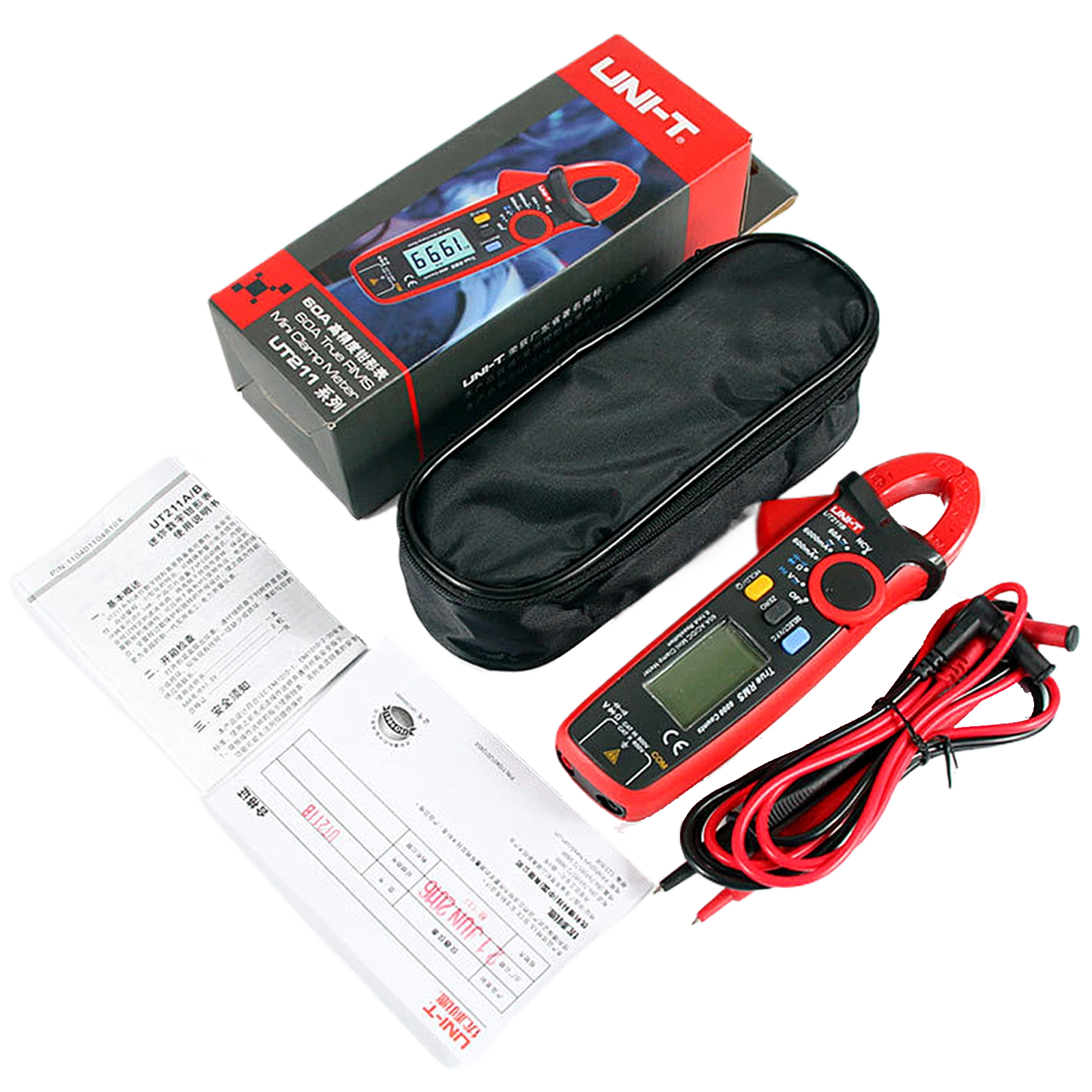

The UT211B package includes the clamp meter, premium test leads, a soft carrying pouch, and a user manual. Order today and experience precision measurement.
Need tools for heavier industrial applications?
Explore our full electrical testing range |
Contact support for assistance
FAQs
Q1: What does the 0.1mA resolution mean for my daily work?
A: Standard clamp meters struggle to measure tiny currents accurately. With its ultra-sensitive 0.1mA resolution on the 6000mA setting, the UT211B allows you to detect incredibly small leaks, such as parasitic battery drains in vehicles or standby power consumption in delicate electronics.
Q2: Can this meter measure both AC and DC current?
A: Yes, it measures both AC and DC currents up to 60A. For DC current measurement, the meter features a dedicated ZERO button that clears out any residual magnetic interference before testing, ensuring your readings are 100% accurate.
Q3: When should I use the VFC (Variable Frequency Control) mode?
A: You should activate the VFC mode whenever you are measuring voltage or current on devices driven by inverters or variable-frequency drives (like modern HVAC compressors or industrial motors). It filters out the high-frequency “noise” so you only measure the fundamental signal.
Q4: Is this compact meter safe for residential and commercial electrical testing?
A: Absolutely. Despite its mini size, the UT211B carries professional safety ratings (CAT II 600V and CAT III 300V). It also features an NCV (Non-Contact Voltage) sensor at the tip, which alerts you to the presence of live AC voltage before you make any physical contact with the wires.
