Sale!
Features & Details
| 📟 60,000-COUNT HIGH ACCURACY | High-precision 60,000-count True RMS multimeter with fast 0.03% basic DCV calibration accuracy. |
| 🛡️ LOZ GHOST VOLTAGE MODE | Low impedance mode discharges phantom/ghost voltages induced across adjacent dead wires. |
| 🔄 VFC INVERTER FILTER | Low-pass filter mode attenuates high-frequency PWM switching noise on variable frequency drives. |
| 📱 BLUETOOTH WIRELESS SYNC | Streams live electrical readings to mobile app for remote monitoring outside high-voltage panels. |
About this item
| Basic Functions | Range | Basic Accuracy |
|---|---|---|
| AC Voltage (V) | 600.00mV/6.0000V/60.000V/600.00V | ± (1% + 30) |
| AC Current (A) | 6.0000A/10.000A | ± (1.5% + 30) |
| DC Voltage (V) | 600.00mV/6.0000V/60.000V/600.00V | ± (0.3% + 10) |
| DC Current (A) | 6.0000A/10.000A | ± (0.5% + 10) |
| Auto AC Voltage / Auto-V LoZ | 600.0V | ± (1% + 3) |
| Low Pass Filter (LPF) | 600.0V | ± (2% + 3) |
| Frequency (Hz) | 99.99Hz/999.9Hz/9.999KHz/50.00KHz | ± (0.01% + 3) |
| Resistance (Ω) | 600.00Ω | ± (0.5% + 10) |
| 6.0000kΩ/60.000kΩ/600.00kΩ | ± (0.5% + 2) | |
| 6.0000MΩ | ± (0.5% + 5) | |
| 40.000MΩ | ± (3% + 5) | |
| Capacitance (F) | 1000nF/10.00uF/100.0uF | ± (1.9% + 5) |
| 10000uF | ± (2.5% + 5) | |
| Display Count | 60,000 | |
| Continuity Test | √ | |
| Diode Test | √ | |

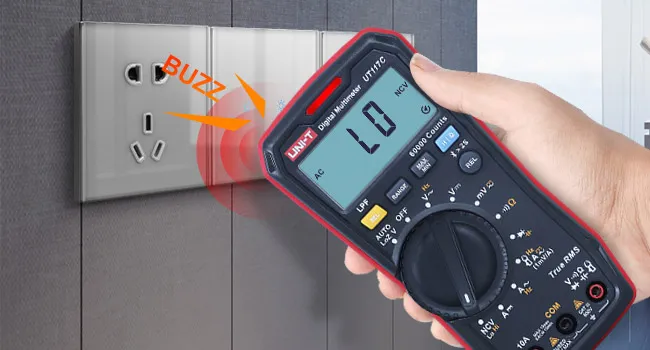

| NCV (LO/HI) | √ | |
| Data Hold | √ | |
| Manual/Auto Range Selection | √ | |
| Max/Min Value | √ | |
| Relative Value (REL) | √ | |
| High Voltage Alarm | √ | |

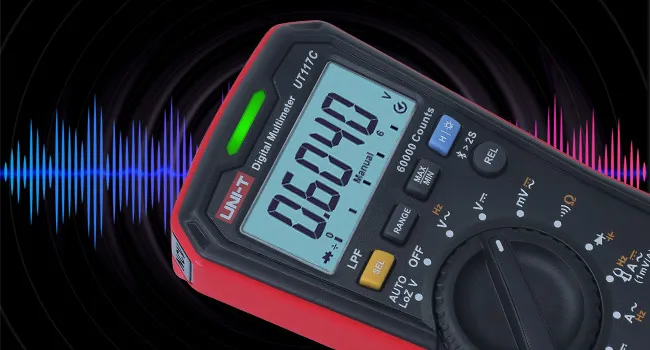

| Audible & Visual Alarm | √ | |
| Low Battery Indication | √ | |
| Auto Power Off | Approx. 15 minutes | |
| LCD Backlight | Backlight turns off automatically after 5 minutes. | |
| Bluetooth Communication | √ | |
| Drop Test | 2m drop test, accuracy guaranteed | |
| Safety Rating | CAT III 600V | |
| Certifications | CE, cETLus, UKCA, REACH, ROHS | |
| Power | 1.5V Battery (AAA) x 3 | |

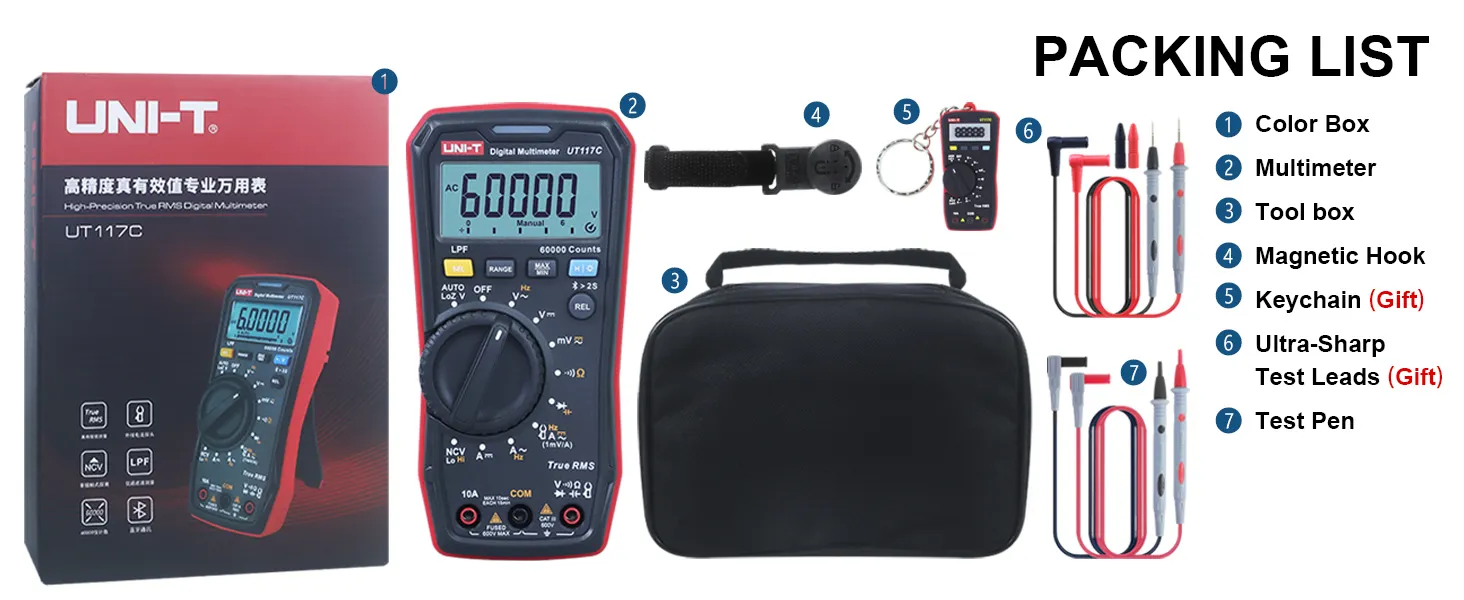

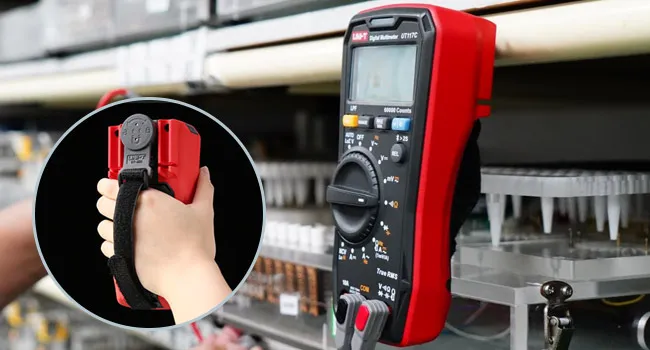

| Standard Accessories | Test leads, Battery, Magnetic hanging strap | |
Professional Electrical Diagnostics & Circuit Verification

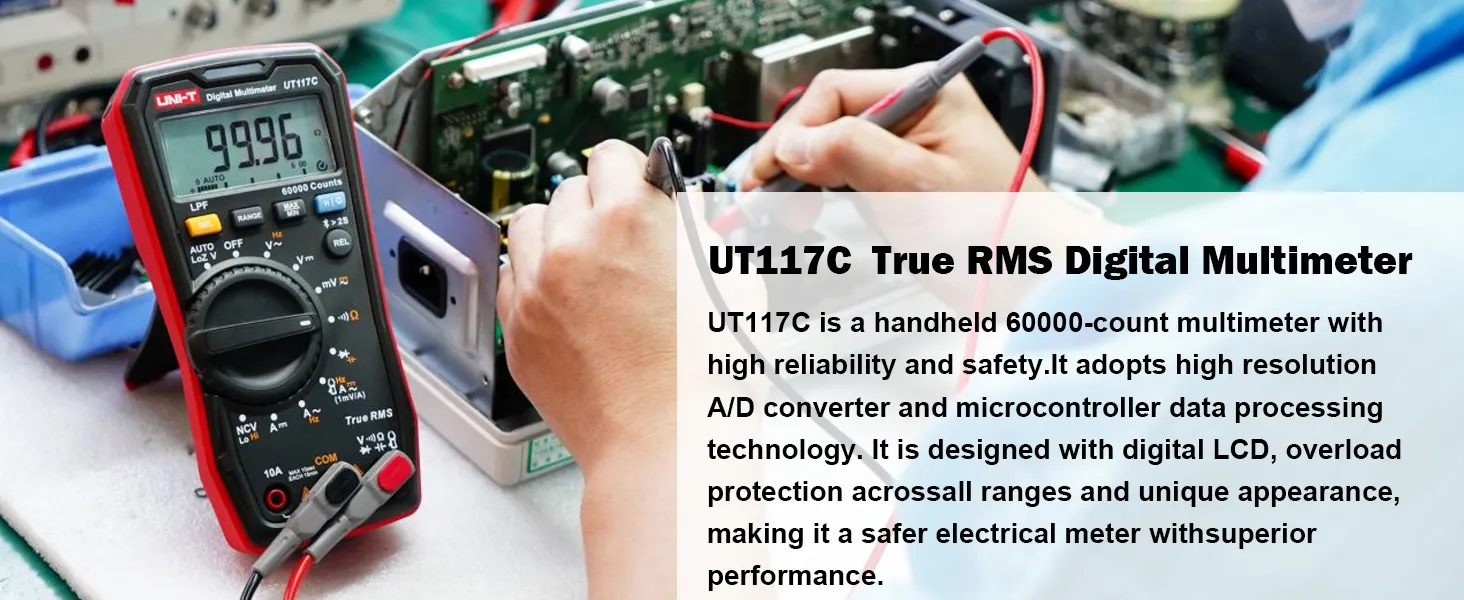

UT117C High Precision Digital Multimeter, 60000 Counts True RMS Bluetooth Tester with LPF/LoZ Professional Series
Ensuring dependable accuracy during daily operations requires professional equipment engineered to withstand demanding laboratory and industrial environments. The UNI-T UT117C High Precision Digital Multimeter, 60000 Counts True RMS Bluetooth Tester with LPF/LoZ provides verified stability, user-friendly operation, and certified safety compliance across standard maintenance protocols. Discover our complete line of diagnostic and testing instruments in the Digital Multimeter catalog.
Comprehensive Testing Functions
Measures AC/DC voltage, current, resistance, capacitance, frequency, and rapid continuity with loud acoustic beeper feedback.
Smart User Features

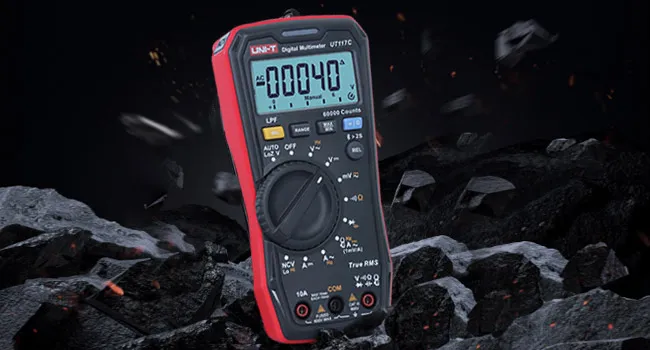

Data hold freezes fluctuating values on screen, backed by automatic power-off and clear LED display backlighting in dark spaces.
💡
Testing Insight: CAT Rating Isolation in Electrical Multimeters
CAT III and CAT IV rated meters incorporate internal high-energy ceramic fuses and wide PCB creepage spacing to protect operators against explosive transient arc flashes.
Ordering & Model Verification
Verify voltage range, display counts, and included accessories before selecting your model in the right-side order box.
Related technical collections:
Digital Multimeter |
Digital Clamp Meter
Related products:
UT105+ car diagnostic multimeter
Product guides and documents
UT117C User Manual (PDF)FAQs

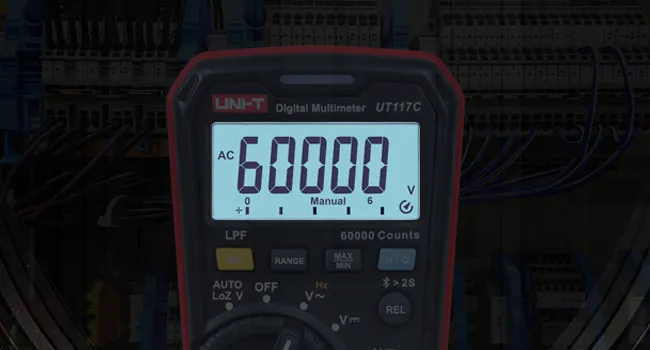

Q1: What is the main benefit of the 60,000-count display?
A: Standard meters round off numbers too early. Conversely, a 60,000-count display provides an extra decimal point of high resolution. Ultimately, you capture microscopic voltage changes accurately during delicate circuit repairs.

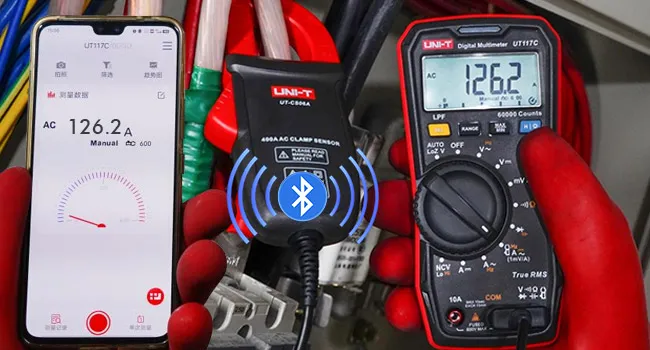

Q2: How does the Bluetooth data logging feature work?
A: You simply download the official UNI-T smart measurement app. Next, you connect your smartphone to the meter wirelessly. Consequently, you can record, chart, and export your test results instantly in CSV or PDF formats.
Q3: When should I activate the Low Impedance (LoZ) mode?
A: Long, unused wire runs often accumulate capacitive ghost voltages. If you use a standard high-impedance meter, you get false positive readings. Therefore, you activate LoZ mode to dissipate this phantom energy and reveal the true voltage safely.
Q4: Is this multimeter durable enough for outdoor construction sites?
A: Yes, absolutely. We engineered the UT117C to withstand brutal industrial conditions. Specifically, it easily survives a 2-meter drop onto solid concrete. Furthermore, it operates safely in strict CAT III 600V electrical environments.
UNI-T UT117C High Precision Digital Multimeter, 60000 Counts True RMS Bluetooth Tester with LPF/LoZ
Original price was: $189.99.$169.99Current price is: $169.99.
6–12 Month Warranty
Repair & Refund support available for most products.
Free Worldwide Shipping
Ships within 3 business days.
Taxes & Duties
Buyer responsible for local import fees.
24/7 After-Sales Support
Technical assistance & video guidance within 24h.
UNI-T UT117C High Precision Digital Multimeter, 60000 Counts True RMS Bluetooth Tester with LPF/LoZ
Sale!
Original price was: $189.99.$169.99Current price is: $169.99.
Features & Details
| 📟 60,000-COUNT HIGH ACCURACY | High-precision 60,000-count True RMS multimeter with fast 0.03% basic DCV calibration accuracy. |
| 🛡️ LOZ GHOST VOLTAGE MODE | Low impedance mode discharges phantom/ghost voltages induced across adjacent dead wires. |
| 🔄 VFC INVERTER FILTER | Low-pass filter mode attenuates high-frequency PWM switching noise on variable frequency drives. |
| 📱 BLUETOOTH WIRELESS SYNC | Streams live electrical readings to mobile app for remote monitoring outside high-voltage panels. |
| Basic Functions | Range | Basic Accuracy |
|---|---|---|
| AC Voltage (V) | 600.00mV/6.0000V/60.000V/600.00V | ± (1% + 30) |
| AC Current (A) | 6.0000A/10.000A | ± (1.5% + 30) |
| DC Voltage (V) | 600.00mV/6.0000V/60.000V/600.00V | ± (0.3% + 10) |
| DC Current (A) | 6.0000A/10.000A | ± (0.5% + 10) |
| Auto AC Voltage / Auto-V LoZ | 600.0V | ± (1% + 3) |
| Low Pass Filter (LPF) | 600.0V | ± (2% + 3) |
| Frequency (Hz) | 99.99Hz/999.9Hz/9.999KHz/50.00KHz | ± (0.01% + 3) |
| Resistance (Ω) | 600.00Ω | ± (0.5% + 10) |
| 6.0000kΩ/60.000kΩ/600.00kΩ | ± (0.5% + 2) | |
| 6.0000MΩ | ± (0.5% + 5) | |
| 40.000MΩ | ± (3% + 5) | |
| Capacitance (F) | 1000nF/10.00uF/100.0uF | ± (1.9% + 5) |
| 10000uF | ± (2.5% + 5) | |
| Display Count | 60,000 | |
| Continuity Test | √ | |
| Diode Test | √ | |
| NCV (LO/HI) | √ | |
| Data Hold | √ | |
| Manual/Auto Range Selection | √ | |
| Max/Min Value | √ | |
| Relative Value (REL) | √ | |
| High Voltage Alarm | √ | |
| Audible & Visual Alarm | √ | |
| Low Battery Indication | √ | |
| Auto Power Off | Approx. 15 minutes | |
| LCD Backlight | Backlight turns off automatically after 5 minutes. | |
| Bluetooth Communication | √ | |
| Drop Test | 2m drop test, accuracy guaranteed | |
| Safety Rating | CAT III 600V | |
| Certifications | CE, cETLus, UKCA, REACH, ROHS | |
| Power | 1.5V Battery (AAA) x 3 | |
| Standard Accessories | Test leads, Battery, Magnetic hanging strap | |
Professional Electrical Diagnostics & Circuit Verification
UT117C High Precision Digital Multimeter, 60000 Counts True RMS Bluetooth Tester with LPF/LoZ Professional Series
Ensuring dependable accuracy during daily operations requires professional equipment engineered to withstand demanding laboratory and industrial environments. The UNI-T UT117C High Precision Digital Multimeter, 60000 Counts True RMS Bluetooth Tester with LPF/LoZ provides verified stability, user-friendly operation, and certified safety compliance across standard maintenance protocols. Discover our complete line of diagnostic and testing instruments in the Digital Multimeter catalog.
Comprehensive Testing Functions
Measures AC/DC voltage, current, resistance, capacitance, frequency, and rapid continuity with loud acoustic beeper feedback.
Smart User Features
Data hold freezes fluctuating values on screen, backed by automatic power-off and clear LED display backlighting in dark spaces.
💡
Testing Insight: CAT Rating Isolation in Electrical Multimeters
CAT III and CAT IV rated meters incorporate internal high-energy ceramic fuses and wide PCB creepage spacing to protect operators against explosive transient arc flashes.
Ordering & Model Verification
Verify voltage range, display counts, and included accessories before selecting your model in the right-side order box.
Related technical collections:
Digital Multimeter |
Digital Clamp Meter
Related products:
UT105+ car diagnostic multimeter
