Using the XT-V2 True RMS digital multimeter to test live fire wire and measure DC current accurately

Complete package of the XT-V2 True RMS digital multimeter including test leads, temperature probe, and user manual

XT-V2 True RMS digital multimeter automatically testing AC voltage in a wall outlet

XT-V2 True RMS digital multimeter using Non-Contact Voltage NCV detection safely near a power outlet

XT-V2 True RMS digital multimeter testing water temperature with a probe and measuring an electronic capacitor

Internal structure of the XT-V2 True RMS digital multimeter showing the smart circuit board and anti-burn dual ceramic fuses

Large 9999 counts LCD screen on the XT-V2 True RMS digital multimeter showing clear measurement data

Electrician using the XT-V2 True RMS digital multimeter with dual LED flashlights turned on in a dark environment

Features & Details

📟 9999 COUNTS TRMS

Delivers high-precision True RMS sine wave measurements natively. The massive 9999 counts large screen displays exact 4-digit values clearly.

⚡ 1000V CAPACITY

Accurately measures heavy AC/DC voltage up to 1000V. It features an intelligent dual-mode system for automatic or manual range selection easily.

🌡️ TEMP & CAPACITANCE

Widely used to measure 99.99mF capacitance and extreme temperatures up to 1000°C. It handles all demanding industrial electrical problems safely.

🛡️ ANTI-BURN SAFETY

Built with a double ceramic fuse design and anti-burnout overload protection securely. The silicone cover protects the meter from harsh physical wear.

About this item

Product specification

Attribute

Specifications

Model

Xin Tester XT-V2

Display Resolution

9999 Counts Large LCD Display (with Backlight)

Measurement Mode

Intelligent Dual Mode (Auto-Ranging + Manual) with True RMS

AC/DC Voltage Range

600.0mV / 9.999V / 99.99V / 999.9V (Up to 1000V)

AC/DC Current Range

999.9mA / 10A

Resistance Range

999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ

Capacitor Range

9.999nF / 999.9nF / 9.999uF / 99.99uF / 999.9uF / 9.999mF / 99.99mF

Temperature Range

-40°C to 1000°C (-40°F to 1832°F)

Frequency Range

100Hz / 1000Hz

Additional Functions

NCV (Non-Contact Voltage), Live Wire ID, Diode Test (1V), Line On-Off Test (1Ω), Dual LED Flashlight

Battery Power

2 x AAA batteries (Included)

Safety & Protection

Double Insulation, Anti-Burnout Dual Ceramic Fuses, Thick Silicone Cover

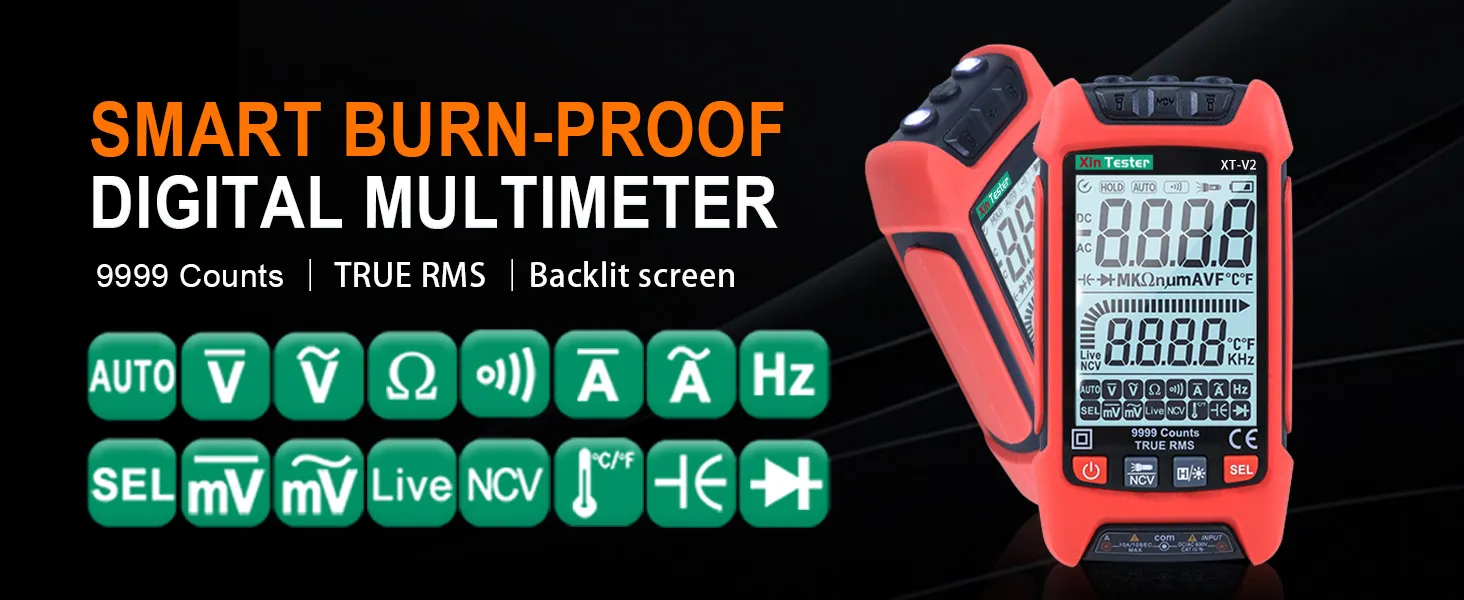

Smart burn-proof testing tool XT-V2 overview with 9999 counts display

Intelligent Diagnostics for Complex Circuits

Diagnosing modern automotive and heavy industrial electrical problems is very dangerous work. Cheap testers burn out instantly when they hit unexpected 1000V spikes. To prevent dangerous electric shocks, every electrician needs an advanced True RMS digital multimeter daily. The Xin Tester XT-V2 identifies AC and DC voltage automatically. You can measure complex circuits without constantly turning a manual dial. It saves massive amounts of time during commercial facility maintenance. Are you upgrading your professional diagnostic equipment? Please explore our full Electrical Tester Meter collection today. You will secure the most reliable hardware for your projects.

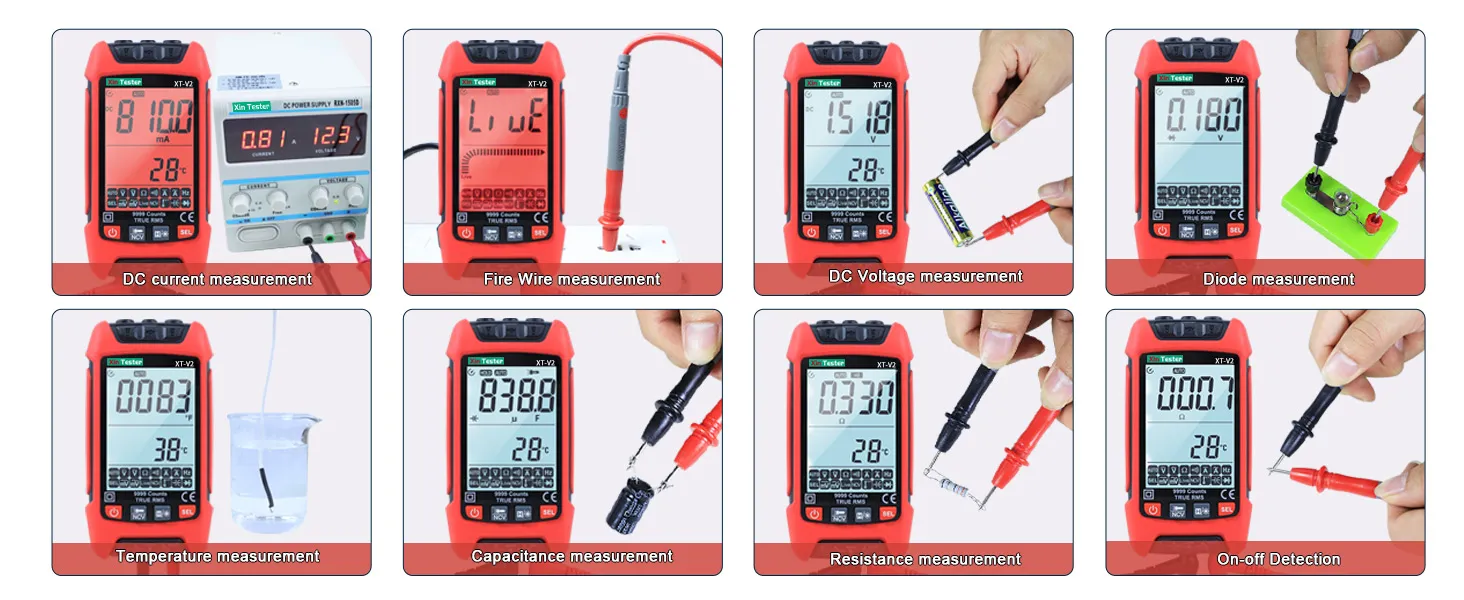

Collage of 8 measurement modes including DC voltage and diode test

Massive 9999 Counts Precision

Reading tiny numbers inside a dark server cabinet causes frustrating diagnostic errors. This True RMS digital multimeter boasts a massive 9999 counts LCD screen natively. It displays highly precise 4-digit values clearly. The screen features an automatic bright backlight that turns on in dim environments. You get accurate sine wave readings instantly without holding a flashlight.

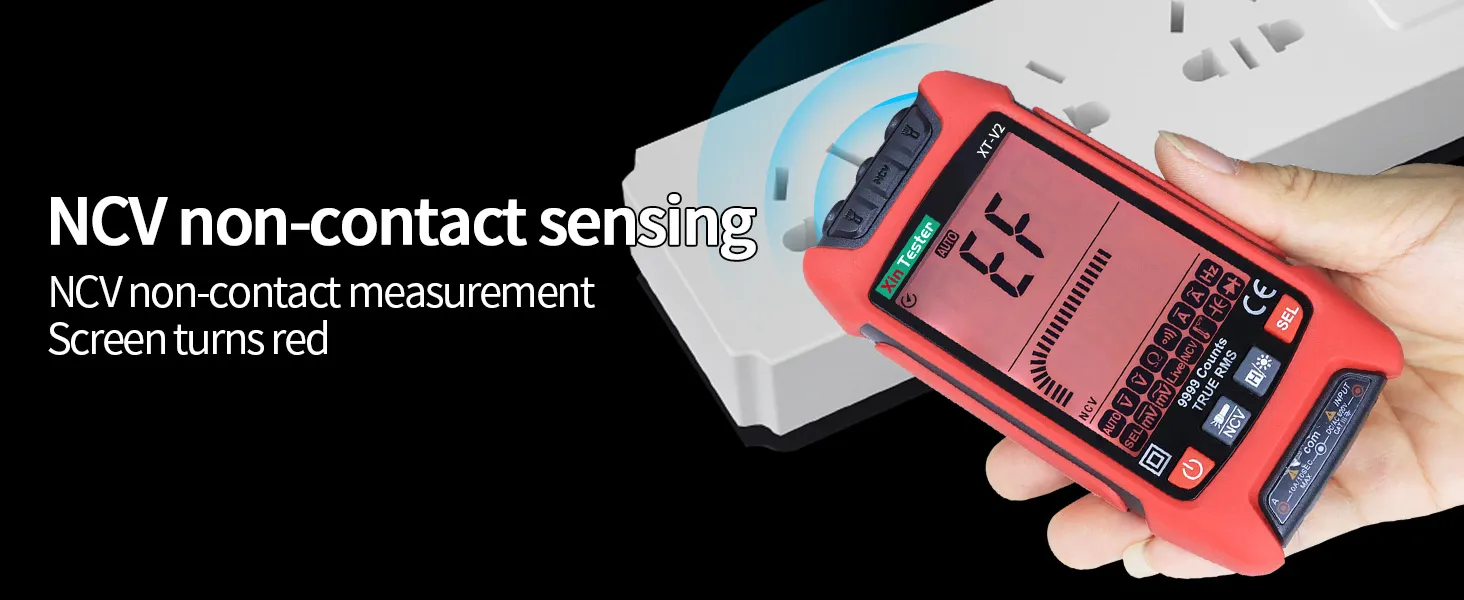

NCV non-contact voltage sensing feature on Digital Multimeter for safety

Non-Contact Voltage (NCV) Detection

Identifying live power lines behind thick drywall is dangerous. The built-in NCV sensor acts as a highly sensitive safety shield. The instrument can safely detect whether the measured wire holds more than 90V AC voltage. When it detects a live fire wire, the screen turns a bright warning red immediately. The arrow signal fills up and the internal buzzer screams loudly to warn you.

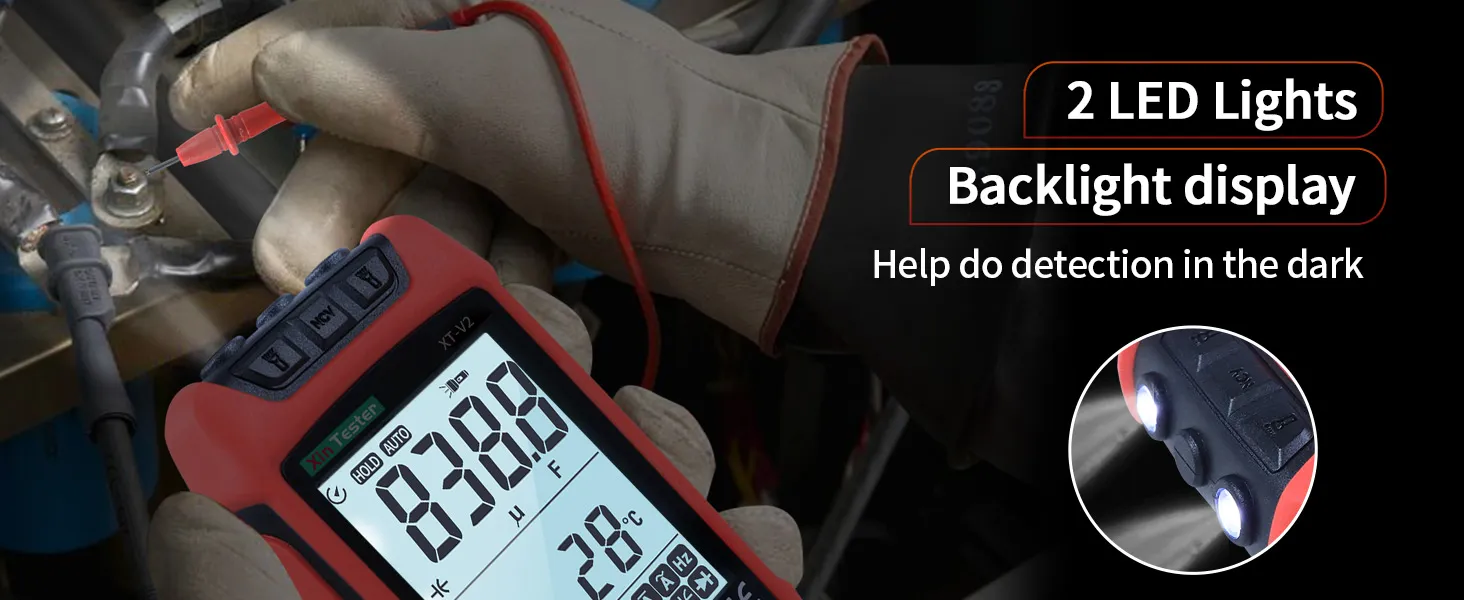

High-precision True RMS digital multimeter with dual LED flashlights

🛡️ Anti-Burn Safety

Safety is the absolute top priority. The XT-V2 features a robust double ceramic fuse design. This strict overload protection effectively shields the instrument from catastrophic high-voltage spikes.

🌡️ Temperature Test

This highly versatile meter measures extreme temperatures. It operates safely from -40°C up to 1000°C (-40°F to 1832°F). It is perfect for HVAC system diagnostics.

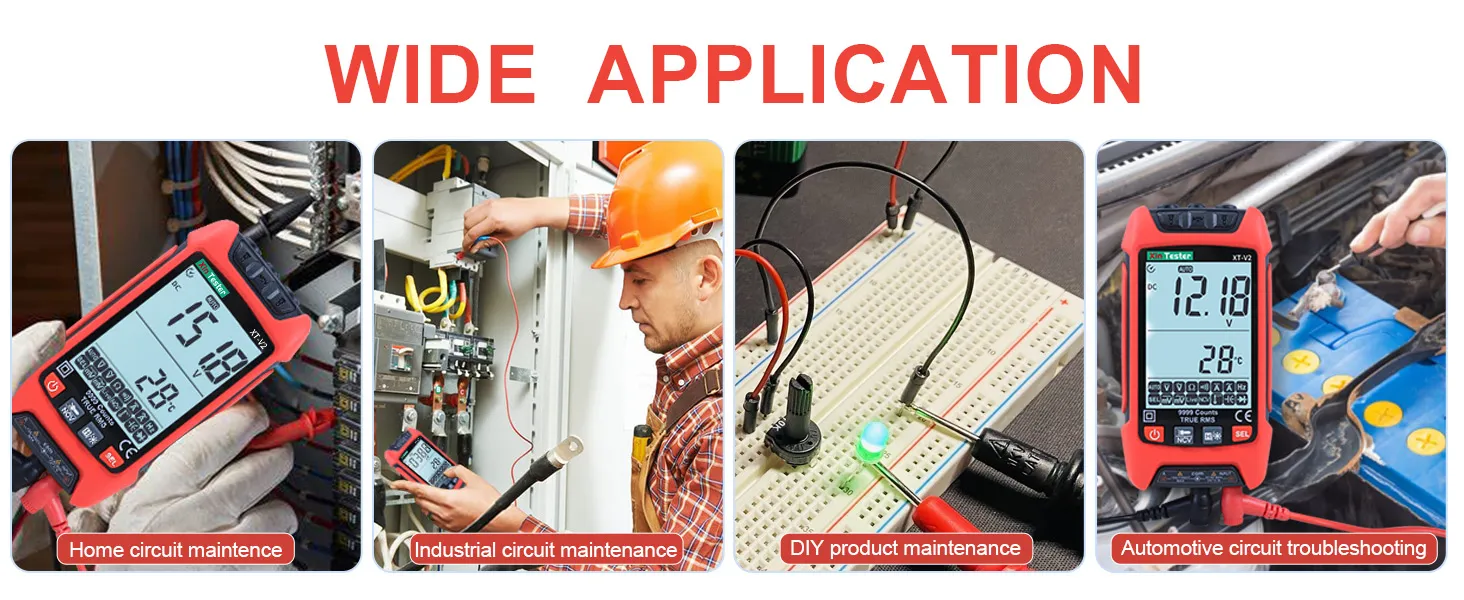

Wide application of the smart tester in automotive and industrial fields

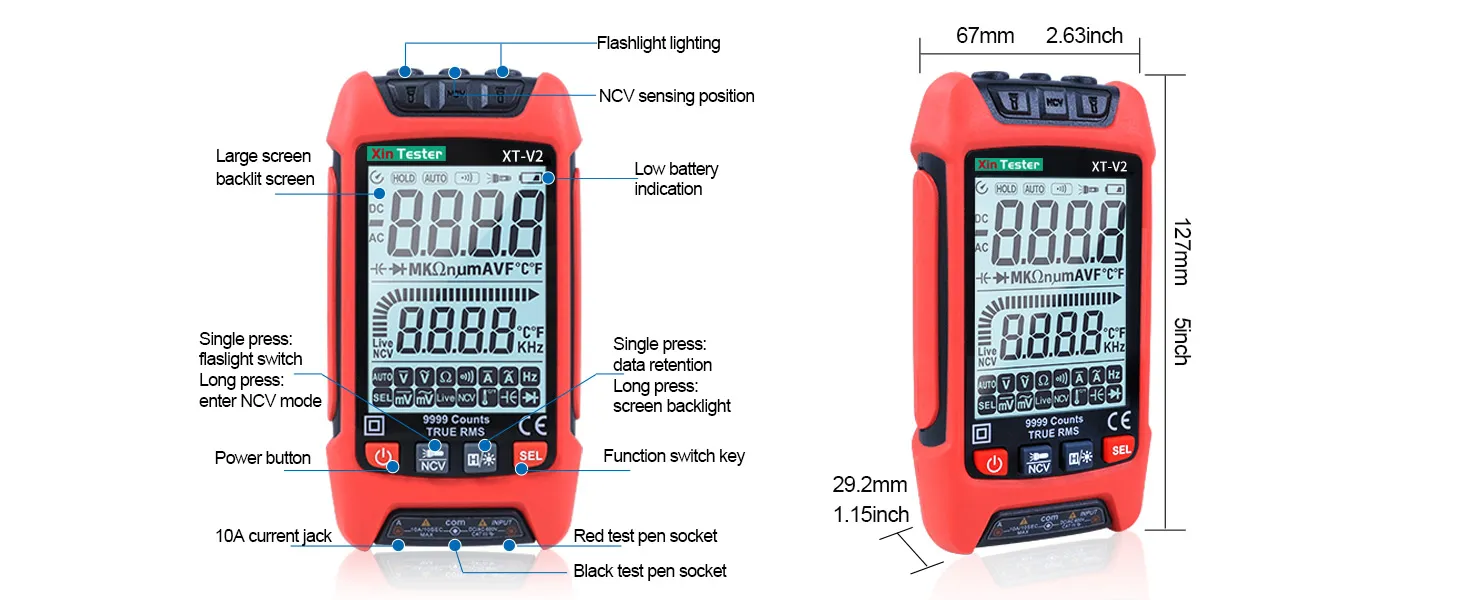

Physical dimensions and button layout of the XT-V2 smart tester

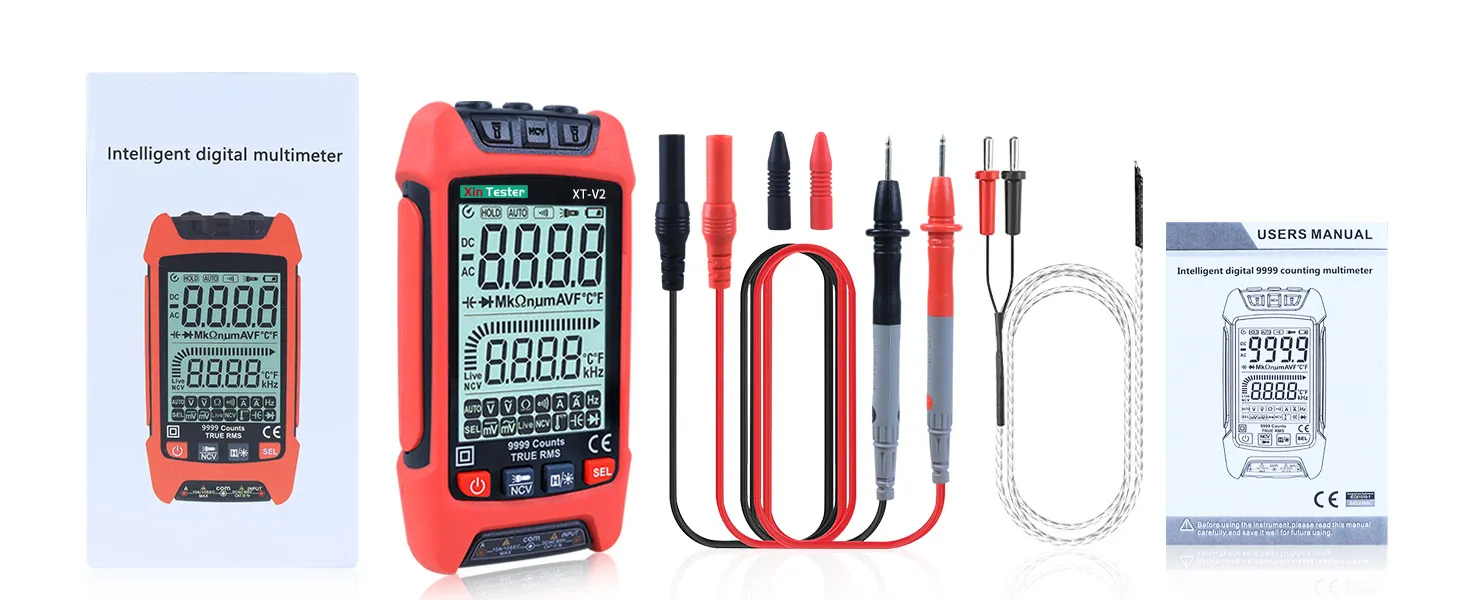

True RMS digital multimeter kit packing list with test leads

Relying on a cheap tester puts your life at serious risk daily. A professional True RMS digital multimeter guarantees absolute safety and exact data readings. The thick silicone cover protects the meter from harsh physical wear and tear on dirty jobsites. Electrical professionals adhere strictly to global safety guidelines to avoid injury. You can review the official IEEE electrical testing standards to understand correct diagnostic protocols. Equip yourself with the advanced XT-V2 meter right now.

Use Cases

Auto Diagnostics & Repair Non-Contact Testing True RMS Measurement

FAQs

Q1: Can this True RMS digital multimeter measure temperature accurately?

A: Yes, the XT-V2 comes with a dedicated temperature probe. It can safely and accurately measure extreme temperatures ranging from -40°C up to 1000°C (-40°F to 1832°F), making it an ideal diagnostic tool for HVAC systems, automotive engines, and industrial heating equipment.

Q2: What is the difference between the 9999 counts display on the XT-V2 and a standard 6000 counts meter?

A: A 9999 counts display offers significantly higher resolution and precision. It means the True RMS digital multimeter can display exact 4-digit values up to 9.999 before it has to jump to the next range scale (e.g., 10.00). This provides much finer detail when measuring sensitive electronics compared to a 6000 counts meter.

Q3: Is it safe to test live household outlets using the NCV function?

A: Absolutely. The Non-Contact Voltage (NCV) feature is designed specifically for your safety. You don’t need to insert any probes into the outlet. Just hold the top of the meter near the socket or wire. If AC voltage is present, the screen will flash, and the buzzer will sound, allowing you to identify live wires safely.

Q4: Can the XT-V2 multimeter test large industrial capacitors?

A: Yes, the XT-V2 features a very broad capacitance measurement range. It can accurately test everything from tiny 9.999nF electronic components on a circuit board up to massive 99.99mF industrial motor start capacitors.

Xin Tester XT-V2 True RMS Digital Multimeter (9999 Counts, 1000V)

Original price was: $29.99.Current price is: $25.37.

Extra 5% Off over $69 with code: dual26

Extra 5% Off with code: welcome5

6–12 Month Warranty

Repair & Refund support available for most products.

Free Worldwide Shipping

Ships within 3 business days.

Taxes & Duties

Buyer responsible for local import fees.

24/7 After-Sales Support

Technical assistance & video guidance within 24h.
