Sale!
Product dimensions of the standard laboratory test sieve showing diameter and height.
Professional 304 stainless steel laboratory test sieve set for soil and grain grading.
Professional 304 stainless steel laboratory test sieve set for soil and grain grading.
Professional 304 stainless steel laboratory test sieve set for soil and grain grading.
Detailed features of lab sieve: double-layer frame, smooth edges, and precision mesh.
Professional pure stainless steel laboratory test sieve pan with matching lid.
Food grade 304 stainless steel test sieve with strong reinforced design.
Secure nestable design for stacking multiple laboratory sieves.
Dimensions of 20cm diameter laboratory sieve pan showing height and width in inches and cm.
Pure stainless steel sieve pan highlighting corrosion and heat resistance features.
Laboratory sieve stacked on a receiving pan for filtering fine powder.
Hand placing a matching lid on a laboratory sieve pan for dustproof protection.
Underside view of the thickened and flat bottom of a stainless steel sieve pan.
Comparison between chromium plated steel and stainless steel material for sieve pans.
Standard lab sieve size reference chart showing mesh count to micron conversion.

Features & Details

📏 8-INCH (200MM) DIAMETER Standard laboratory size compatible with automated mechanical sieve shakers and vibration tables worldwide.
📐 3 TO 2800 MESH RANGE Precision woven stainless steel wire mesh spanning from coarse 3 mesh (6.7mm) down to 2800 mesh (4.5μm).
🛡️ DUAL SUS304 LAYOUT Both frame and wire cloth are fabricated from food-grade SUS304 stainless steel with mirror-polished finish.
🔄 INTERLOCKING RIM Interlocking top and bottom rims enable multi-stage stack assembly with collection pans and dust-tight lids.

About this item

Feature Description
Brand Xin Tester®
Material Full 304 Pure Stainless Steel (Frame & Mesh)
Safety Grade 100% Food-Grade & Dishwasher Safe
Diameter 20cm / Approx. 7.9 inches
Height 6.5cm (Extra Deep Design)
Mesh Range Full Variety from 3 Mesh to 2800 Mesh
Craftsmanship One-piece stamping, mirror polished, burr-free edges
Features Stackable, rust-proof, high temperature resistant
This Xin Tester® Pure 304 Stainless Steel Test Sieve is the ultimate professional tool for both high-capacity laboratory analysis and premium culinary sifting. With its 6.5cm deep frame and dishwasher-safe pure metal construction, it ensures unmatched hygiene and durability for all your particle separation needs.

Particle Size Analysis & Material Classification

Full Stainless Steel Test Sieve Professional Series

Ensuring dependable accuracy during daily operations requires professional equipment engineered to withstand demanding laboratory and industrial environments. This instrument provides verified stability and certified safety compliance across standard protocols. Discover our complete catalog in the Product collection.

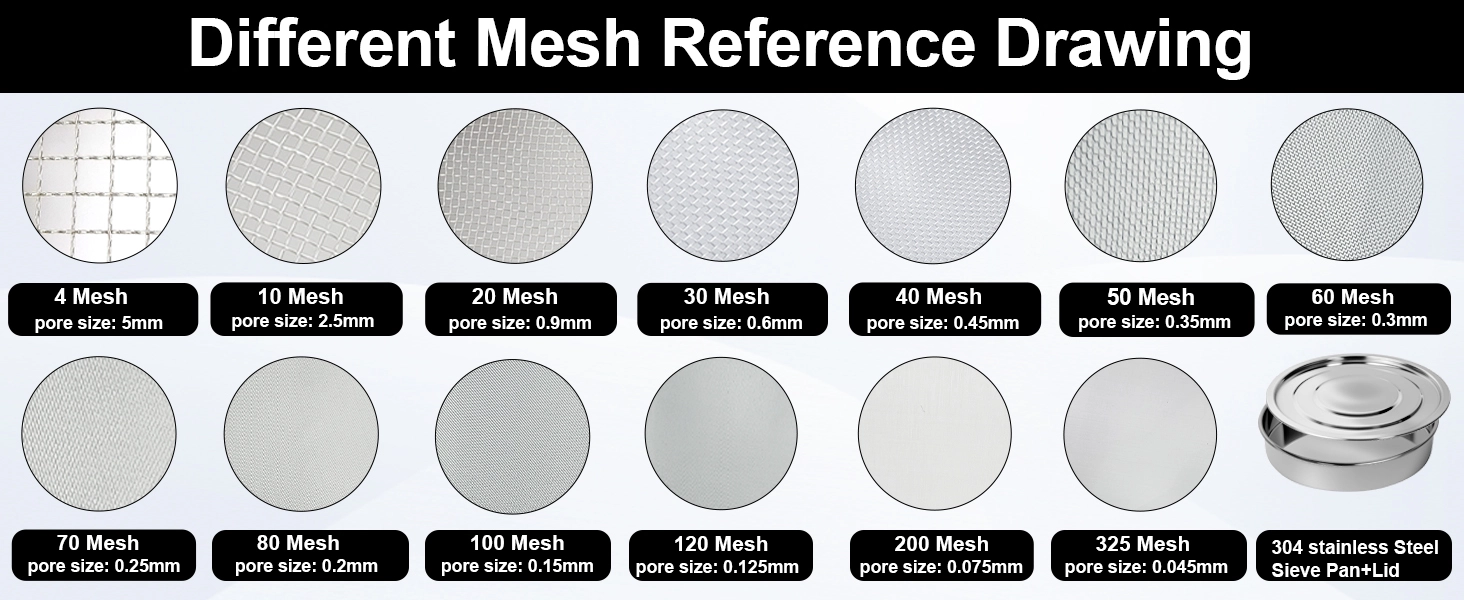

Visual reference drawing of different sieve mesh sizes from 4 mesh to 400 mesh with pore size details.

High-Tension Wire Cloth

The stainless steel wire cloth is tensioned and locked seamlessly into the frame perimeter, eliminating sample entrapment crevices and facilitating complete particulate recovery.

Traceable Precision Standard

Every sieve is permanently laser-etched with its nominal aperture, standard designation, and traceability data to support QA/QC laboratory audit compliance.

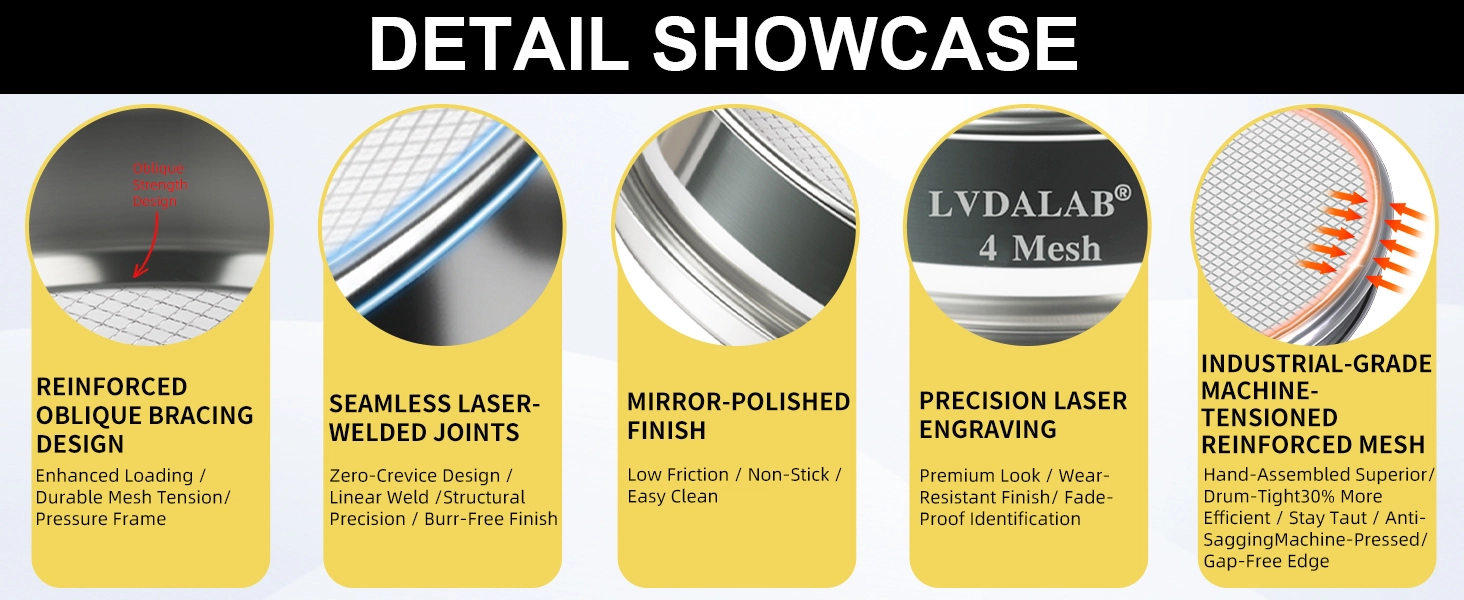

Technical features of lab sieve: seamless laser welding, mirror polished finish, and laser engraving.

💡

Standards Insight: ISO 3310-1 vs ASTM E11 Sieve Compliance

Standard analysis sieves require precise square aperture dimensions and tight wire diameter tolerances. High-precision woven wire cloth ensures reproducible particle fractions across multi-stage shaker stacks without material blinding.

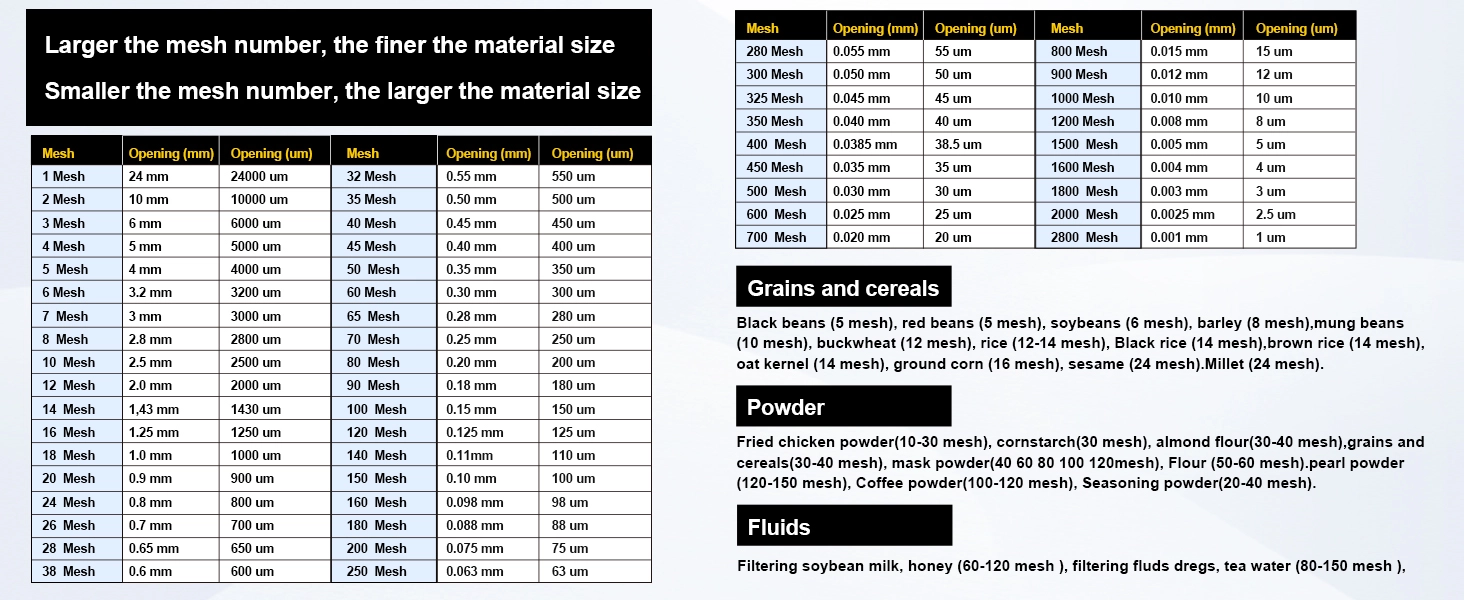

Comprehensive sieve size chart with mesh to micron conversion and recommended sizes for grains, powders, and fluids.

Ordering & Model Verification

Please verify your required aperture size (mesh or micron) and frame diameter before selecting your model in the right-side purchase panel.

Related technical categories:
Equipment |
Accessories

Diverse application grid of test sieves for soil testing, food processing, mineral grading, and chemical analysis.

Product guides and documents

full 304 stainless steel lab sieves Mmanual (PDF)

Use Cases

Acid & Corrosion ResistantHeavy Duty DesignHome Brewing & DistillingSample PreparationTest Sieves

FAQs

First, yes, our Full Stainless Steel Test Sieve features a standardized 20cm (8 inch) diameter. Consequently, it fits perfectly onto most automated lab shakers and vibratory sifters. Additionally, the stackable double-layer frame design allows you to create a multi-level grading system for complex particle analysis.

Moreover, we recommend quick drying after each cleaning cycle to maintain the mirror-polished finish. Specifically, although the device is dishwasher safe, manual drying helps preserve the industrial-grade machine tension of the mesh. Furthermore, avoiding abrasive cleaning tools will ensure the long-term reliability of your sifting equipment. In conclusion, proper maintenance will extend the service life of your instruments significantly.

Xin Tester Full Stainless Steel Test Sieve (8-Inch/20cm, 3-2800 Mesh)

Price range: $24.68 through $87.18

Extra 5% Off with code: welcome5

6–12 Month Warranty

Repair & Refund support available for most products.

Free Worldwide Shipping

Ships within 3 business days.

Taxes & Duties

Buyer responsible for local import fees.

24/7 After-Sales Support

Technical assistance & video guidance within 24h.

Xin Tester Full Stainless Steel Test Sieve (8-Inch/20cm, 3-2800 Mesh)
