Features & Details
⚡ BROAD MEASUREMENT
Safely measures DC current up to 800A and AC current up to 500A natively. Therefore, it easily handles heavy-duty industrial and automotive power circuits.
🛡️ NON-DESTRUCTIVE
Features a 30mm jaw opening designed for non-intrusive testing. Consequently, there is absolutely no need to peel insulation or destroy the existing current loop.
📈 5KHZ BANDWIDTH
Delivers highly accurate signal capturing up to 5KHz seamlessly. Specifically, it captures rapid current fluctuations in variable frequency motor drives.
🔌 UNIVERSAL BNC
Equipped with a standard BNC connector flawlessly. Ultimately, it connects directly to digital oscilloscopes and multimeters for real-time waveform analysis.
About this item
Safe Electrical Diagnostics with the AC/DC Current Clamp
Diagnosing heavy-duty automotive starters, inverter motors, and industrial power circuits presents a severe safety challenge. Specifically, severing thick power cables to connect standard multimeters in series is incredibly dangerous and time-consuming. Therefore, a professional AC/DC current clamp is absolutely essential for dedicated electrical engineers and mechanics. Consequently, the Hantek CC-800 series allows you to measure massive electrical loads safely without ever destroying the wire’s protective insulating layer.
Furthermore, rigorous non-contact electrical testing requires strict adherence to international metrology standards. Professional diagnostic laboratories explicitly rely on the NIST electrical metrology guidelines to ensure high testing accuracy during high-amperage monitoring. Thus, we engineered this AC/DC current clamp with advanced magnetic sensing technology natively. Ultimately, it guarantees your circuit diagnostics meet demanding industrial safety requirements flawlessly. Explore our complete Oscilloscope Instrument collection to secure the most reliable diagnostic equipment immediately.

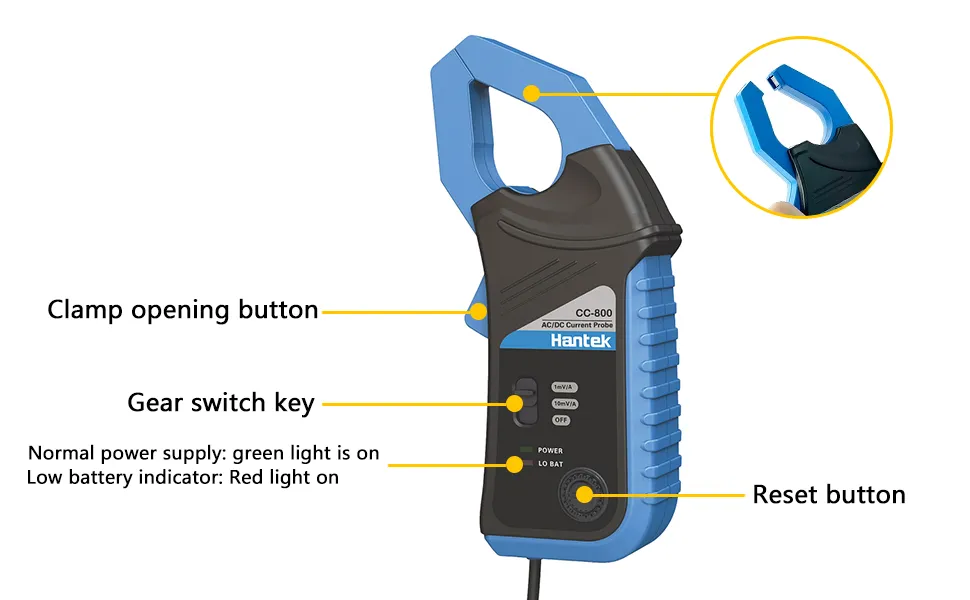

Smart Operations
Intuitive Controls & Zero Reset
Magnetic interference from ambient environments often causes false current readings before the test even begins. Thus, we equipped this device with a dedicated rotary Zero Reset button. It allows technicians to quickly clear residual magnetic fields. Additionally, the ergonomic gear switch key lets you instantly toggle between the high-sensitivity 10mV/A mode and the high-capacity 1mV/A measuring mode effortlessly.

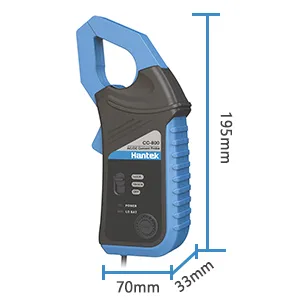

Compact Body & 30mm Jaw Opening
Maneuvering bulky tools inside a cramped automotive engine bay is incredibly frustrating. Consequently, this instrument boasts highly ergonomic dimensions for comfortable single-handed operation. The clamp features a smooth opening button and a massive 30mm measurable conductor diameter. Therefore, it easily snaps around thick main battery cables and industrial three-phase power lines safely.
Core Capabilities of the Current Probe
🔌 Universal BNC Port
Equipped with a standard BNC connector natively, allowing seamless integration with standard digital oscilloscopes.
🔋 Low Power Alert
Powered by a standard 9V battery, featuring an intelligent red LED indicator to warn operators of low power immediately.
🛡️ Non-Destructive
Provides highly accurate electromagnetic sensing without ever requiring you to cut or peel thick protective wire insulation.
Essential Equipment for Automotive Diagnostics
Investing in a reliable AC/DC current clamp is absolutely essential for maintaining strict electrical diagnostic accuracy. Our heavy-duty Hantek probes combine non-destructive testing with universal oscilloscope compatibility, making them the perfect solution for mechanics evaluating complex engine starter currents and industrial electronics malfunctions safely.
Related products:
650A oscilloscope current clamp
FAQs
Q1: How does a current clamp measure current without touching the bare wire?
A1: An AC/DC current clamp uses a built-in Hall Effect sensor inside the jaw. When current flows through a wire, it generates a magnetic field around it. The clamp safely measures this magnetic field and converts it into a proportional voltage signal that your oscilloscope or multimeter can display, meaning you never have to cut or strip the wire’s insulation.
Q2: What is the difference between the 10mV/A and 1mV/A settings?
A2: These are sensitivity gears. Use the 10mV/A setting for measuring smaller currents (1A to 40A) to get a higher resolution signal on your screen. Switch to the 1mV/A setting when testing massive currents (up to 800A DC / 500A AC) to ensure the output voltage doesn’t exceed your oscilloscope’s input limits.
Q3: Why do I need to press the Zero Reset button before measuring DC current?
A3: DC current measurement is highly sensitive to external magnetic interference, including the Earth’s magnetic field and nearby metal objects. Pressing the Zero Reset button calibrates the internal sensor to the current ambient conditions, ensuring your readings start exactly at zero for maximum accuracy.
Q4: Can I plug this directly into my digital multimeter?
A4: The Hantek CC-800 comes with a standard BNC connector, which is perfect for oscilloscopes. If your multimeter only has standard 4mm banana plug inputs, you will need a simple “BNC female to 4mm banana male adapter” to connect the clamp to your multimeter.
AC/DC Current Clamp, Hantek CC-800 800A/5KHz Oscilloscope Multimeter Probe by Xin Tester
$89.99
6–12 Month Warranty
Repair & Refund support available for most products.
Free Worldwide Shipping
Ships within 3 business days.
Taxes & Duties
Buyer responsible for local import fees.
24/7 After-Sales Support
Technical assistance & video guidance within 24h.
AC/DC Current Clamp, Hantek CC-800 800A/5KHz Oscilloscope Multimeter Probe by Xin Tester
$89.99
Features & Details
⚡ BROAD MEASUREMENT
Safely measures DC current up to 800A and AC current up to 500A natively. Therefore, it easily handles heavy-duty industrial and automotive power circuits.
🛡️ NON-DESTRUCTIVE
Features a 30mm jaw opening designed for non-intrusive testing. Consequently, there is absolutely no need to peel insulation or destroy the existing current loop.
📈 5KHZ BANDWIDTH
Delivers highly accurate signal capturing up to 5KHz seamlessly. Specifically, it captures rapid current fluctuations in variable frequency motor drives.
🔌 UNIVERSAL BNC
Equipped with a standard BNC connector flawlessly. Ultimately, it connects directly to digital oscilloscopes and multimeters for real-time waveform analysis.
Safe Electrical Diagnostics with the AC/DC Current Clamp
Diagnosing heavy-duty automotive starters, inverter motors, and industrial power circuits presents a severe safety challenge. Specifically, severing thick power cables to connect standard multimeters in series is incredibly dangerous and time-consuming. Therefore, a professional AC/DC current clamp is absolutely essential for dedicated electrical engineers and mechanics. Consequently, the Hantek CC-800 series allows you to measure massive electrical loads safely without ever destroying the wire’s protective insulating layer.
Furthermore, rigorous non-contact electrical testing requires strict adherence to international metrology standards. Professional diagnostic laboratories explicitly rely on the NIST electrical metrology guidelines to ensure high testing accuracy during high-amperage monitoring. Thus, we engineered this AC/DC current clamp with advanced magnetic sensing technology natively. Ultimately, it guarantees your circuit diagnostics meet demanding industrial safety requirements flawlessly. Explore our complete Oscilloscope Instrument collection to secure the most reliable diagnostic equipment immediately.
Smart Operations
Intuitive Controls & Zero Reset
Magnetic interference from ambient environments often causes false current readings before the test even begins. Thus, we equipped this device with a dedicated rotary Zero Reset button. It allows technicians to quickly clear residual magnetic fields. Additionally, the ergonomic gear switch key lets you instantly toggle between the high-sensitivity 10mV/A mode and the high-capacity 1mV/A measuring mode effortlessly.
Compact Body & 30mm Jaw Opening
Maneuvering bulky tools inside a cramped automotive engine bay is incredibly frustrating. Consequently, this instrument boasts highly ergonomic dimensions for comfortable single-handed operation. The clamp features a smooth opening button and a massive 30mm measurable conductor diameter. Therefore, it easily snaps around thick main battery cables and industrial three-phase power lines safely.
Core Capabilities of the Current Probe
🔌 Universal BNC Port
Equipped with a standard BNC connector natively, allowing seamless integration with standard digital oscilloscopes.
🔋 Low Power Alert
Powered by a standard 9V battery, featuring an intelligent red LED indicator to warn operators of low power immediately.
🛡️ Non-Destructive
Provides highly accurate electromagnetic sensing without ever requiring you to cut or peel thick protective wire insulation.
Essential Equipment for Automotive Diagnostics
Investing in a reliable AC/DC current clamp is absolutely essential for maintaining strict electrical diagnostic accuracy. Our heavy-duty Hantek probes combine non-destructive testing with universal oscilloscope compatibility, making them the perfect solution for mechanics evaluating complex engine starter currents and industrial electronics malfunctions safely.
Related products:
650A oscilloscope current clamp
