Sale!

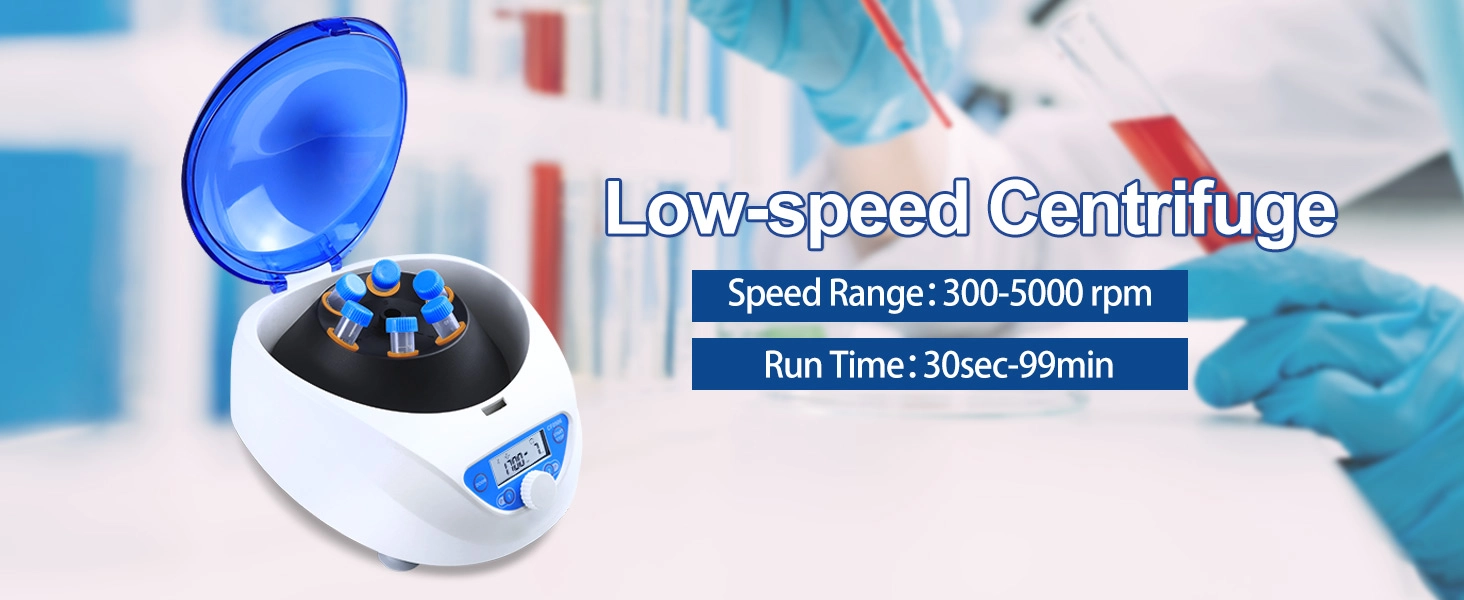

Xin Tester 5000RPM benchtop centrifuge with open blue lid and 6-place angle rotor containing tubes

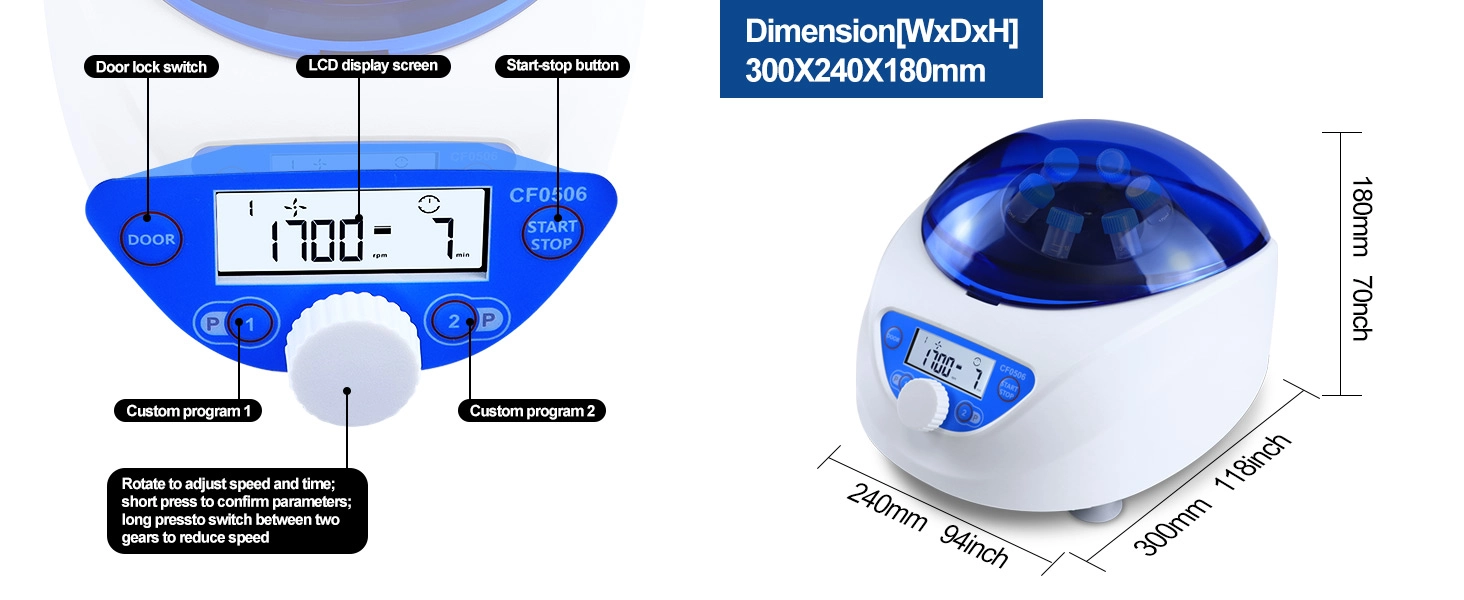

Control panel button layout guide and precise physical dimensions of the 5000RPM benchtop centrifuge

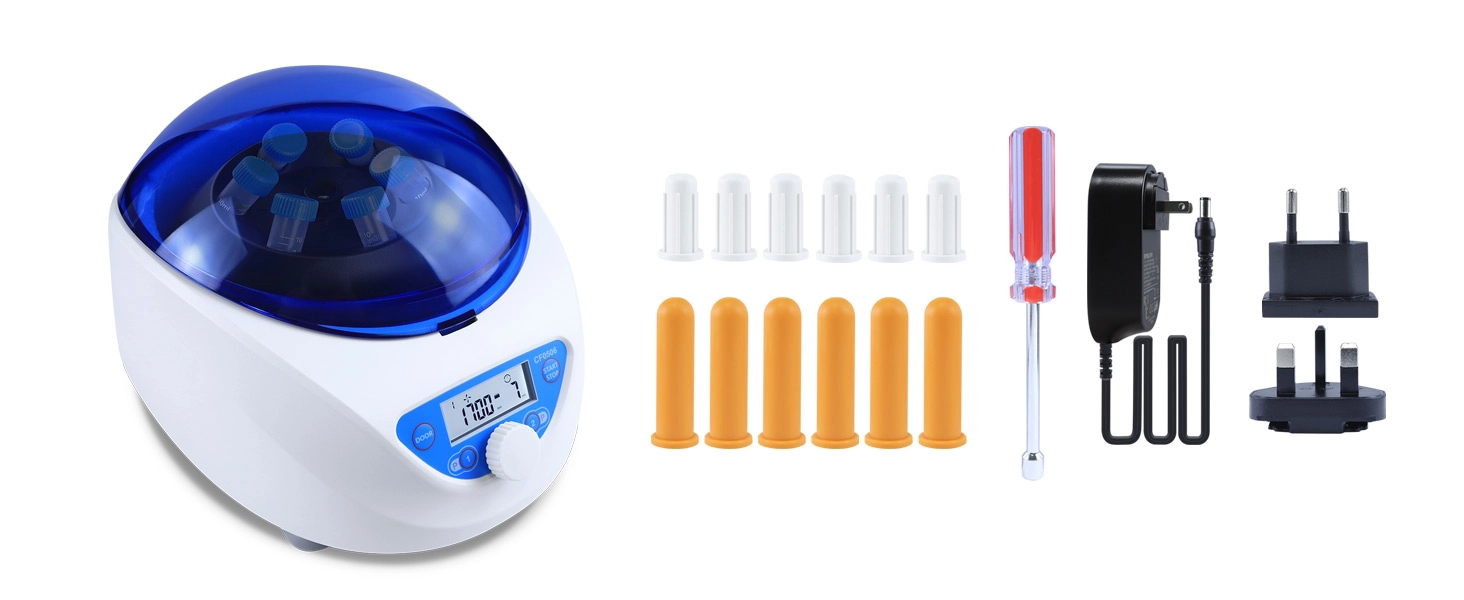

Complete accessory kit of the 5000RPM benchtop centrifuge including tube adapters, screwdriver, and power plugs

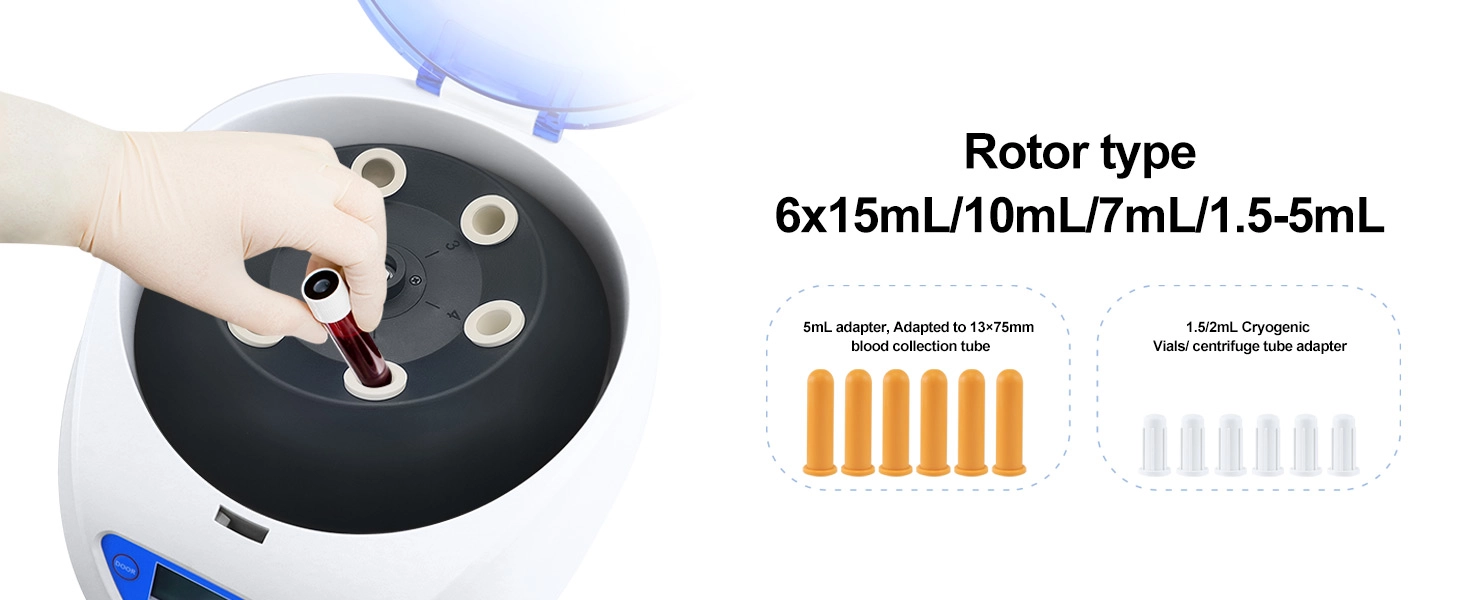

A gloved hand inserting a blood collection tube into the 6-place rotor of a low-speed centrifuge

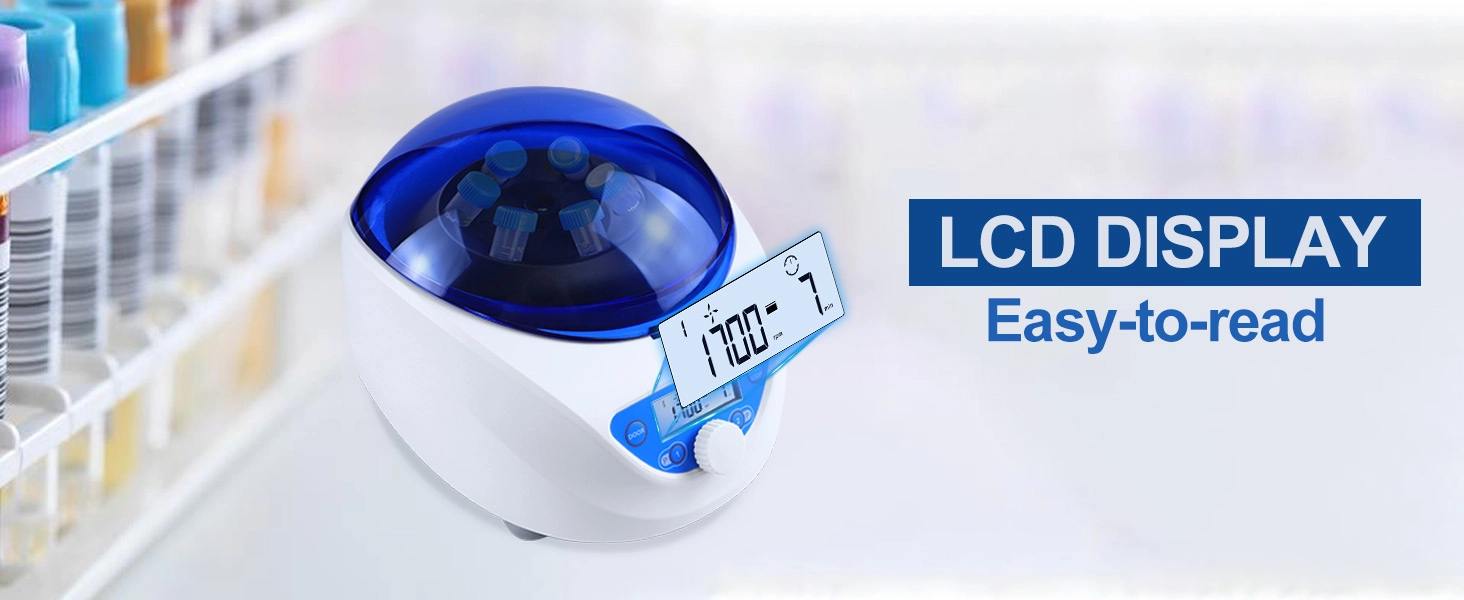

Xin Tester 5000RPM lab centrifuge with an easy-to-read LCD display screen in a modern laboratory setting

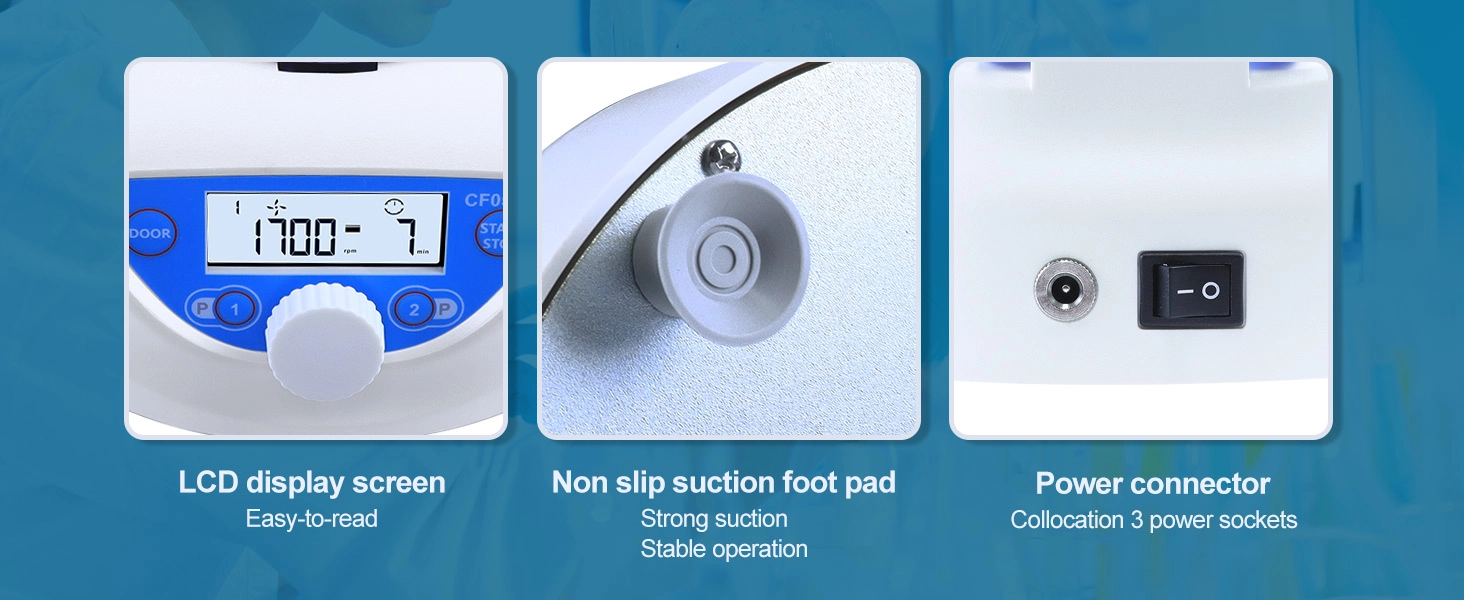

Technical details of the benchtop centrifuge showcasing non-slip suction foot pads and multiple tube adapters

The low-speed benchtop centrifuge applied in clinical laboratories, blood banks, and medical research institutes

X-ray view highlighting the maintenance-free brushless DC motor inside the 70W benchtop centrifuge

Features & Details

⚡ 5000 RPM / 2350×g	Microprocessor-regulated stepless speed from 300 to 5000 RPM (up to 2350×g RCF) for clear plasma separation and serum isolation.
🩸 PRP TUBE COMPATIBLE	Fixed-angle rotor accommodates 6×15mL centrifuge tubes or standard blood collection tubes (10mL, 7mL, 5mL, 2mL with adapters).
🔇 BRUSHLESS & QUIET	Maintenance-free brushless DC motor with dynamic vibration damping keeps operational noise strictly below 56dB(A).
🔒 SAFETY ELECTRONIC LOCK	Automatic electric lid lock prevents opening while the rotor is spinning, alongside over-speed detection and imbalance alarms.

About this item

Product specification

Feature	Description
Equipment Type	5000RPM Benchtop Centrifuge
Brand & Model	Xin Tester (Low-Speed Series)
Motor Design	Maintenance-Free Brushless DC Motor
Speed Range	300 to 5,000 RPM (Adjustable)
Maximum RCF	2,600 x g
Rotor Capacity	6 x 15mL (Includes multiple adapters for 10mL, 7mL, and 1.5-5mL tubes)
Timer Range	30 seconds to 99 minutes / Continuous Run
Acoustic Noise	≤ 56 dB

This Xin Tester 5000RPM Benchtop Centrifuge features a maintenance-free brushless DC motor and a versatile 6 x 15mL rotor capacity. Delivering a maximum RCF of 2,600 x g with ultra-quiet operation, it is the ideal low-speed centrifugation solution for clinical, medical, and research laboratories.

Clinical PRP Preparation & Laboratory Centrifugation

5000RPM Benchtop Centrifuge CF0506 (6×15mL)

Extracting clean platelet-rich plasma (PRP) or separating chemical precipitants requires reproducible centrifugal force without thermal degradation of samples. The CF0506 benchtop centrifuge delivers precise speed control up to 5000 RPM (2350×g RCF) with customizable acceleration and deceleration curves. It is widely utilized in medical clinics, veterinary practices, and chemical testing laboratories. Discover our complete line in the Lab Centrifuge catalog.

Digital Speed & RCF Conversion

The backlit LCD screen displays RPM and relative centrifugal force (RCF) simultaneously. Built-in timing mode ranges from 1 second to 99 minutes or continuous spin, ensuring strict compliance with clinical PRP separation protocols.

Aero-Dynamic Rotor Chamber

The reinforced composite rotor housing optimizes airflow dissipation to prevent chamber heat buildup during prolonged runs, safeguarding thermosensitive biological proteins and cellular viability.

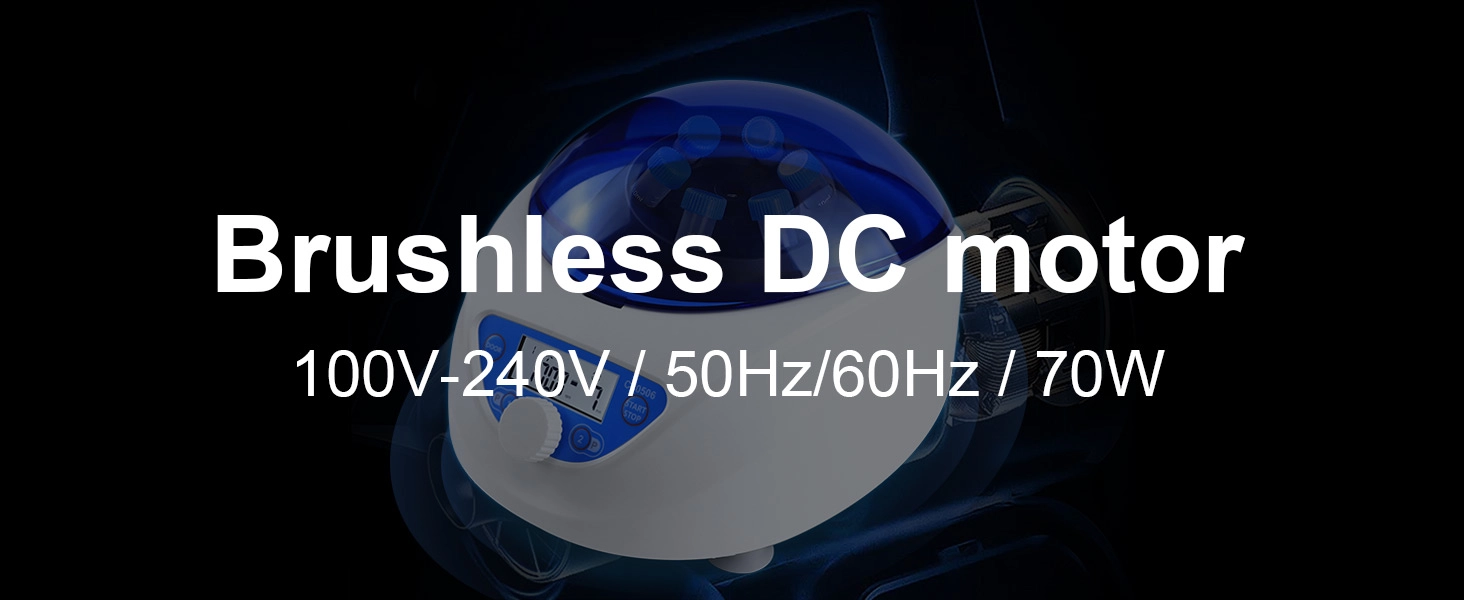

Maintenance-free Brushless DC Motor Technology

💡

Clinical Insight: PRP Separation Protocols

Platelet-Rich Plasma extraction requires gentle acceleration and steady RCF (typically 1200-1500×g for 10 minutes) to separate erythrocytes from buffy coat platelets without premature cellular lysing. The electronic lid lock and imbalance detection safeguard against tube shearing during high-speed decantation.

Ideal for Clinical and Medical Laboratory Use

Tube Adapter Inclusions & Ordering

Supplied with a 6-place 15mL fixed-angle rotor, a set of reducer sleeves for 5mL/7mL blood collection tubes, and standard power cord. Always balance opposite buckets with equal sample masses before spinning.

Related equipment collections:
Lab Centrifuge |
Lab Pipette

Use Cases

Cell Culture & Biology Heavy Duty Design High Precision High Speed Rotation

FAQs

Q1: Is this 5000RPM benchtop centrifuge suitable for PRP (Platelet-Rich Plasma) preparation?

A1: Absolutely. With its adjustable speed range of 300 to 5000 RPM and a maximum relative centrifugal force (RCF) of 2600xg, this low-speed centrifuge is perfect for clinical blood separation, including PRP, PRF, and serum extraction. The smooth deceleration and vibration-free brushless motor ensure that the separated layers remain perfectly intact.

Q2: Can I display and set parameters in G-force (RCF) instead of just RPM?

A2: Yes. The intelligent control panel features a smart toggle system that allows you to switch between RPM (Revolutions Per Minute) and RCF (Relative Centrifugal Force/G-force) instantly. This ensures you can precisely follow specific medical or chemical research protocols without needing manual calculations.

Q3: What specific test tube sizes can the rotor accommodate?

A3: The built-in 6-place angle rotor natively holds standard 15mL tubes. However, the package comes complete with two sets of custom adapters: one set for 5mL blood collection tubes (adapted to 13×75mm) and another set for 1.5mL/2mL cryogenic vials or small centrifuge tubes. It also perfectly supports standard 10mL and 7mL tubes.

Q4: Does the brushless DC motor require any daily maintenance or parts replacement?

A4: No maintenance is required. Unlike traditional brushed motors that require periodic carbon brush replacements and produce carbon dust, our premium brushless DC motor is fully enclosed and wear-free. This advanced engineering guarantees a significantly longer lifespan, cleaner laboratory conditions, and an ultra-quiet working environment under 56 dB.

Q5: What safety features are built into this machine to protect lab operators?

A5: Safety is our top priority. The centrifuge is equipped with an electronic automatic door lid-interlock system that physically prevents the lid from being opened while the rotor is spinning. Additionally, it features an automatic self-diagnosis system that sounds an alarm and cuts power instantly if it detects any system malfunctions or unbalances.

Q6: What is the maximum timer setting, and does it support continuous running?

A6: The digital timer can be adjusted precisely from 30 seconds up to 99 minutes for standard batches. For specialized or extended processing needs, you can also bypass the timer and switch the machine into continuous operation mode, which will run indefinitely until you manually press the stop button.

5000RPM Benchtop Centrifuge for Lab & PRP Blood Separation (CF0506, 6x15mL)

Original price was: $385.00.Current price is: $335.99.

Extra 5% Off with code: welcome5

6–12 Month Warranty

Repair & Refund support available for most products.

Free Worldwide Shipping

Ships within 3 business days.

Taxes & Duties

Buyer responsible for local import fees.

24/7 After-Sales Support

Technical assistance & video guidance within 24h.
