Sale!
Features & Details
⚡ High-Capacity AC/DC MeasurementThis Hantek CC-650 Current Clamp accurately measures both AC and DC currents up to 650A smoothly. Therefore, it is an essential diagnostic tool for heavy-duty electrical maintenance and power circuit testing.
🔌 Universal BNC & Banana ConnectivityThe device features a standard BNC connector for seamless oscilloscope integration perfectly. Furthermore, it easily connects to standard digital multimeters using a simple banana plug adapter.
🚗 Ideal for Automotive DiagnosticsIt captures complex waveform signals without breaking the electrical circuit safely. Specifically, automotive technicians utilize it heavily for engine starting currents and battery charging system analysis.
📊 400Hz Bandwidth PrecisionThe internal transducer operates efficiently across a broad DC to 400Hz frequency bandwidth continuously. Consequently, you receive highly reliable signal conversions directly on your test instruments.
About this item
General Specifications
| Feature | Description |
|---|---|
| Captured Conductor diameter | 30mm maximum |
| Low Battery Indicator | Red LED lighting |
| Operating Temperature | 0°C to 50°C, 70% R.H. |
| Storage Temperature | -20°C~+70°C, 80% R.H. |
| Battery type | 9V DC, NEDA 1604, 6F22, 006P |
| Battery Life | 100 hours typical with carbon-zinc |
| Weight | 250 gram typical |
| Dimensions | 195 mm (H) x 70 mm (W) x 33 mm (D) |

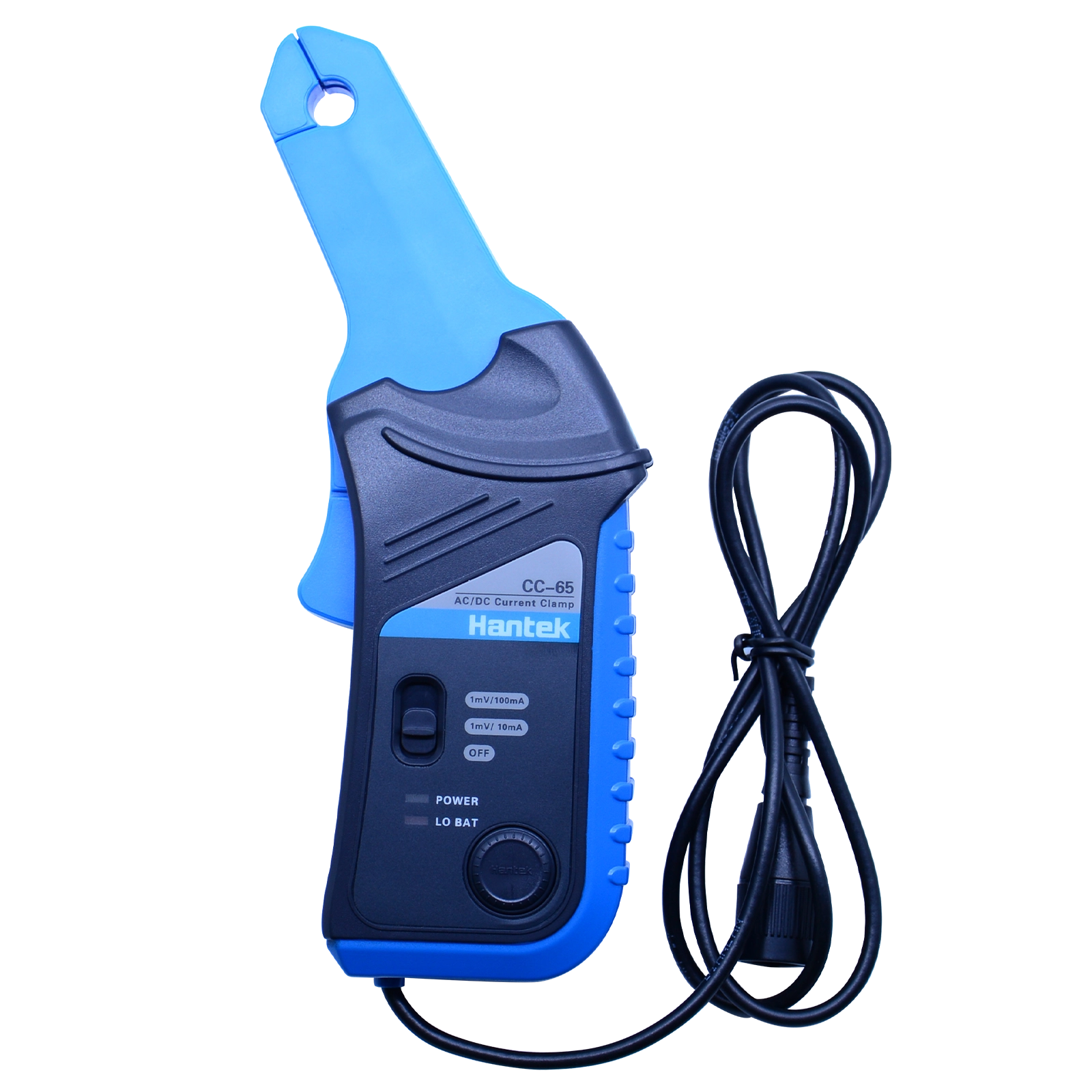

| Output | 1 meter wire with a BNC connector |
Professional Signal Diagnostics & Waveform Analysis
Securing a highly reliable Hantek CC-650 Current Clamp is absolutely essential for proactive electrical troubleshooting safely. Therefore, we proudly supply this high-capacity diagnostic tool to handle your most rigorous waveform analysis tasks properly. Specifically, it functions as an advanced transducer, allowing your oscilloscope to measure heavy electrical currents without breaking the circuit efficiently. Consequently, it prevents dangerous power disruptions and costly mechanical downtime entirely. Explore our comprehensive collection of professional measuring instruments to equip your engineering team completely today.
Core Advantages of the Hantek Probe
⚡
High-Capacity AC/DC Current Measurement
Modern electrical audits demand versatile diagnostic capabilities consistently. First, this Hantek CC-650 Current Clamp executes precise AC and DC current readings flawlessly. Furthermore, it supports a massive measurement range up to 650A smoothly. As a result, users capture highly accurate power data without any operational guesswork.
🔌
Universal BNC Connectivity
Equipment compatibility remains the top priority during complex signal diagnostics properly. Specifically, the device boasts a standard BNC connector securely. Therefore, it allows operators to connect the probe directly to any standard oscilloscope effortlessly. Additionally, you can easily adapt it for digital multimeters using a simple banana plug accessory.
📊
Broad 400Hz Frequency Bandwidth
Different power systems generate unique electronic waveforms during heavy operations. First, our transducer features an impressive operating bandwidth reaching up to 400Hz smoothly. Subsequently, this allows technicians to monitor both low and mid-frequency signals accurately. Consequently, you can rely on this tool to capture precise signal conversions entirely.
🚗
Ideal for Automotive Diagnostics
Deploying a rugged current probe streamlines heavy automotive maintenance significantly. Specifically, certified mechanics utilize it heavily for engine starting currents and battery charging system analysis safely. Additionally, the non-intrusive jaw design solves complex electrical problems without cutting wires effectively. Ultimately, investing in this professional equipment enhances your overall workshop productivity perfectly.
FAQs
Q1: Can I connect the Hantek CC-650 directly to a standard digital multimeter?
A: Yes, you can. While the CC-650 comes with a standard BNC connector designed for oscilloscopes, you can easily connect it to a standard digital multimeter by using a simple BNC-to-Banana plug adapter (often sold separately).
Q2: Does this clamp require breaking the electrical circuit to measure current?
A: No, that is the primary advantage of a current clamp. The transducer allows you to measure AC and DC current non-intrusively. You simply open the jaw, clamp it around a single conductive wire, and safely read the waveform or value on your connected device.
Q4: Does the clamp need an external power source?

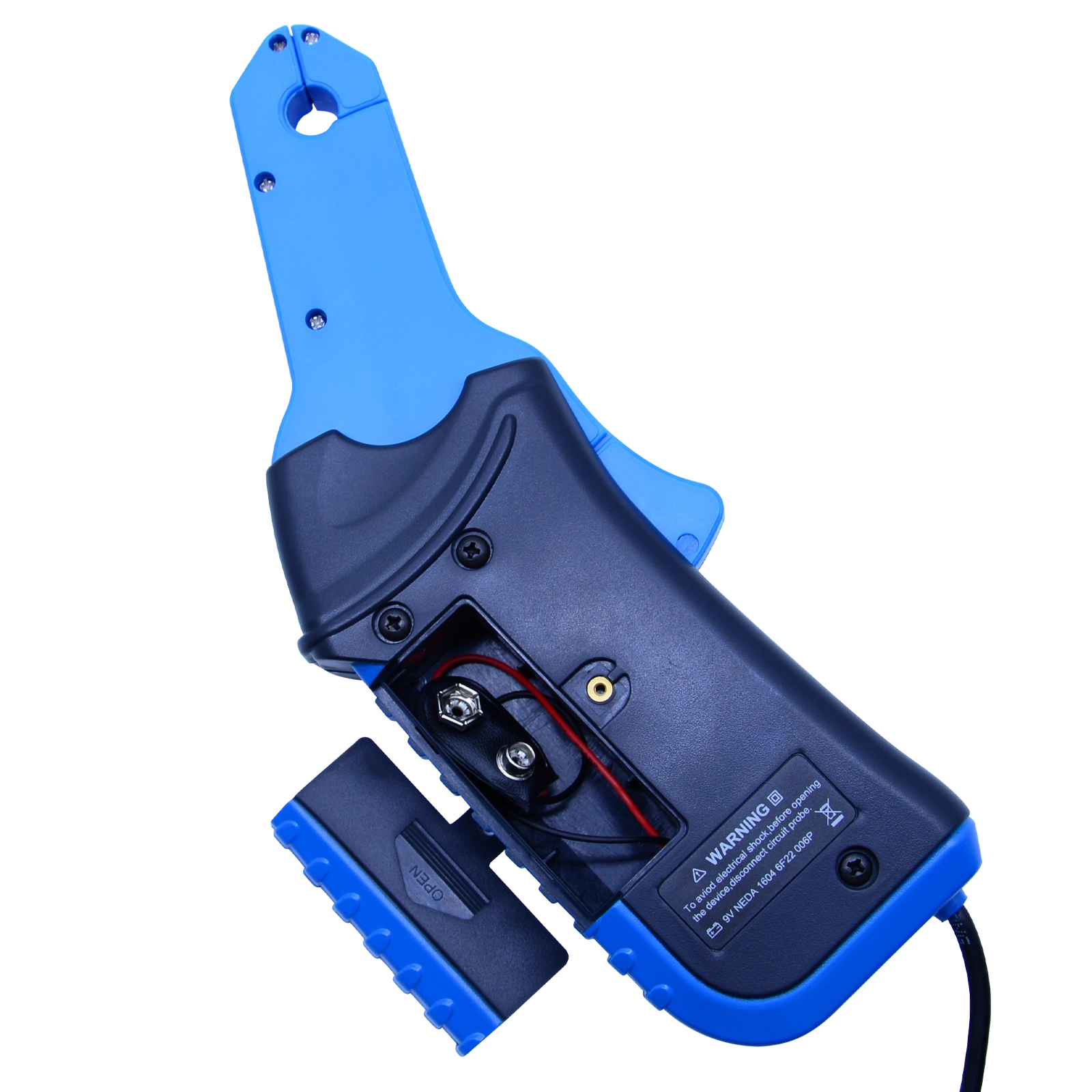

A: Yes, the Hantek CC-650 is actively powered to ensure precise signal conversion. It requires one standard 9V battery (6F22) to operate. It also features a red “Low Bat” LED indicator that will alert you when the battery power needs to be replaced.
Hantek CC-650 AC/DC Current Clamp Probe | 650A Oscilloscope & Multimeter Connector
Original price was: $95.99.$88.99Current price is: $88.99.
6–12 Month Warranty
Repair & Refund support available for most products.
Free Worldwide Shipping
Ships within 3 business days.
Taxes & Duties
Buyer responsible for local import fees.
24/7 After-Sales Support
Technical assistance & video guidance within 24h.
Reviews
There are no reviews yet
